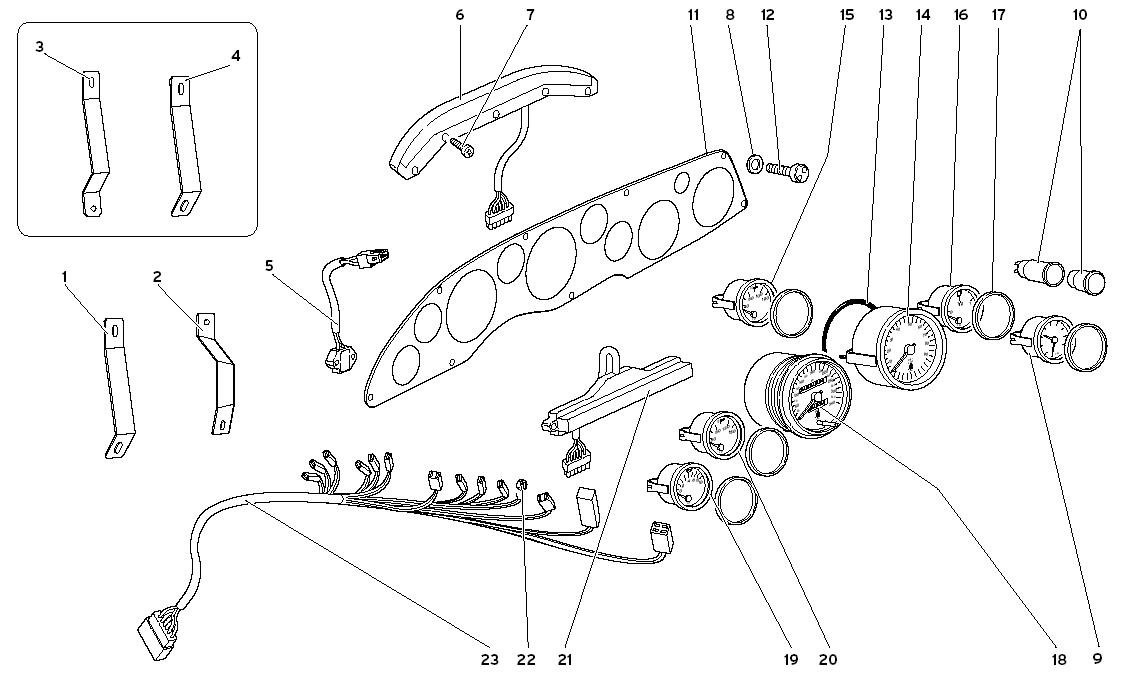

DASHBOARD INSTRUMENTS

Go to Split View

DASHBOARD INSTRUMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 69003051 *Qty: 1 LEFT BRACKET (STAFFA SX) Call
Location: 2 Prev | Next Part: 69003050 *Qty: 1 RIGHT BRACKET (STAFFA DX) Call
Location: 3 Prev | Next Part: 69004102 *Qty: 1 LEFT BRACKET (74 STAFFA SX) Call
Location: 3 Prev | Next Part: 69004102 *Qty: 1 LEFT BRACKET (76 STAFFA SX) Call
Location: 4 Prev | Next Part: 69003051 *Qty: 1 RIGHT BRACKET (76 STAFFA DX) Call
Location: 4 Prev | Next Part: 69003051 *Qty: 1 RIGHT BRACKET (74 STAFFA DX) Call
Location: 5 Prev | Next Part: 4526662 *Qty: 1 TEMPERATURE SENS. (SENSORE TEMPERATURA ESTERNA) $221.38
Location: 6 Prev | Next Part: 60002492 *Qty: 1 WARNING LIGHTS (GRUPPO SPIE) $381.56
Location: 7 Prev | Next Part: 8700449 *Qty: 5 SCREW (VITE) $0.90
Location: 8 Prev | Next Part: 8220306 *Qty: 9 SPRING (MOLLA) $3.41
Location: 9 Prev | Next Part: 60002603 *Qty: 1 CLOCK (OROLOGIO) $639.51
Location: 10 Prev | Next Part: 5933188 *Qty: 1 CIGAR LIGHTER (ACCENDISIGARI) $20.92
Location: 11 Prev | Next Part: 60002617 *Qty: 1 INSTRUMENT PANEL (76 PLANCIA PORTASTRUMENTI) $359.44
Location: 11 Prev | Next Part: 60002617 *Qty: 1 INSTRUMENT PANEL (74 PLANCIA PORTASTRUMENTI) $359.44
Location: 11 Prev | Next Part: 60002596 *Qty: 1 INSTRUMENT PANEL (PLANCIA PORTASTRUMENTI) $359.44
Location: 12 Prev | Next Part: 8700347 *Qty: 9 SCREW (VITE) $37.57
Location: 13 Prev | Next Part: 8609802 *Qty: 1 RUBBER RING (ANELLO GOMMA) $0.90
Location: 14 Prev | Next Part: 60002598 *Qty: 1 REVOLUTION COUNT. (CONTAGIRI) $888.03
Location: 15 Prev | Next Part: 60002601 *Qty: 1 WATER TEMP. GAUGE (INDICATORE TEMPERATURA ACQUA) $144.08
Location: 16 Prev | Next Part: 60002602 *Qty: 1 FUEL LEVEL GAUGE (INDICATORE LIVELLO CARBURANTE) $556.92
Location: 17 Prev | Next Part: 6030886 *Qty: 5 SPACER (DISTANZIALE) $45.16
Location: 18 Prev | Next Part: 60002604 *Qty: 1 SPEEDOMETER-MILES (74 CONTAMIGLIA) $703.42
Location: 18 Prev | Next Part: 60002597 *Qty: 1 SPEEDOMETER - KM (CONTACHILOMETRI) $2,580.32
Location: 18 Prev | Next Part: 60002604 *Qty: 1 SPEEDOMETER-MILES (71 CONTAMIGLIA) $703.42
Location: 19 Prev | Next Part: 60002599 *Qty: 1 OIL PRESSURE GAUG (INDICATORE PRESSIONE OLIO) $144.08
Location: 20 Prev | Next Part: 60002600 *Qty: 1 OIL TEMPERA. GAUGE (INDICATORE TEMPERATURA OLIO) $557.76
Location: 21 Prev | Next Part: 60002493 *Qty: 1 WARNING LIGHTS (GRUPPO SPIE) $381.56
Location: 22 Prev | Next Part: 8200406 *Qty: 2 NUT (DADO) $0.90
Location: 23 Prev | Next Part: 61002126 *Qty: 1 ELECT CABLE (CABLAGGIO CRUSCOTTO) $244.03

* Quantity shown indicates the number of pieces used in the diagram.
