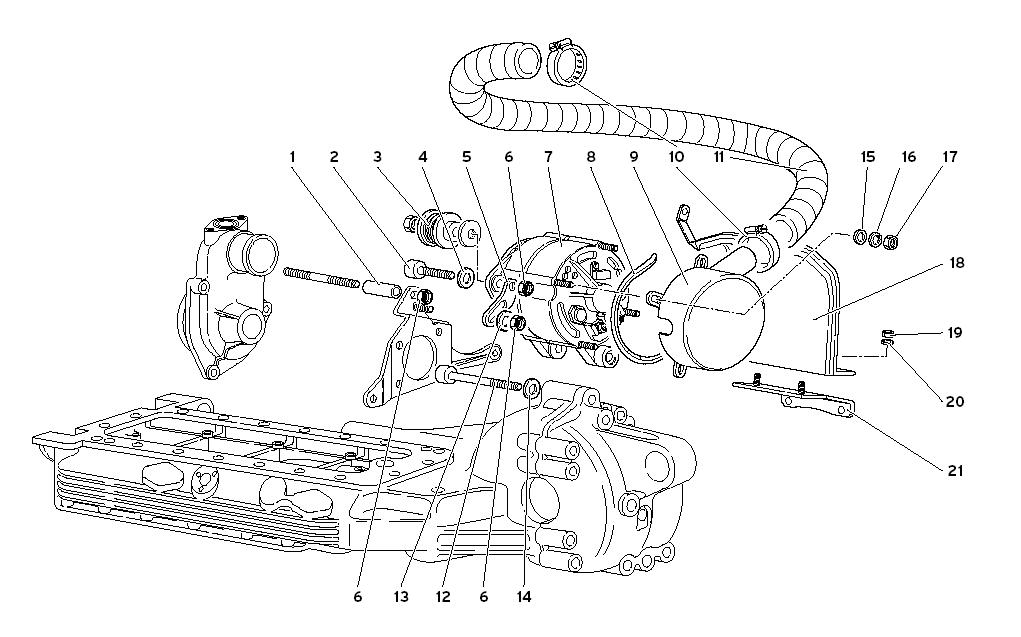

ALTERNATOR

Go to Split View

ALTERNATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 18 Prev | Next Part: 16004654 *Qty: 1 PLATE (96 PARATIA) $280.37
Location: 18 Prev | Next Part: 16004654 *Qty: 1 PLATE (71 PARATIA) $280.37
Location: - Prev | Next Part: *Qty: 0 FROM ENGINE N? 2220 Call
Location: 1 Prev | Next Part: 4031496 *Qty: 1 SPACER (DISTANZIALE) $19.07
Location: 2 Prev | Next Part: 8701017 *Qty: 1 SCREW (VITE) $0.90
Location: 3 Prev | Next Part: 1636515 *Qty: 1 PULLEY (PULEGGIA) $1,004.17
Location: 4 Prev | Next Part: 8401006 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 5 Prev | Next Part: 16002730 *Qty: 1 BRACKET (STAFFA) $25.97
Location: 6 Prev | Next Part: 8201008 *Qty: 3 NUT (DADO) $0.90
Location: 7 Prev | Next Part: 1625271 *Qty: 1 ALTERNATOR (ALTERNATORE) $2,722.08
Location: 8 Prev | Next Part: 1625920 *Qty: 1 GASKET (GUARNIZIONE) $126.29
Location: 9 Prev | Next Part: 1635962 *Qty: 1 CONVEYOR (CONVOGLIATORE) $155.79
Location: 10 Prev | Next Part: 8833802 *Qty: 2 STRAP (FASCETTA) $14.31
Location: 11 Prev | Next Part: 1635963 *Qty: 1 PIPE (TUBO) Call
Location: 12 Prev | Next Part: 8701022 *Qty: 1 SCREW (VITE) $1.44
Location: 13 Prev | Next Part: 8401006 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 14 Prev | Next Part: 8411002 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 15 Prev | Next Part: 8400506 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 16 Prev | Next Part: 8410502 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 17 Prev | Next Part: 8200501 *Qty: 4 NUT (DADO) $0.90
Location: 18 Prev | Next Part: 1635960 *Qty: 1 PLATE (96 PARATIA) $739.00
Location: 18 Prev | Next Part: 1635960 *Qty: 1 PLATE (71 PARATIA) $739.00
Location: 19 Prev | Next Part: 8200614 *Qty: 2 NUT (96 DADO) $0.90
Location: 19 Prev | Next Part: 8200614 *Qty: 2 NUT (71 DADO) $0.90
Location: 20 Prev | Next Part: 8400607 *Qty: 2 WASHER (96 RONDELLA) $0.90
Location: 20 Prev | Next Part: 8400607 *Qty: 2 WASHER (71 RONDELLA) $0.90
Location: 21 Prev | Next Part: 1635961 *Qty: 1 BRACKET (96 STAFFA) $75.10
Location: 21 Prev | Next Part: 1635961 *Qty: 1 BRACKET (71 STAFFA) $75.10

* Quantity shown indicates the number of pieces used in the diagram.
