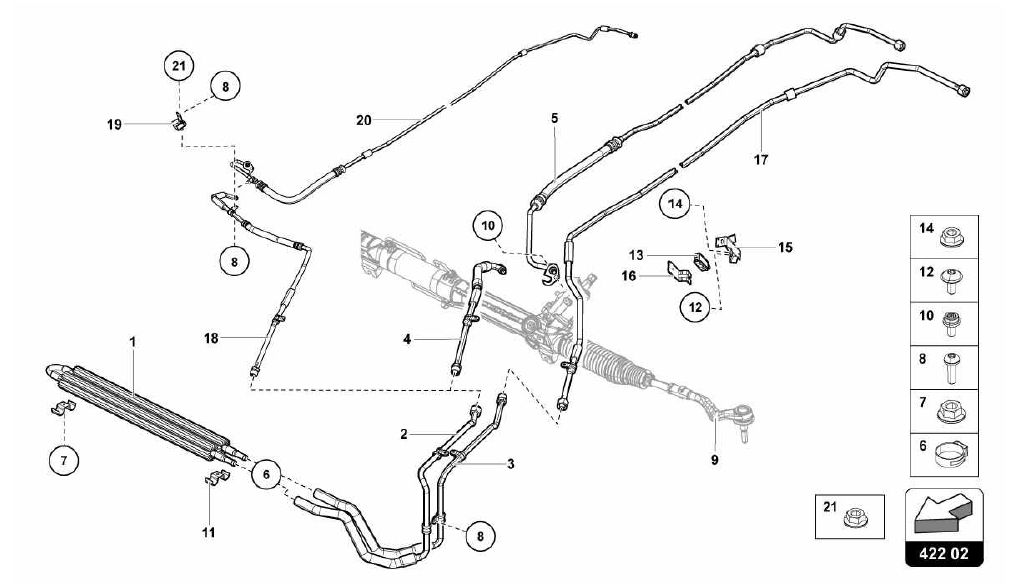

422.02.00-OIL COOLER - POWER STEERING

Go to Split View

422.02.00-OIL COOLER - POWER STEERING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400422886A *Qty: 1 OIL COOLER $416.77
Location: 2 Prev | Next Part: 471422898B *Qty: 1 RETURN HOSE $99.72
Location: 3 Prev | Next Part: 470422857F *Qty: 1 FEED HOSE $124.21
Location: 4 Prev | Next Part: 471422891C *Qty: 1 RETURN HOSE (FOR GSX CARS) $216.66
Location: 5 Prev | Next Part: 471422893F *Qty: 1 RETURN HOSE (FROM VIN CLA00116) $344.23
Location: 5 Prev | Next Part: 471422893C *Qty: 1 RETURN HOSE (UNTIL THE VIN CLA00115) $344.23
Location: 6 Prev | Next Part: N10197601 *Qty: 2 CLIP $1.01
Location: 7 Prev | Next Part: N10017307 *Qty: 2 NUT M5 $0.90
Location: 8 Prev | Next Part: N10124304 *Qty: 5 SCREW M6X20 $0.90
Location: 9 Prev | Next Part: *Qty: 0 POWER STEERING RACK (SEE TABLE 422.01.00) Call
Location: 10 Prev | Next Part: N10664901 *Qty: 1 SCREW M8X16 $0.90
Location: 11 Prev | Next Part: 400422871D *Qty: 2 BRACKET $5.62
Location: 12 Prev | Next Part: N90898101 *Qty: 3 SCREW M6X14 $1.74
Location: 13 Prev | Next Part: 420201190A *Qty: 1 CLAMP Call
Location: 14 Prev | Next Part: N10017304 *Qty: 1 NUT M5 $0.90
Location: 15 Prev | Next Part: 470422871 *Qty: 1 BRACKET $18.37
Location: 16 Prev | Next Part: 420611793A *Qty: 1 BRACKET $3.47
Location: 17 Prev | Next Part: 470422859E *Qty: 1 FEED HOSE (FROM VIN CLA00111) $217.95
Location: 17 Prev | Next Part: 470422859C *Qty: 1 FEED HOSE (UNTIL THE VIN CLA00110) $217.95
Location: 18 Prev | Next Part: *Qty: 0 RETURN HOSE (FOR GDX CARS) Call
Location: 19 Prev | Next Part: *Qty: 0 BRACKET (FOR GDX CARS) Call
Location: 20 Prev | Next Part: *Qty: 0 RETURN HOSE (FOR GDX CARS) Call
Location: 21 Prev | Next Part: *Qty: 0 NUT M6 (FOR GDX CARS) Call

* Quantity shown indicates the number of pieces used in the diagram.
