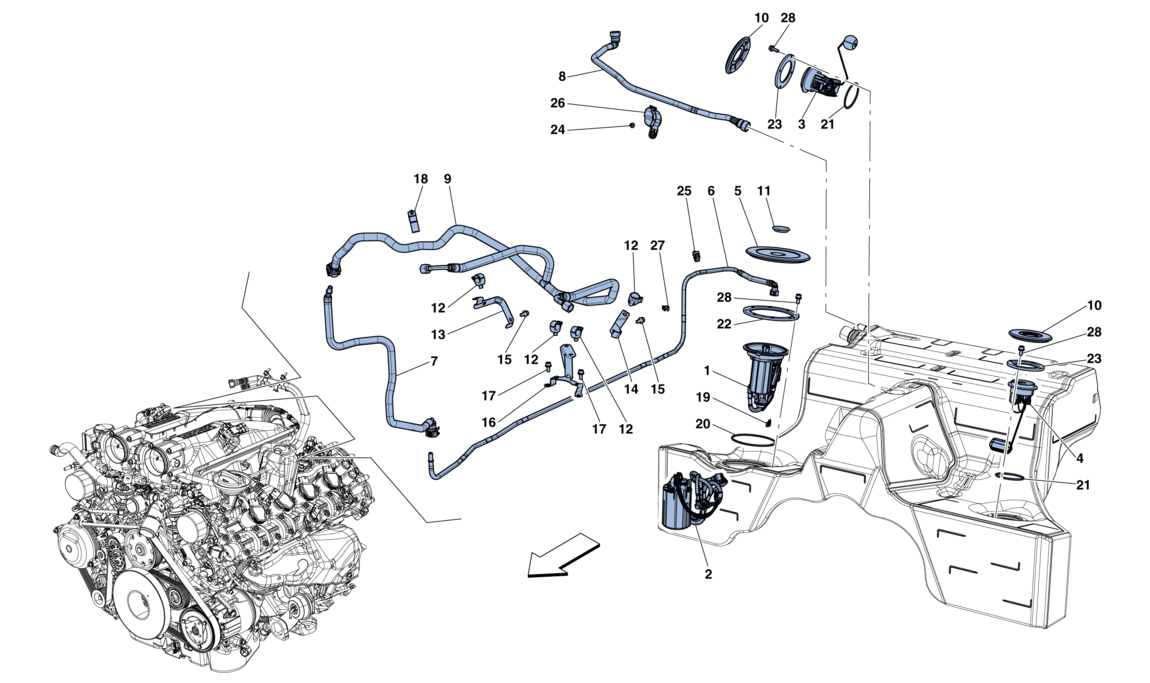

FUEL PUMP AND CONNECTOR PIPES

Location Part # Quantity* Description Price Add To Cart
1 282783 1 FUEL PUMP WITH FILTER $1,632.57
2 270125 1 FUEL PUMP $1,814.07
3 273540 1 COMPL. INCLINATION SENSOR $2,356.34
4 275550 1 COMPL. FUEL LEVEL SENSOR Unavailable
5 250481 1 INSPECTION CAP $47.22
6 300838 1 FUEL DELIVERY PIPE $68.12
7 300839 1 FUEL DELIVERY PIPE Unavailable
8 295403 1 TANK PIPE -Applicable until depletion- Unavailable
8 311152 1 TANK PIPE -Applicable after depletion of 295403- $141.44
9 304863 1 FUEL PIPE $298.30
10 250480 2 INSPECTION CAP $27.22
11 14507187 1 CAP $8.77
12 198253 4 CLIP $4.55
13 303789 1 RH BRACKET $22.88
14 301717 1 LH BRACKET $16.53
15 231616 2 SCREW Unavailable
16 304212 1 BRACKET $34.32
17 231616 2 SCREW Unavailable
18 257273 1 CLIP $1.42
19 238688 1 CONNECTOR $51.72
20 239412 1 O-RING Superseded
21 239413 2 O-RING $6.39
22 275998 1 FASTENER RING $75.23
23 276001 2 FASTENER RING $303.65
24 14058419 1 NUT $1.02
25 262559 1 CLIP Unavailable
26 304380 1 CLIP $4.13
27 235682 1 CLIP Unavailable
28 256323 16 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
