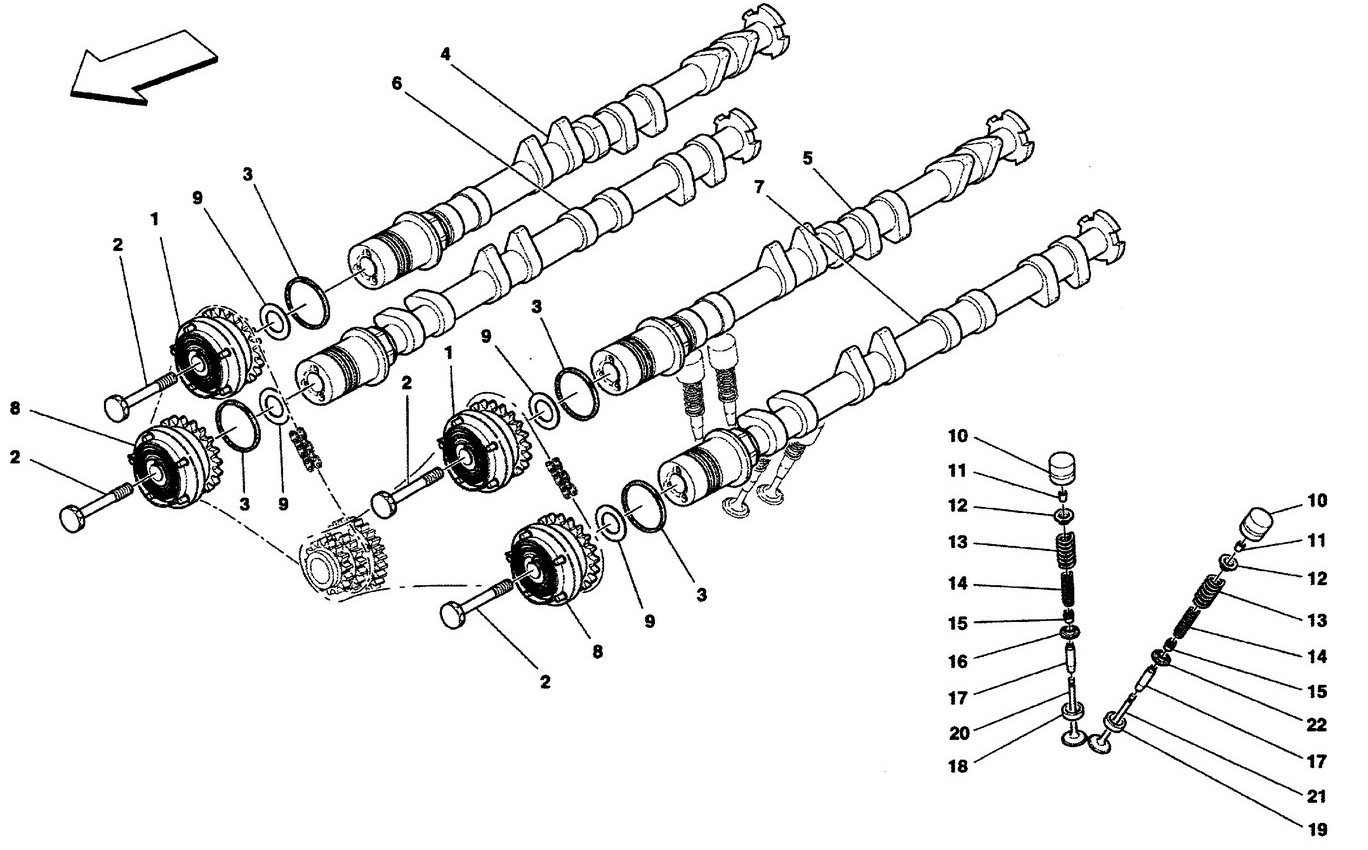

TIMING-SHAFTS AND VALVES

Location Part # Quantity* Description Price Add To Cart
1 241906 2 INDUCTION PHASE VARIATOR $494.75
2 248022 4 SCREW Unavailable
3 216301 4 SEAL RING $7.38
4 240995 1 Rh. Induction Timing Shaft $288.91
5 240996 1 Lh. Induction Timing Shaft $275.17
6 250173 1 Rh. Exhaust Timing Shaft $263.96
7 250174 1 Lh. Exhaust Timing Shaft $263.96
8 248020 2 EXHAUST PHASE VARIATOR $496.88
9 240559 4 DIAMOND WASHER $11.27
10 194700 32 HYDRAULIC TAPPET FOR VALVE $62.85
11 179763 64 COTTER FOR VALVE SPRING Unavailable
12 194713 32 UPPER CUP $10.01
13 197900 32 OUTER SPRING FOR VALVE RETURN $7.21
14 197901 32 INNER SPRING FOR VALVE RETURN $5.12
15 221473 32 OIL RING $1.75
16 194718 16 LOWER CUP $55.91
17 6213498 32 INTAKE VALVE GUIDE Unavailable
18 6222847 16 INTAKE VALVE SEAT $9.38
19 6222848 16 EXHAUST VALVE SEAT $10.07
20 198581 16 INTAKE VALVE $16.02
21 198582 16 EXHAUST VALVE $38.41
22 246328 16 EXHAUST LOWER SPACER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
