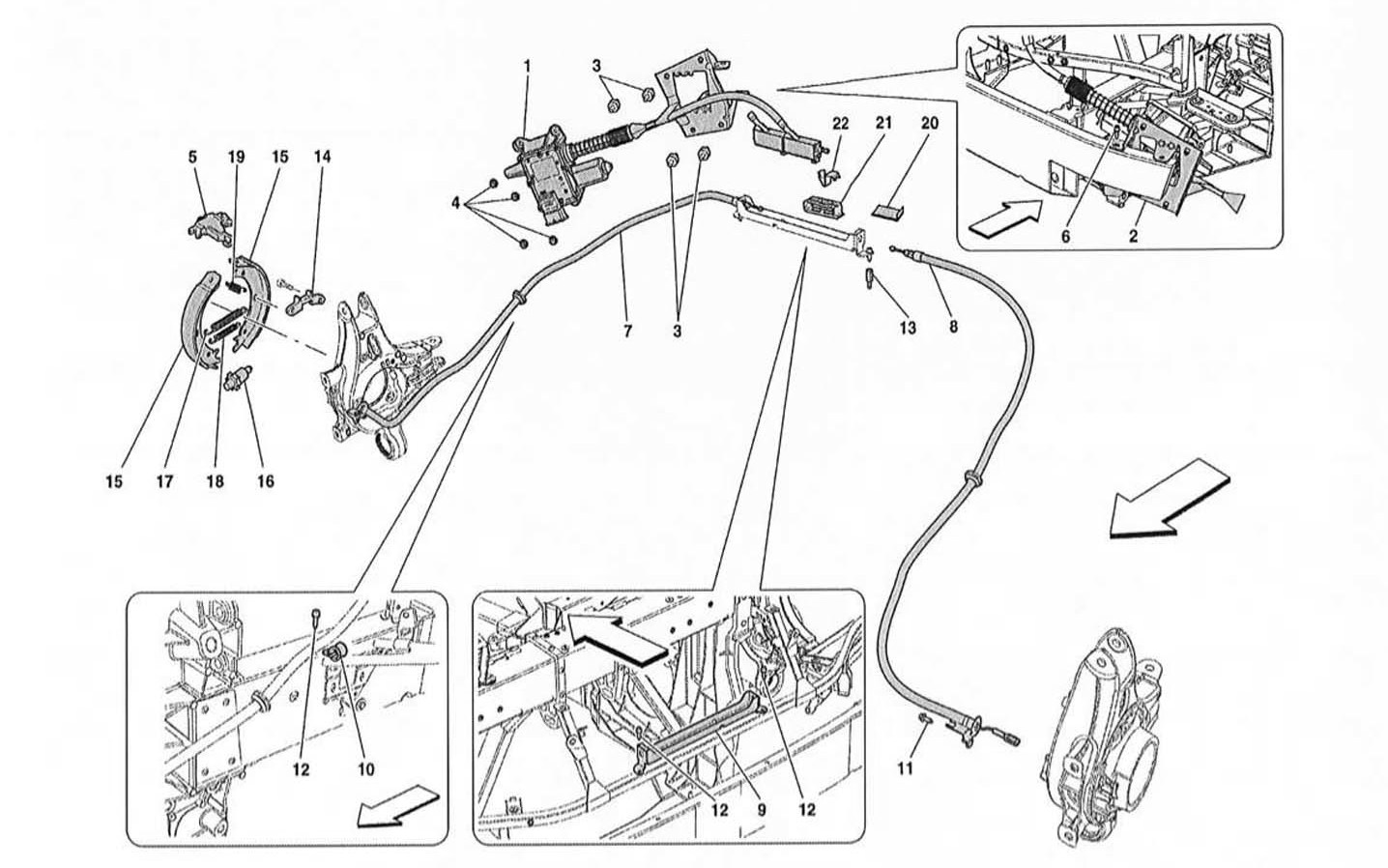

HAND-BRAKE CONTROL

Go to Split View

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 281141 *Qty: 1 COMPL. ELECTRONIC ACTUATOR Call
Location: 2 Prev | Next Part: 260185 *Qty: 1 ACTUATOR FASTENER BRACKET $134.83
Location: 3 Prev | Next Part: 225408 *Qty: 4 PLUG $8.68
Location: 4 Prev | Next Part: 14059214 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 254156 *Qty: 2 COMPL. PARKING BRAKE LEVER $146.89
Location: 6 Prev | Next Part: 11568124 *Qty: 4 SCREW $1.27
Location: 7 Prev | Next Part: 257912 *Qty: 1 RH PARKING BRAKE CABLE $183.43
Location: 8 Prev | Next Part: 257913 *Qty: 1 LH PARKING BRAKE CABLE $183.43
Location: 9 Prev | Next Part: 283126 *Qty: 1 EQUALISER BRACKET Call
Location: 10 Prev | Next Part: 10441290 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 11 Prev | Next Part: 11568027 *Qty: 2 SCREW $2.01
Location: 12 Prev | Next Part: 11568124 *Qty: 4 SCREW $1.27
Location: 13 Prev | Next Part: 178772 *Qty: 2 SPACER STUD $11.00
Location: 14 Prev | Next Part: 240953 *Qty: 2 GUIDE PLATE $12.10
Location: 15 Prev | Next Part: 240948 *Qty: 4 PARKING BRAKE SHOE $188.87
Location: 16 Prev | Next Part: 186572 *Qty: 2 ADJUSTER FOR PARKING BRAKE $79.05
Location: 17 Prev | Next Part: 240947 *Qty: 2 BRAKE SHOE RETURN SPRING $14.97
Location: 18 Prev | Next Part: 243123 *Qty: 2 BRAKE SHOE RETURN SPRING $14.97
Location: 19 Prev | Next Part: 240952 *Qty: 4 SHOE FASTENER SPRING $11.98
Location: 20 Prev | Next Part: 239924 *Qty: 1 RETAINER TAB $6.85
Location: 21 Prev | Next Part: 245964 *Qty: 1 CAGE $13.69
Location: 22 Prev | Next Part: 245162 *Qty: 1 CLIP $5.04

* Quantity shown indicates the number of pieces used in the diagram.
