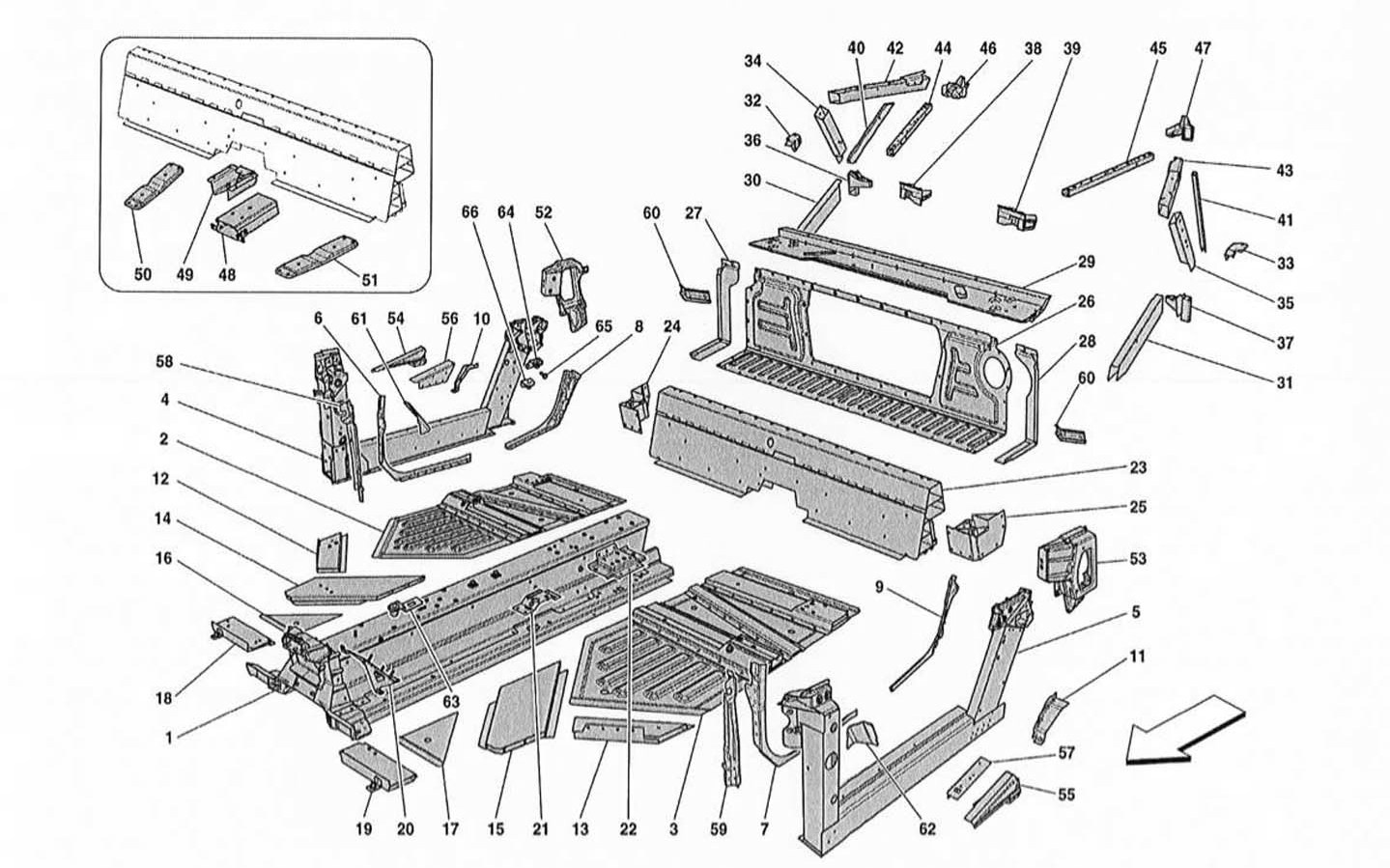

CENTRAL SIDE ELEMENTS AND PLATES

Go to Split View

CENTRAL SIDE ELEMENTS AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 275282 *Qty: 1 COMPL. TUNNEL -Not available for sale- -Not for RHD- Call
Location: 1 Prev | Next Part: 277794 *Qty: 1 COMPL. TUNNEL -Not available for sale- -Applicable for RHD- Call
Location: 2 Prev | Next Part: 271556 *Qty: 1 COMPL. RH HALF FLOOR PANEL -Not available for sale- Call
Location: 3 Prev | Next Part: 271555 *Qty: 1 COMPL. LH HALF FLOOR PANEL -Not available for sale- Call
Location: 4 Prev | Next Part: 285739 *Qty: 1 RH SILL -Not available for sale- -Applicable for EU GS Call
Location: 4 Prev | Next Part: 285739 *Qty: 1 RH SILL -Not available for sale- -Applicable for USA Call
Location: 4 Prev | Next Part: 285739 *Qty: 1 RH SILL -Not available for sale- -Applicable for USA Call
Location: 4 Prev | Next Part: 288642 *Qty: 1 RH SILL -Not available for sale- -Applicable for RHD- Call
Location: 5 Prev | Next Part: 285740 *Qty: 1 LH SILL -Not available for sale- -Not for RHD- Call
Location: 5 Prev | Next Part: 288643 *Qty: 1 LH SILL -Not available for sale- -Applicable for RHD- Call
Location: 6 Prev | Next Part: 82992100 *Qty: 1 FRONT RH ENDPIECE Call
Location: 7 Prev | Next Part: 82992200 *Qty: 1 FRONT LH ENDPIECE Call
Location: 8 Prev | Next Part: 83815000 *Qty: 1 REAR RH ENDPIECE Call
Location: 9 Prev | Next Part: 83814700 *Qty: 1 REAR LH ENDPIECE Call
Location: 10 Prev | Next Part: 249925 *Qty: 1 FRONT FASTENER BRACKET FOR RH FLANK Call
Location: 11 Prev | Next Part: 249924 *Qty: 1 FRONT FASTENER BRACKET FOR LH FLANK Call
Location: 12 Prev | Next Part: 280494 *Qty: 1 RH BRACE Call
Location: 13 Prev | Next Part: 280493 *Qty: 1 LH BRACE -Not for RHD- Call
Location: 13 Prev | Next Part: 280497 *Qty: 1 LH BRACE -Applicable for RHD- Call
Location: 14 Prev | Next Part: 280496 *Qty: 1 RH BRACE BETWEEN TORQUE BOX AND TUNNEL -Not for RHD- Call
Location: 14 Prev | Next Part: 280525 *Qty: 1 RH BRACE BETWEEN TORQUE BOX AND TUNNEL -Applicable for RHD- Call
Location: 15 Prev | Next Part: 280495 *Qty: 1 LH BRACE BETWEEN TORQUE BOX AND TUNNEL -Not for RHD- Call
Location: 15 Prev | Next Part: 280524 *Qty: 1 LH BRACE BETWEEN TORQUE BOX AND TUNNEL -Applicable for RHD- Call
Location: 16 Prev | Next Part: 248977 *Qty: 1 FRONT RH FLOOR ENDPIECE Call
Location: 17 Prev | Next Part: 248976 *Qty: 1 FRONT LH FLOOR ENDPIECE Call
Location: 18 Prev | Next Part: 246743 *Qty: 1 FRONT RH CROSS MEMBER Call
Location: 19 Prev | Next Part: 246742 *Qty: 1 FRONT LH CROSS MEMBER -Not for RHD- Call
Location: 19 Prev | Next Part: 263695 *Qty: 1 FRONT LH CROSS MEMBER -Applicable for RHD- Call
Location: 20 Prev | Next Part: 256175 *Qty: 1 ACCELERATOR PEDAL FASTENER BRACKET -Not for RHD- Call
Location: 20 Prev | Next Part: 266326 *Qty: 1 ACCELERATOR PEDAL FASTENER BRACKET -Applicable for RHD- Call
Location: 21 Prev | Next Part: 262866 *Qty: 1 LH SEAT GUIDE RAIL FASTENER BRACKET $113.92
Location: 21 Prev | Next Part: 262867 *Qty: 1 RH SEAT GUIDE RAIL FASTENER BRACKET $113.92
Location: 22 Prev | Next Part: 281118 *Qty: 1 REAR FASTENER BRACKET FOR LH SEAT Call
Location: 22 Prev | Next Part: 281117 *Qty: 1 REAR FASTENER BRACKET FOR RH SEAT Call
Location: 23 Prev | Next Part: 285775 *Qty: 1 SILL LINK CROSS MEMBER -Not available for sale- Call
Location: 24 Prev | Next Part: 264308 *Qty: 1 LOWER RH EXTRUSION Call
Location: 25 Prev | Next Part: 264309 *Qty: 1 LOWER LH EXTRUSION Call
Location: 26 Prev | Next Part: 269483 *Qty: 1 REAR FIREWALL -Applicable up to Ass. No. 104675- Call
Location: 26 Prev | Next Part: 280928 *Qty: 1 REAR FIREWALL -Applicable from Ass. No. 104676- Call
Location: 27 Prev | Next Part: 257398 *Qty: 1 RH LATERAL MOUNTING FOR FIREWALL Call
Location: 28 Prev | Next Part: 257397 *Qty: 1 LH LATERAL MOUNTING FOR FIREWALL Call
Location: 29 Prev | Next Part: 276525 *Qty: 1 FUEL TANK CROSS MEMBER -Not available for sale- Call
Location: 30 Prev | Next Part: 256697 *Qty: 1 RH LATERAL IMPACT BOX MEMBER Call
Location: 31 Prev | Next Part: 256696 *Qty: 1 LH LATERAL IMPACT BOX MEMBER Call
Location: 32 Prev | Next Part: 254479 *Qty: 1 REAR FASTENER BRACKET FOR RH REAR FLANK $299.01
Location: 33 Prev | Next Part: 254478 *Qty: 1 REAR FASTENER BRACKET FOR LH REAR FLANK $299.01
Location: 34 Prev | Next Part: 255316 *Qty: 1 RH REAR PILLAR BRACE -Not for USA Call
Location: 34 Prev | Next Part: 255316 *Qty: 1 RH REAR PILLAR BRACE -Applicable for USA Call
Location: 34 Prev | Next Part: 255316 *Qty: 1 RH REAR PILLAR BRACE -Applicable for USA Call
Location: 35 Prev | Next Part: 255315 *Qty: 1 LH REAR PILLAR BRACE Call
Location: 36 Prev | Next Part: 264431 *Qty: 1 RH SUBFRAME LINK EXTRUSION Call
Location: 37 Prev | Next Part: 264310 *Qty: 1 LH SUBFRAME LINK EXTRUSION Call
Location: 38 Prev | Next Part: 271054 *Qty: 1 UPPER RH BELT JOINT CASTING Call
Location: 39 Prev | Next Part: 271053 *Qty: 1 UPPER LH BELT JOINT CASTING Call
Location: 40 Prev | Next Part: 255318 *Qty: 1 RH SUSPENSION CASTING BRACE Call
Location: 41 Prev | Next Part: 255317 *Qty: 1 LH SUSPENSION CASTING BRACE Call
Location: 42 Prev | Next Part: 269996 *Qty: 1 RH UPPER EXTERNAL DIAGONAL BRACE -Not for USA Call
Location: 42 Prev | Next Part: 269996 *Qty: 1 RH UPPER EXTERNAL DIAGONAL BRACE -Applicable for USA Call
Location: 42 Prev | Next Part: 269996 *Qty: 1 RH UPPER EXTERNAL DIAGONAL BRACE -Applicable for USA Call
Location: 43 Prev | Next Part: 269995 *Qty: 1 LH UPPER EXTERNAL DIAGONAL BRACE Call
Location: 44 Prev | Next Part: 271958 *Qty: 1 RH INTERNAL BOX MEMBER Call
Location: 45 Prev | Next Part: 271956 *Qty: 1 LH INTERNAL BOX MEMBER Call
Location: 46 Prev | Next Part: 264311 *Qty: 1 CASTING FOR REAR RH SHOCK TOWER. Call
Location: 47 Prev | Next Part: 264312 *Qty: 1 CASTING FOR REAR LH SHOCK TOWER. Call
Location: 48 Prev | Next Part: 283984 *Qty: 1 COMPL. ENGINE BUFFER ASSEMBLY Call
Location: 49 Prev | Next Part: 256871 *Qty: 1 REAR SHELF MOUNTING PLATE Call
Location: 50 Prev | Next Part: 255255 *Qty: 1 RH FUEL PIPE GUARD PLATE Call
Location: 51 Prev | Next Part: 255252 *Qty: 1 LH FUEL PIPE GUARD PLATE Call
Location: 52 Prev | Next Part: 81992500 *Qty: 1 COMPL. RH LATERAL IMPACT REINFORCEMENT-Not available for sale- Call
Location: 53 Prev | Next Part: 81992600 *Qty: 1 COMPL. LH LATERAL IMPACT REINFORCEMENT-Not available for sale- Call
Location: 54 Prev | Next Part: 270985 *Qty: 1 EXTERNAL RH TRUSS Call
Location: 55 Prev | Next Part: 270984 *Qty: 1 EXTERNAL LH TRUSS Call
Location: 56 Prev | Next Part: 271425 *Qty: 1 INTERNAL RH TRUSS -Not for RHD- Call
Location: 56 Prev | Next Part: 274086 *Qty: 1 INTERNAL RH TRUSS -Applicable for RHD- Call
Location: 57 Prev | Next Part: 271422 *Qty: 1 INTERNAL LH TRUSS -Not for RHD- Call
Location: 57 Prev | Next Part: 274085 *Qty: 1 INTERNAL LH TRUSS -Applicable for RHD- Call
Location: 58 Prev | Next Part: 83816100 *Qty: 1 A PILLAR FLANGE Call
Location: 59 Prev | Next Part: 83816300 *Qty: 1 A PILLAR FLANGE Call
Location: 60 Prev | Next Part: 82677800 *Qty: 2 BRACKET Call
Location: 61 Prev | Next Part: 268144 *Qty: 1 RH LATERAL INTERNAL FILLER PLATE Call
Location: 62 Prev | Next Part: 268143 *Qty: 1 LH LATERAL INTERNAL FILLER PLATE Call
Location: 63 Prev | Next Part: 84682900 *Qty: 1 ACCELEROMETER FASTENER BRACKET Call
Location: 64 Prev | Next Part: 84717500 *Qty: 1 RH FASTENER BRACKET -Applicable for USA Call
Location: 64 Prev | Next Part: 84717400 *Qty: 1 LH FASTENER BRACKET -Applicable for USA Call
Location: 65 Prev | Next Part: 16285127 *Qty: 4 SCREW -M5 X 16- -Applicable for USA $0.90
Location: 66 Prev | Next Part: 285699 *Qty: 2 ACCELEROMETER MOUNTING BRACKET -Applicable from Ass. No. 106205- Call

* Quantity shown indicates the number of pieces used in the diagram.
