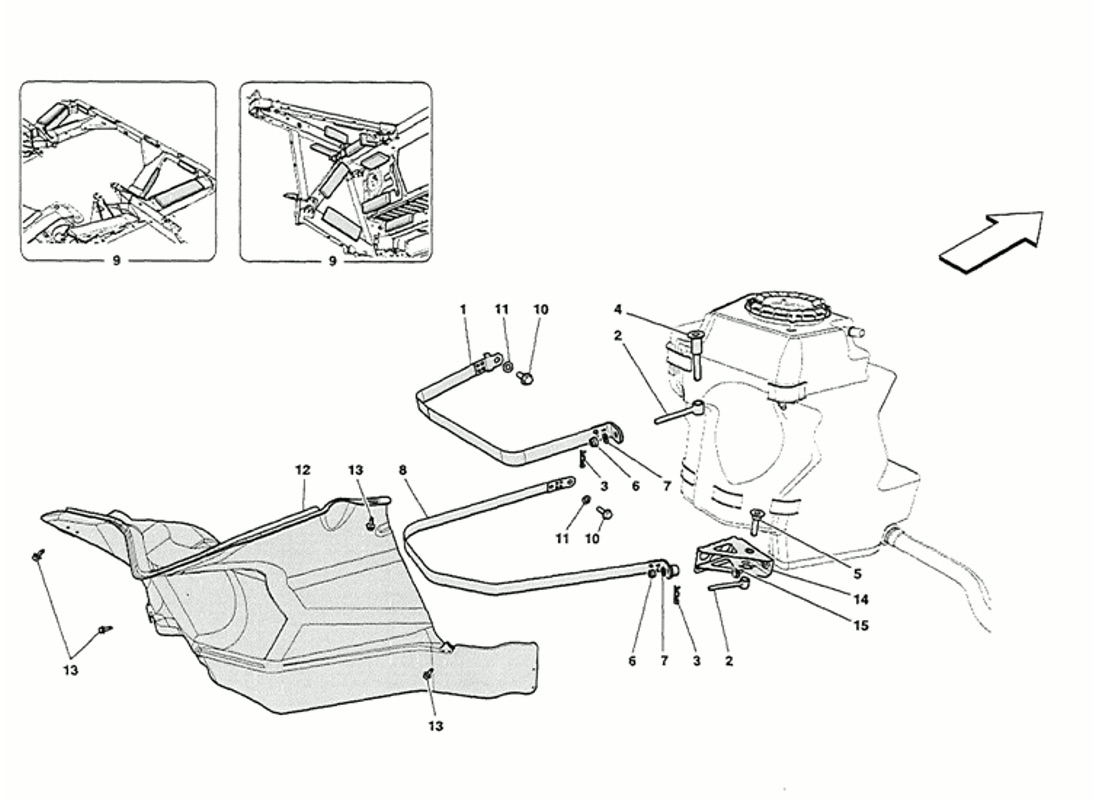

FUEL TANKS - FIXING AND PROTECTION

Go to Split View

FUEL TANKS - FIXING AND PROTECTION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 263506 *Qty: 1 CINGHIA SUPERIORE DX. FISSAGGIO SERBATOIO Call
Location: 1 Prev | Next Part: 263507 *Qty: 1 CINGHIA SUPERIORE SX. FISSAGGIO SERBATOIO Call
Location: 2 Prev | Next Part: 298222 *Qty: 4 TIRANTE NASTRO SERBATOIO Call
Location: 3 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN D.3,2X18 $0.90
Location: 4 Prev | Next Part: 271055 *Qty: 2 PERNO SUPERIORE Call
Location: 5 Prev | Next Part: 256055 *Qty: 2 LOWER PIN $12.89
Location: 6 Prev | Next Part: 14058511 *Qty: 4 NUT M 8X8 $0.90
Location: 7 Prev | Next Part: 14496524 *Qty: 4 WASHER D. 8.40-17X1 $0.90
Location: 8 Prev | Next Part: 263508 *Qty: 1 CINGHIA INFERIORE FISSAGGIO SERBATOIO DX. Call
Location: 8 Prev | Next Part: 263509 *Qty: 1 CINGHIA INFERIORE FISSAGGIO SERBATOIO SX. Call
Location: 9 Prev | Next Part: 278256 *Qty: 1 KIT TAMPONI SERBATOIO CARBURANTE Call
Location: 10 Prev | Next Part: 68984500 *Qty: 4 SCREW M 10X30X1.25 $3.82
Location: 11 Prev | Next Part: 11190574 *Qty: 4 WASHER D. 10.5X2 $0.90
Location: 12 Prev | Next Part: 283261 *Qty: 1 RH TANK HEAT INSULATION $866.47
Location: 12 Prev | Next Part: 283260 *Qty: 1 LH TANK HEAT INSULATION $866.47
Location: 13 Prev | Next Part: 11585024 *Qty: 17 SCREW M6X20 $0.90
Location: 14 Prev | Next Part: 263510 *Qty: 1 STAFFA DX. SOSTEGNO TRALICCIO MOBILE Call
Location: 14 Prev | Next Part: 263513 *Qty: 1 STAFFA SX. SOSTEGNO TRALICCIO MOBILE Call
Location: 15 Prev | Next Part: 81591700 *Qty: 4 SCREW Call

* Quantity shown indicates the number of pieces used in the diagram.
