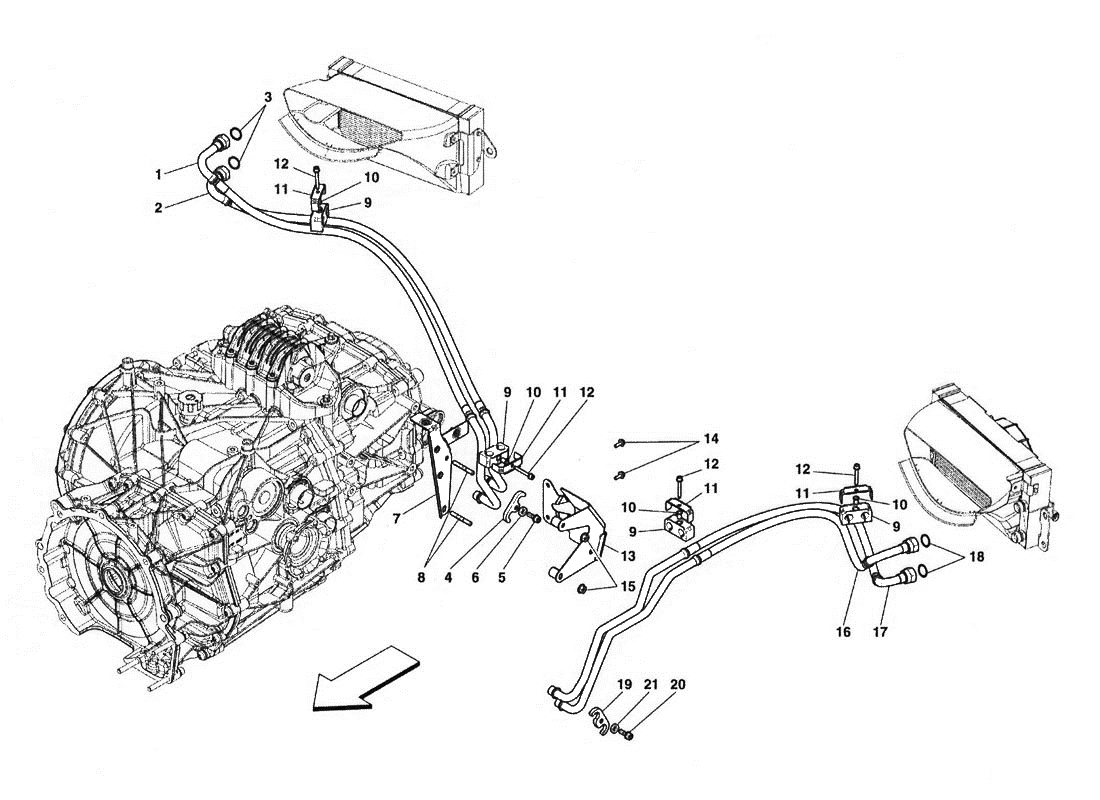

LUBRICATION AND GEARBOX OIL COOLING

Go to Split View

LUBRICATION AND GEARBOX OIL COOLING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 248224 *Qty: 1 GEARBOX OIL DELIVERY PIPE $456.91
Location: 2 Prev | Next Part: 248225 *Qty: 1 GEARBOX OIL RETURN PIPE $456.91
Location: 3 Prev | Next Part: 14453481 *Qty: 2 GASKET $2.23
Location: 4 Prev | Next Part: 253632 *Qty: 1 FORK $54.19
Location: 5 Prev | Next Part: 253465 *Qty: 1 SCREW $39.05
Location: 6 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 257215 *Qty: 1 BRACKET Call
Location: 8 Prev | Next Part: 13543824 *Qty: 2 STUD BOLT Superseded
Location: 9 Prev | Next Part: 243396 *Qty: 4 FRONT RUBBER PILLORY BLOCK $27.17
Location: 10 Prev | Next Part: 243399 *Qty: 4 BUSHING $0.99
Location: 11 Prev | Next Part: 243398 *Qty: 4 PLATE $15.52
Location: 12 Prev | Next Part: 11568224 *Qty: 2 SCREW-M6X45- $1.27
Location: 12 Prev | Next Part: 11628524 *Qty: 2 SCREW -M6X40- $1.87
Location: 13 Prev | Next Part: 248227 *Qty: 1 BRACKET $97.39
Location: 14 Prev | Next Part: 13836424 *Qty: 1 SCREW -M6X16- $0.90
Location: 14 Prev | Next Part: 13837411 *Qty: 1 SCREW -M6X25- $0.90
Location: 15 Prev | Next Part: 13046224 *Qty: 2 NUT $0.90
Location: 16 Prev | Next Part: 256689 *Qty: 1 OIL DELIVERY PIPE $456.91
Location: 17 Prev | Next Part: 260773 *Qty: 1 OIL RETURN PIPE $462.18
Location: 18 Prev | Next Part: 14453481 *Qty: 2 GASKET $2.23
Location: 19 Prev | Next Part: 253464 *Qty: 1 FORK $118.52
Location: 20 Prev | Next Part: 253465 *Qty: 1 SCREW $39.05
Location: 21 Prev | Next Part: 11198074 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
