INSULATIONS

Go to Split View

INSULATIONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 82760900 *Qty: 1 LH FIREWALL SOUNDPROOFING -Applicable until depletion- Call
Location: 2 Prev | Next Part: 82120900 *Qty: 1 RH FIREWALL SOUNDPROOFING -Applicable until depletion- Call
Location: 3 Prev | Next Part: 82774400 *Qty: 1 PAD FOR LH SILL -Not for GD- $141.59
Location: 3 Prev | Next Part: 83497200 *Qty: 1 PAD FOR LH SILL -Applicable for GD- Call
Location: 3 Prev | Next Part: 82774300 *Qty: 1 PAD FOR RH SILL -Not for GD- $73.43
Location: 3 Prev | Next Part: 83497100 *Qty: 1 PAD FOR RH SILL -Applicable for GD- Call
Location: 4 Prev | Next Part: 82288200 *Qty: 1 RH LUGGAGE COMPARTMENT HEAT SHIELD -Optional Space Saver Spare Wheel- -Applicable for luggage compartment tub in Alcantara- -No longer supplied- -For vehicles up to Ass. No. 90001. order the COMPLETE Call
Location: 5 Prev | Next Part: 82288300 *Qty: 1 LH LUGGAGE COMPARTMENT HEAT SHIELD -Optional Space Saver Spare Wheel- -Applicable for luggage compartment tub in Alcantara- -No longer supplied- -For vehicles up to Ass. No. 90001. order the COMPLETE Call
Location: 6 Prev | Next Part: 82854700 *Qty: 1 LH REAR FIREWALL INSULATION $44.05
Location: 6 Prev | Next Part: 82667600 *Qty: 1 RH REAR FIREWALL INSULATION $44.05
Location: 6 Prev | Next Part: 82667800 *Qty: 1 FIREWALL HATCH INSULATION $73.43
Location: 7 Prev | Next Part: 82810400 *Qty: 1 LH LATERAL REAR SCREEN SOUNDPROOFING $19.38
Location: 7 Prev | Next Part: 82810300 *Qty: 1 RH LATERAL REAR SCREEN SOUNDPROOFING $19.38
Location: 8 Prev | Next Part: 82810600 *Qty: 1 LH LOWER REAR SCREEN SOUNDPROOFING $20.56
Location: 8 Prev | Next Part: 82810500 *Qty: 1 RH LOWER REAR SCREEN SOUNDPROOFING $20.56
Location: 9 Prev | Next Part: 82810800 *Qty: 1 REAR SCREEN CROSS MEMBER SOUNDPROOFING $55.80
Location: 10 Prev | Next Part: 82810700 *Qty: 1 UPPER REAR SCREEN CROSS MEMBER SOUNDPROOFING $25.85
Location: 11 Prev | Next Part: 82982400 *Qty: 1 LH LATERAL FIREWALL SOUNDPROOFING $26.44
Location: 11 Prev | Next Part: 82982700 *Qty: 1 RH LATERAL FIREWALL SOUNDPROOFING -Vehicle lift system- Call

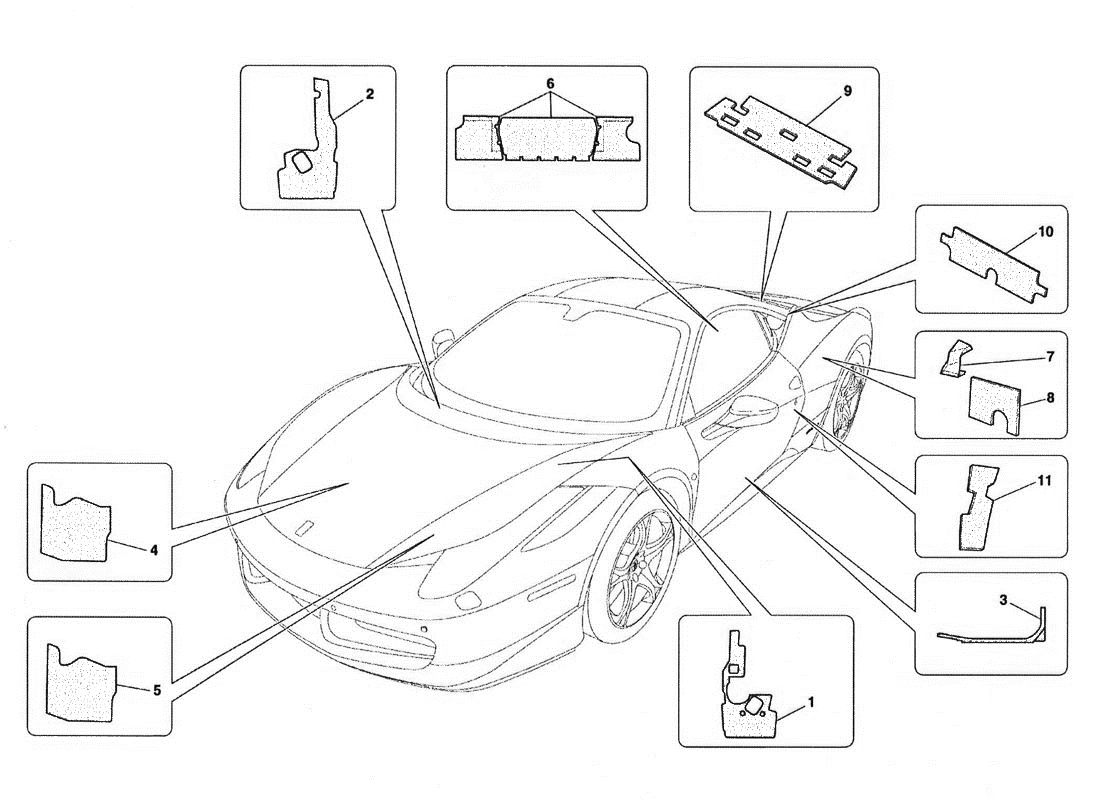

* Quantity shown indicates the number of pieces used in the diagram.
