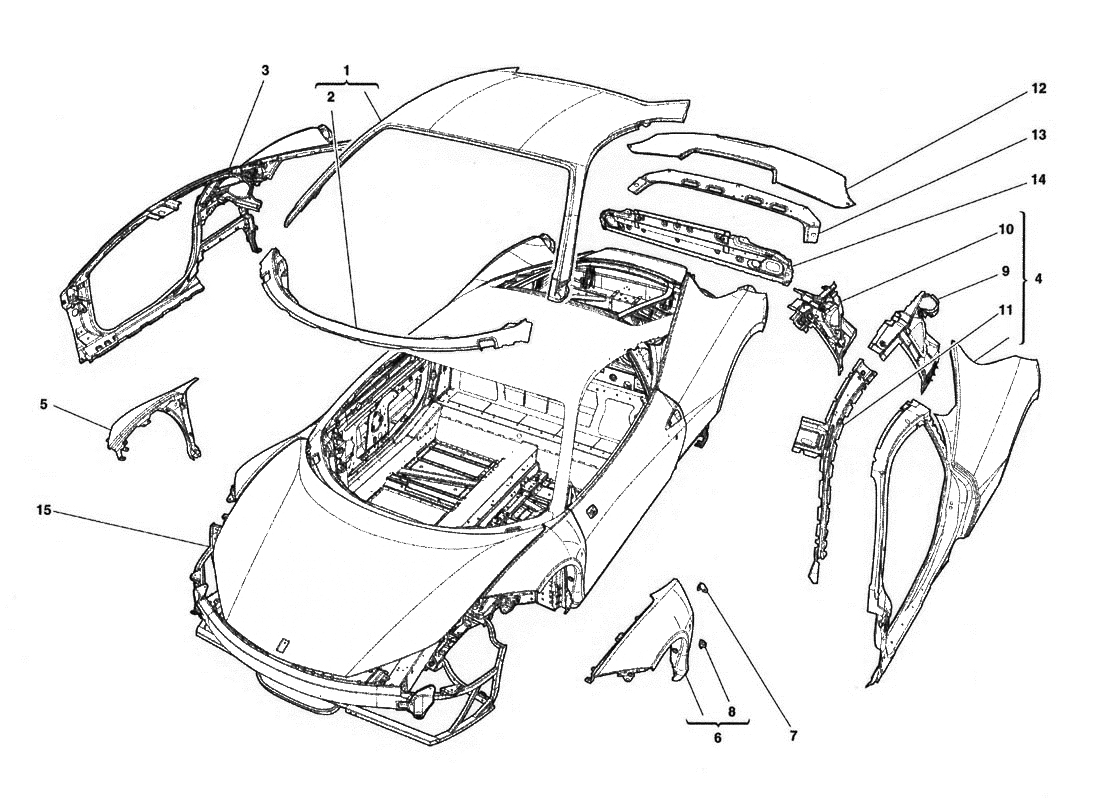

BODY - OUTER TRIMS

Go to Split View

BODY - OUTER TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 81295611 *Qty: 1 ROOF TRIM Call
Location: 3 Prev | Next Part: 81288111 *Qty: 1 RH FLANK Call
Location: 4 Prev | Next Part: 81288211 *Qty: 1 LH FLANK Call
Location: 5 Prev | Next Part: 81288711 *Qty: 1 FRONT RH FENDER $2,806.50
Location: 5 Prev | Next Part: 82761611 *Qty: 1 FRONT RH FENDER -Shield badge- Call
Location: 6 Prev | Next Part: 81289611 *Qty: 1 FRONT LH FENDER $5,043.89
Location: 6 Prev | Next Part: 82761711 *Qty: 1 FRONT LH FENDER -Shield badge- Call
Location: 7 Prev | Next Part: 81543000 *Qty: 1 UPPER LH BRACKET $7.50
Location: 7 Prev | Next Part: 81542900 *Qty: 1 UPPER RH BRACKET $7.50
Location: 8 Prev | Next Part: 82661500 *Qty: 1 LOWER LH BRACKET $29.98
Location: 8 Prev | Next Part: 82661400 *Qty: 1 LOWER RH BRACKET $29.98
Location: 9 Prev | Next Part: 82030600 *Qty: 1 REAR LH SUBFRAME Call
Location: 9 Prev | Next Part: 82030200 *Qty: 1 REAR RH SUBFRAME Call
Location: 10 Prev | Next Part: 82030900 *Qty: 1 LH NODE SUBFRAME Call
Location: 10 Prev | Next Part: 82030800 *Qty: 1 RH NODE SUBFRAME Call
Location: 11 Prev | Next Part: 81300200 *Qty: 1 LH PILLAR SUBFRAME Call
Location: 11 Prev | Next Part: 81300000 *Qty: 1 RH PILLAR SUBFRAME Call
Location: 12 Prev | Next Part: 82863111 *Qty: 1 REAR SPOILER -Not for USA and CDN- Call
Location: 12 Prev | Next Part: 83138111 *Qty: 1 REAR SPOILER -Applicable for USA and CDN- Call
Location: 13 Prev | Next Part: 82456800 *Qty: 1 REAR BUMPER MOUNTING CROSS MEMBER Call
Location: 14 Prev | Next Part: 81295711 *Qty: 1 REAR SCREEN BULKHEAD SUBFRAME -Standard- $666.38
Location: 14 Prev | Next Part: 83077011 *Qty: 1 REAR SCREEN BULKHEAD SUBFRAME -Hi Fi- $869.50
Location: 14 Prev | Next Part: 83060411 *Qty: 1 REAR SCREEN BULKHEAD SUBFRAME -4-point seat harness- Call
Location: 15 Prev | Next Part: -0 *Qty: 1 COMPLETE BODYSHELL -cannot be ordered- Call

* Quantity shown indicates the number of pieces used in the diagram.
