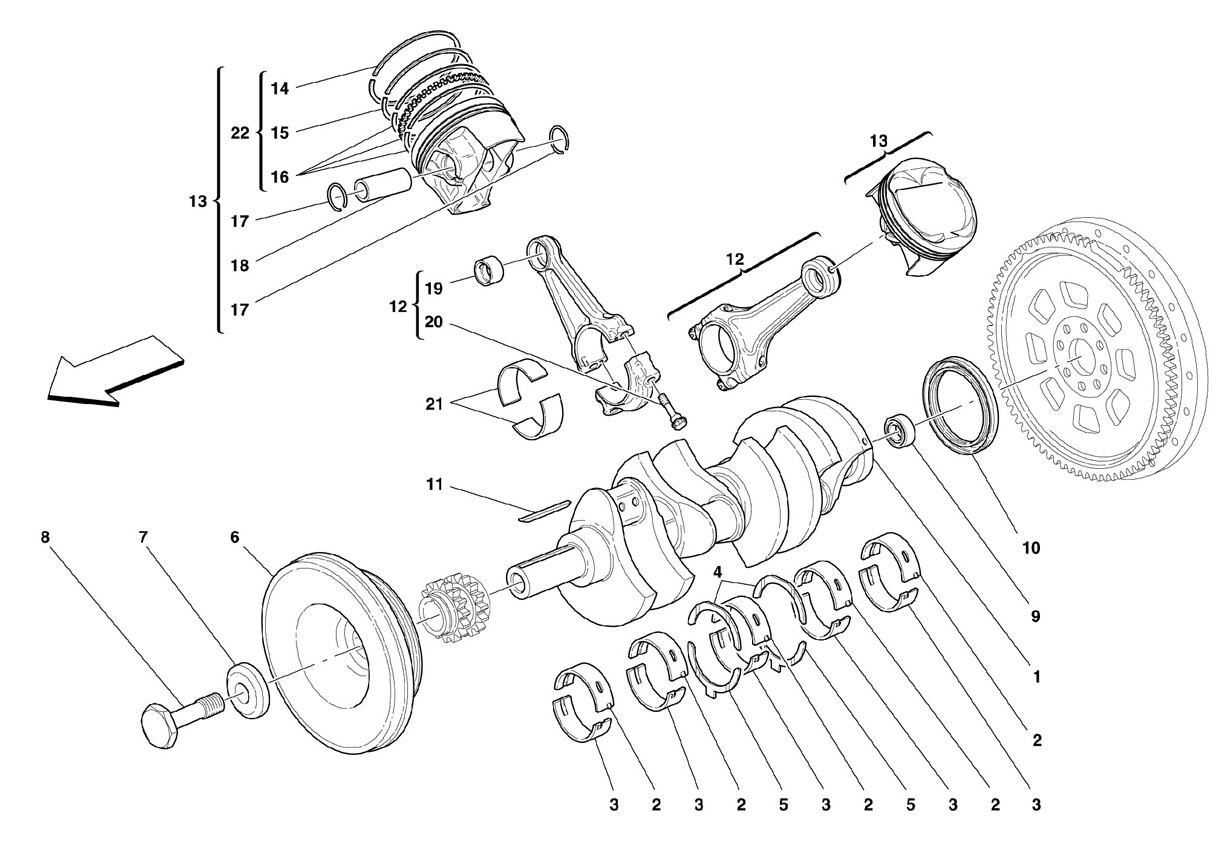

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 196460 *Qty: 1 CRANKSHAFT $10,466.02
Location: 2 Prev | Next Part: 195307 *Qty: 5 UPPER HALF BEARING -Blue- -Standard- Superseded
Location: 2 Prev | Next Part: 198910 *Qty: 5 UPPER HALF BEARING -Green- $31.60
Location: 2 Prev | Next Part: 195308 *Qty: 5 UPPER HALF BEARING -Yellow- $24.26
Location: 3 Prev | Next Part: 200194 *Qty: 5 ER HALF BEARING -Blue- -Standard- Superseded
Location: 3 Prev | Next Part: 200196 *Qty: 5 ER HALF BEARING -Green- $32.11
Location: 3 Prev | Next Part: 200195 *Qty: 5 ER HALF BEARING -Yellow- $20.38
Location: 4 Prev | Next Part: 196648 *Qty: 2 UPPER SHIM -Valid till Ass. Nr. 72741- $93.57
Location: 4 Prev | Next Part: 222874 *Qty: 2 SHIM -Valid from Ass. Nr. 72742- $27.17
Location: 5 Prev | Next Part: 196649 *Qty: 2 ER SHIM -Valid till Ass. Nr. 72741- $93.57
Location: 5 Prev | Next Part: 222874 *Qty: 2 SHIM -Valid from Ass. Nr. 72742- $27.17
Location: 6 Prev | Next Part: 212322 *Qty: 1 TORSION DAMPER $806.76
Location: 7 Prev | Next Part: 192106 *Qty: 1 SHER $7.57
Location: 8 Prev | Next Part: 196216 *Qty: 1 SCREW FOR DAMPER FIXING $43.53
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING $35.31
Location: 10 Prev | Next Part: 200323 *Qty: 1 SEAL RING $38.88
Location: 10 Prev | Next Part: 200323 *Qty: 1 SEAL RING -As an alternative- $38.88
Location: 11 Prev | Next Part: 186201 *Qty: 1 KEY $1.26
Location: 12 Prev | Next Part: 244888 *Qty: 8 COMPLETE CONNECTING ROD -Valid till stock exhaustion- $813.64
Location: 12 Prev | Next Part: 244888 *Qty: 8 COMPLETE CONNECTING ROD -Valid after stock exhaustion of 208080- $813.64
Location: 13 Prev | Next Part: 210360 *Qty: 4 RH PISTON WITH RINGS $929.67
Location: 13 Prev | Next Part: 210361 *Qty: 4 LH PISTON WITH RINGS $929.67
Location: 14 Prev | Next Part: 236497 *Qty: 8 SEAL RING -1stgroove- Call
Location: 15 Prev | Next Part: 226260 *Qty: 8 SEAL RING -2nd groove- $54.81
Location: 16 Prev | Next Part: 175614 *Qty: 8 OIL SCRAPING RING -3nd groove- $77.19
Location: 17 Prev | Next Part: 178890 *Qty: 16 STOP RING $4.25
Location: 18 Prev | Next Part: 175367 *Qty: 8 PIN $79.74
Location: 19 Prev | Next Part: 208094 *Qty: 8 BUSHING $25.16
Location: 20 Prev | Next Part: 208095 *Qty: 16 CONNECTING ROD TIGHTENING SCREW -Not as spare part- -Replaced by 215530- $76.44
Location: 20 Prev | Next Part: 215836 *Qty: 16 CONNECTING ROD TIGHTENING SCREW -As an alternative- -Not as spare part- -Replaced by 215530- $8.63
Location: 20 Prev | Next Part: 215837 *Qty: 16 CONNECTING ROD TIGHTENING SCREW -As an alternative- -Not as spare part- -Replaced by 215530- Call
Location: 20 Prev | Next Part: 215530 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $55.18
Location: 21 Prev | Next Part: 204290 *Qty: 16 CONNECTING ROD HALF BEARING -Red- -Standard $9.70
Location: 21 Prev | Next Part: 204291 *Qty: 16 CONNECTING ROD HALF BEARING -Blue- $9.70
Location: 21 Prev | Next Part: 204292 *Qty: 16 CONNECTING ROD HALF BEARING -Black- $9.70
Location: 22 Prev | Next Part: 198025 *Qty: 12 PISTONS RINGS SET $305.53

* Quantity shown indicates the number of pieces used in the diagram.
