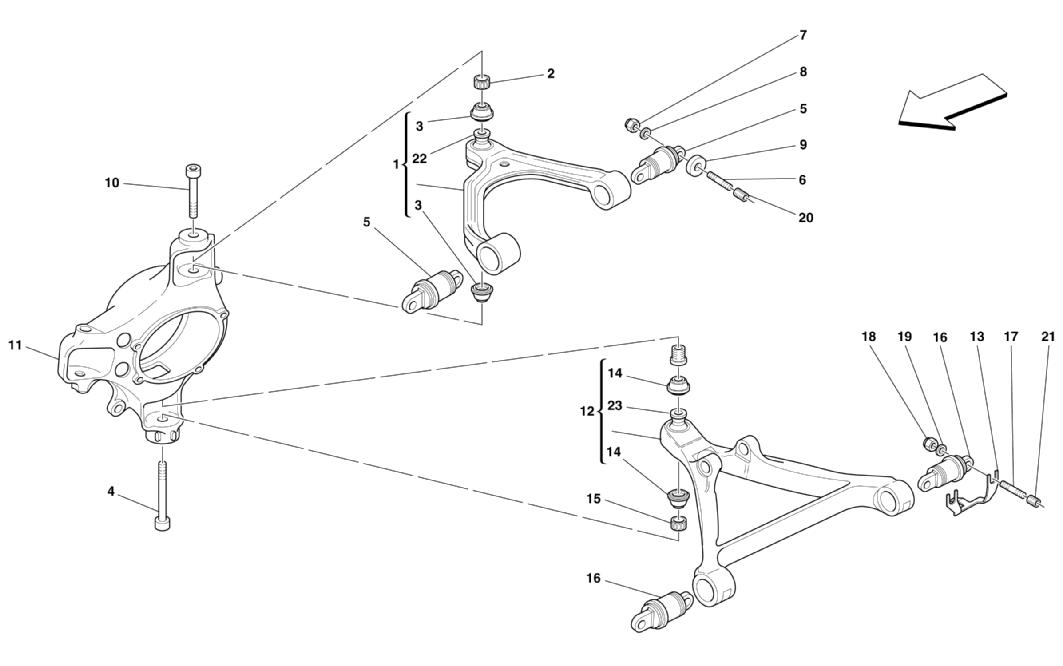

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200945 *Qty: 2 UPPER LEVER $795.15
Location: 2 Prev | Next Part: 179555 *Qty: 2 UPPER LEVER COMPENSATOR RING $6.18
Location: 3 Prev | Next Part: 171848 *Qty: 4 BOOT $42.00
Location: 4 Prev | Next Part: 181598 *Qty: 2 SCREW $72.93
Location: 5 Prev | Next Part: 209167 *Qty: 4 FLAMBLOC -Replace together $300.57
Location: 6 Prev | Next Part: 170155 *Qty: 8 THREADED BAR $3.00
Location: 7 Prev | Next Part: 104030 *Qty: 8 NUT $0.67
Location: 8 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 9 Prev | Next Part: 12628904 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 179556 *Qty: 2 SCREW $34.92
Location: 11 Prev | Next Part: 179330 *Qty: 1 L.H. FRONT STEERING KNUCKLE $1,172.00
Location: 11 Prev | Next Part: 179328 *Qty: 1 R.H. FRONT STEERING KNUCKLE $1,172.00
Location: 12 Prev | Next Part: 200940 *Qty: 2 LOWER LEVER $726.00
Location: 13 Prev | Next Part: 178940 *Qty: 4 ADJUSTING PLATE -Th. mm. 4 -Possible fitting $8.02
Location: 13 Prev | Next Part: 186944 *Qty: 4 ADJUSTING PLATE -Th. mm. 2,5 -Possible fitting $5.47
Location: 13 Prev | Next Part: 178851 *Qty: 4 ADJUSTING PLATE -Th. mm. 1 -Possible fitting $18.32
Location: 13 Prev | Next Part: 178853 *Qty: 4 ADJUSTING PLATE -Th. mm. 3 -Possible fitting $22.27
Location: 13 Prev | Next Part: 186943 *Qty: 4 ADJUSTING PLATE -Th. mm. 1,5 -Possible fitting $11.36
Location: 13 Prev | Next Part: 178852 *Qty: 4 ADJUSTING PLATE -Th. mm. 2 -Possible fitting $21.25
Location: 14 Prev | Next Part: 171847 *Qty: 4 BOOT $42.00
Location: 15 Prev | Next Part: 179554 *Qty: 2 LOWER LEVER COMPENSATOR RING $6.41
Location: 16 Prev | Next Part: 209166 *Qty: 4 FLAMBLOC -Replace together $343.01
Location: 17 Prev | Next Part: 170154 *Qty: 8 THREADED BAR $3.75
Location: 18 Prev | Next Part: 12574521 *Qty: 8 NUT $0.90
Location: 19 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 20 Prev | Next Part: 13582210 *Qty: 8 THREADED INSERT Call
Location: 21 Prev | Next Part: 13582310 *Qty: 8 THREADED INSERT $16.72
Location: 22 Prev | Next Part: 203633 *Qty: 2 BALL JOINT -Valid for upper lever 200945 ref. 1 Call
Location: 23 Prev | Next Part: 203632 *Qty: 2 BALL JOINT -Valid for lower lever 200940 ref. 12 Call

* Quantity shown indicates the number of pieces used in the diagram.
