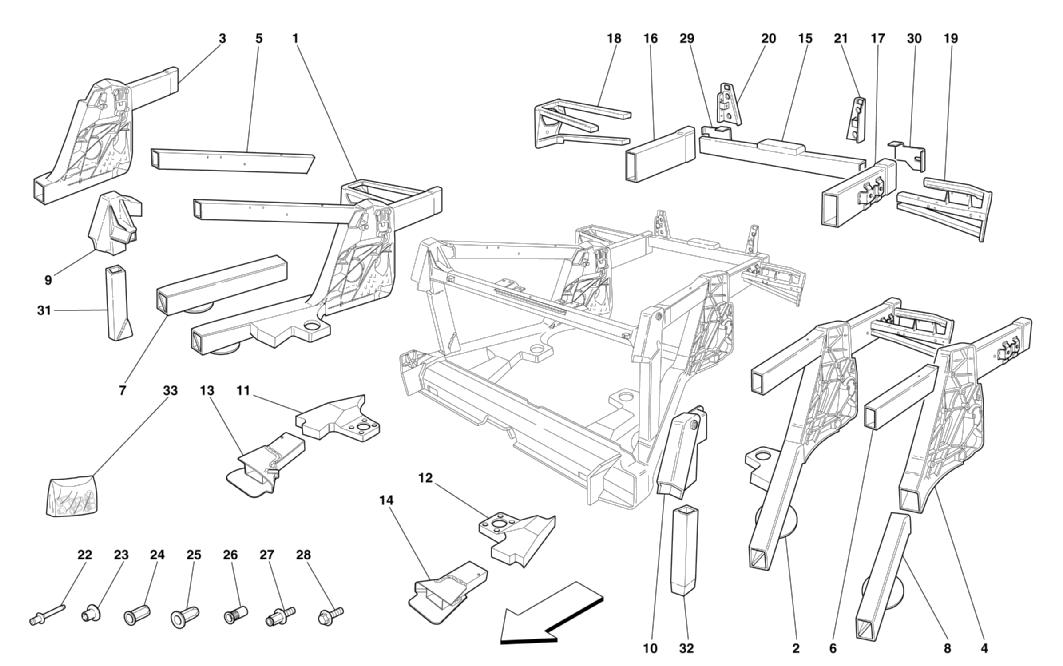

FRAME - REAR ELEMENTS SUB-GROUPS

Go to Split View

FRAME - REAR ELEMENTS SUB-GROUPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66653300 *Qty: 1 COMPLETE R.H. SIDE FRAME -Valid from car Nr. 120573 $6,048.37
Location: 1 Prev | Next Part: 66789200 *Qty: 1 COMPLETE R.H. SIDE FRAME -Valid till car Nr. 120572 Call
Location: 2 Prev | Next Part: 66653400 *Qty: 1 COMPLETE L.H. SIDE FRAME -Valid from car Nr. 120573 Call
Location: 2 Prev | Next Part: 66789300 *Qty: 1 COMPLETE L.H. SIDE FRAME -Valid till car Nr. 120572 Call
Location: 3 Prev | Next Part: 66653500 *Qty: 1 R.H. REAR LATERAL CASTING -Valid from car Nr. 120573 Call
Location: 3 Prev | Next Part: 66789400 *Qty: 1 R.H. REAR LATERAL CASTING -Valid till car Nr. 120572 Call
Location: 4 Prev | Next Part: 66789500 *Qty: 1 L.H. REAR LATERAL CASTING -Valid till car Nr. 120572 Call
Location: 4 Prev | Next Part: 66653600 *Qty: 1 L.H. REAR LATERAL CASTING -Valid from car Nr. 120573 Call
Location: 5 Prev | Next Part: 179471 *Qty: 1 R.H. UPPER FRAME Call
Location: 6 Prev | Next Part: 179500 *Qty: 1 L.H. UPPER FRAME Call
Location: 7 Prev | Next Part: 66928600 *Qty: 1 R.H. LOWER FRAME $756.61
Location: 7 Prev | Next Part: 183171 *Qty: 1 R.H. LOWER FRAME -Not as spare part -Replaced by 66928600 Call
Location: 8 Prev | Next Part: 66928700 *Qty: 1 L.H. LOWER FRAME $756.61
Location: 8 Prev | Next Part: 183170 *Qty: 1 L.H. LOWER FRAME -Not as spare part -Replaced by 66928700 Call
Location: 9 Prev | Next Part: 6166261 *Qty: 1 R.H. UPPER FUSION REAR PILLAR $482.27
Location: 10 Prev | Next Part: 6166161 *Qty: 1 L.H. UPPER FUSION REAR PILLAR $482.27
Location: 11 Prev | Next Part: 166237 *Qty: 1 R.H. BRACKET ENGINE SUPPORT -Not as spare part -Valid till car Nr. 123722 -For cars with old solution replace with 6187237 + 6187137 to mount together Call
Location: 11 Prev | Next Part: 195208 *Qty: 1 R.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 120069 for GS and 120194 for GD -Valid from car Nr. 138028 Call
Location: 11 Prev | Next Part: 6187237 *Qty: 1 R.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 123723 till car Nr. 138027 Call
Location: 12 Prev | Next Part: 6187137 *Qty: 1 L.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 123723 till car Nr. 138027 Call
Location: 12 Prev | Next Part: 166137 *Qty: 1 L.H. BRACKET ENGINE SUPPORT -Not as spare part -Valid till car Nr. 123722 -For cars with old solution replace with 6187237 + 6187137 to mount together Call
Location: 12 Prev | Next Part: 195207 *Qty: 1 L.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 138028 Call
Location: 13 Prev | Next Part: 65942200 *Qty: 1 R.H. SUPPORT FOR BRACKET $681.39
Location: 14 Prev | Next Part: 65942300 *Qty: 1 L.H. SUPPORT FOR BRACKET Call
Location: 15 Prev | Next Part: 183978 *Qty: 1 REAR BUMPER CROSS MEMBER Call
Location: 16 Prev | Next Part: 66755500 *Qty: 1 R.H. REAR FRAME Call
Location: 17 Prev | Next Part: 183833 *Qty: 1 L.H. REAR FRAME $679.45
Location: 18 Prev | Next Part: 64810000 *Qty: 1 R.H. REAR FENDER FRAME $275.09
Location: 19 Prev | Next Part: 65995500 *Qty: 1 L.H. REAR FENDER FRAME $184.98
Location: 20 Prev | Next Part: 67083511 *Qty: 1 R.H. SIDE BRACKET $205.42
Location: 21 Prev | Next Part: 67083611 *Qty: 1 L.H. SIDE BRACKET $205.42
Location: 22 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 22 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 23 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 24 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 24 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.78
Location: 24 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.04
Location: 24 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.26
Location: 24 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 25 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 26 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.85
Location: 26 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 26 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 26 Prev | Next Part: 179299 *Qty: 0 RIVET M10 $2.10
Location: 26 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 27 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 28 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 29 Prev | Next Part: 166288 *Qty: 1 R.H. BRACKET Call
Location: 30 Prev | Next Part: 166188 *Qty: 1 L.H. BRACKET $16.12
Location: 31 Prev | Next Part: 66051200 *Qty: 1 COMPLETE R.H. REAR PANEL $238.20
Location: 32 Prev | Next Part: 66051100 *Qty: 1 COMPLETE L.H. REAR PANEL Call
Location: 33 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16

* Quantity shown indicates the number of pieces used in the diagram.
