TOP -VALID FOR SPIDER-

Go to Split View

TOP -VALID FOR SPIDER-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 64528200 *Qty: 1 CLOTH FOR TOP -Black Call
Location: - Prev | Next Part: 64528202 *Qty: 1 CLOTH FOR TOP -Blue Call
Location: - Prev | Next Part: 64528205 *Qty: 1 CLOTH FOR TOP -Beige Call
Location: 1 Prev | Next Part: 64528105 *Qty: 1 COMPLETE CAPOTE -Beige -Not for GD Call
Location: 1 Prev | Next Part: 64897700 *Qty: 1 COMPLETE CAPOTE -Black -Valid for GD Call
Location: 1 Prev | Next Part: 64897702 *Qty: 1 COMPLETE CAPOTE -Blue -Valid for GD Call
Location: 1 Prev | Next Part: 64897705 *Qty: 1 COMPLETE CAPOTE -Beige -Valid for GD Call
Location: 1 Prev | Next Part: 64528100 *Qty: 1 COMPLETE CAPOTE -Black -Not for GD Call
Location: 1 Prev | Next Part: 64528102 *Qty: 1 COMPLETE CAPOTE -Blue -Not for GD Call
Location: 2 Prev | Next Part: 65098900 *Qty: 1 TOP COVER COMPLETE OF TOP COVER BAG -Not as spare part replaced by 650989.. or 652578.. Call
Location: 2 Prev | Next Part: 650989.. *Qty: 1 TOP COVER -With black button -Replaces 64891800 Call
Location: 2 Prev | Next Part: 652578.. *Qty: 1 TOP COVER -With chromium-plated button -Replaces 64891800 Call
Location: 3 Prev | Next Part: 63239500 *Qty: 1 BUTTON $18.00
Location: 4 Prev | Next Part: 63685100 *Qty: 1 TONNEAU COVER $2,532.11
Location: 5 Prev | Next Part: 64793800 *Qty: 1 HANDLE FOR TOP $633.07
Location: 6 Prev | Next Part: 63966100 *Qty: 1 COMPLETE CONTROL BLOCK BOX $1,013.97
Location: 7 Prev | Next Part: 63990900 *Qty: 1 PIN $17.61
Location: 8 Prev | Next Part: 63614100 *Qty: 1 L.H. TOP CLOSING HOOK $916.09
Location: 8 Prev | Next Part: 63614200 *Qty: 1 R.H. TOP CLOSING HOOK $916.09
Location: 9 Prev | Next Part: 64667100 *Qty: 2 CENTERING CONE $37.74
Location: 10 Prev | Next Part: 123622 *Qty: 2 O.R. GASKET $1.97
Location: 11 Prev | Next Part: 14189574 *Qty: 2 CLIP FOR SCREW -Replaces 14189874 $0.90
Location: 11 Prev | Next Part: 14189874 *Qty: 2 CLIP FOR SCREW -For F355 not as spare part -Replaced by 14189574 Call
Location: 12 Prev | Next Part: 63613200 *Qty: 1 R.H. FRONT RUBBER HOLDER PROFILE $203.38
Location: 12 Prev | Next Part: 63613400 *Qty: 1 L.H. FRONT RUBBER HOLDER PROFILE $203.38
Location: 13 Prev | Next Part: 63612700 *Qty: 1 R.H. REAR RUBBER HOLDER PROFILE $39.11
Location: 13 Prev | Next Part: 63612800 *Qty: 1 L.H. REAR RUBBER HOLDER PROFILE $39.11
Location: 14 Prev | Next Part: 64626000 *Qty: 2 PLATE $988.19
Location: 15 Prev | Next Part: 15914770 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 64416800 *Qty: 1 SENSOR ON PLATE -Replaces 163780 $278.70
Location: 17 Prev | Next Part: 64662100 *Qty: 1 R.H. PISTON COVER $5.56
Location: 17 Prev | Next Part: 64662200 *Qty: 1 L.H. PISTON COVER $16.72
Location: 18 Prev | Next Part: 13273872 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 10519278 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 63639800 *Qty: 10 PIN mm. 21 $27.19
Location: 20 Prev | Next Part: 63678400 *Qty: 4 PIN mm. 25 $144.86
Location: 20 Prev | Next Part: 63678500 *Qty: 2 PIN mm. 33 $26.66
Location: 20 Prev | Next Part: 63639500 *Qty: 2 PIN mm. 23 $27.19
Location: 20 Prev | Next Part: 63639600 *Qty: 4 PIN mm. 18 $18.82
Location: 20 Prev | Next Part: 63639700 *Qty: 8 PIN mm. 27 $28.39
Location: 21 Prev | Next Part: 63639900 *Qty: 28 WASHER mm.1,3 $3.41
Location: 22 Prev | Next Part: 64243400 *Qty: 1 TOP LIFTING HANDLE $38.19
Location: 23 Prev | Next Part: 60702800 *Qty: 2 SCREW $1.33
Location: 24 Prev | Next Part: 64781400 *Qty: 1 R.H. LATERAL MOLDING $251.50
Location: 24 Prev | Next Part: 64781500 *Qty: 1 L.H. LATERAL MOLDING $251.50
Location: 25 Prev | Next Part: 15690678 *Qty: 2 SCREW mm. 13 Call
Location: 25 Prev | Next Part: 15909478 *Qty: 2 SCREW mm. 19 $0.90
Location: 26 Prev | Next Part: 63936600 *Qty: 6 SCREW $1.90
Location: 27 Prev | Next Part: 12642078 *Qty: 6 WASHER $0.90
Location: 28 Prev | Next Part: 15902678 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 14496277 *Qty: 2 WASHER $1.00
Location: 30 Prev | Next Part: 61632100 *Qty: 4 SCREW TAP $5.00
Location: 31 Prev | Next Part: 61195300 *Qty: 4 WASHER Call
Location: 32 Prev | Next Part: 14058311 *Qty: 5 NUT $0.90
Location: 33 Prev | Next Part: 63936600 *Qty: 6 SCREW $1.90
Location: 34 Prev | Next Part: 12646778 *Qty: 6 WASHER $0.90
Location: 35 Prev | Next Part: 63238800 *Qty: 2 STOP BUFFER $18.87
Location: 36 Prev | Next Part: 62167200 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 13838817 *Qty: 6 SCREW $1.14
Location: 38 Prev | Next Part: 63961100 *Qty: 2 SCREW TAP Call
Location: 39 Prev | Next Part: 61195300 *Qty: 2 WASHER Call
Location: 40 Prev | Next Part: 64416900 *Qty: 1 SENSOR $325.51
Location: 41 Prev | Next Part: 64667000 *Qty: 1 EXTENSION FOR SENSOR $329.59
Location: 42 Prev | Next Part: 155751 *Qty: 1 CLIP $5.74
Location: 43 Prev | Next Part: 64830900 *Qty: 1 L.H. GUIDE SHOE -Not for GD Call
Location: 43 Prev | Next Part: 64831000 *Qty: 1 R.H. GUIDE SHOE -Valid for GD $3.52
Location: 43 Prev | Next Part: 64762900 *Qty: 1 L.H. GUIDE SHOE -Valid for GD $3.52
Location: 43 Prev | Next Part: 64763000 *Qty: 1 R.H. GUIDE SHOE -Not for GD $3.52
Location: 44 Prev | Next Part: 63690900 *Qty: 1 TOP COVER BAG Call
Location: 45 Prev | Next Part: 64661900 *Qty: 4 BUSHING $36.22
Location: 46 Prev | Next Part: 64665600 *Qty: 4 PAD $29.61
Location: 47 Prev | Next Part: 13798821 *Qty: 2 SCREW $8.81

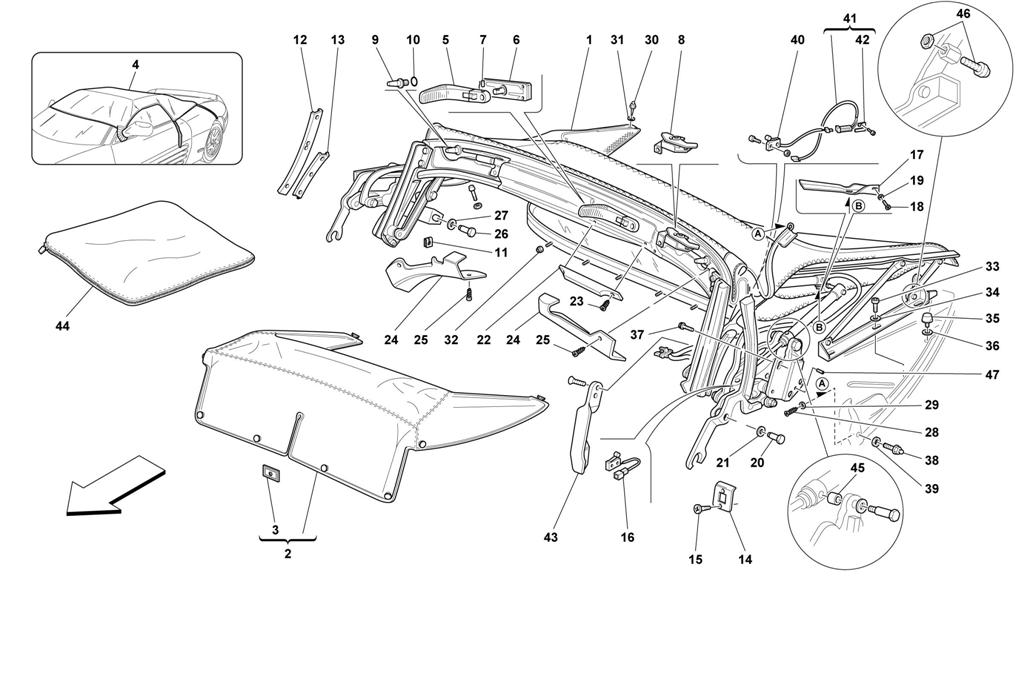

* Quantity shown indicates the number of pieces used in the diagram.
