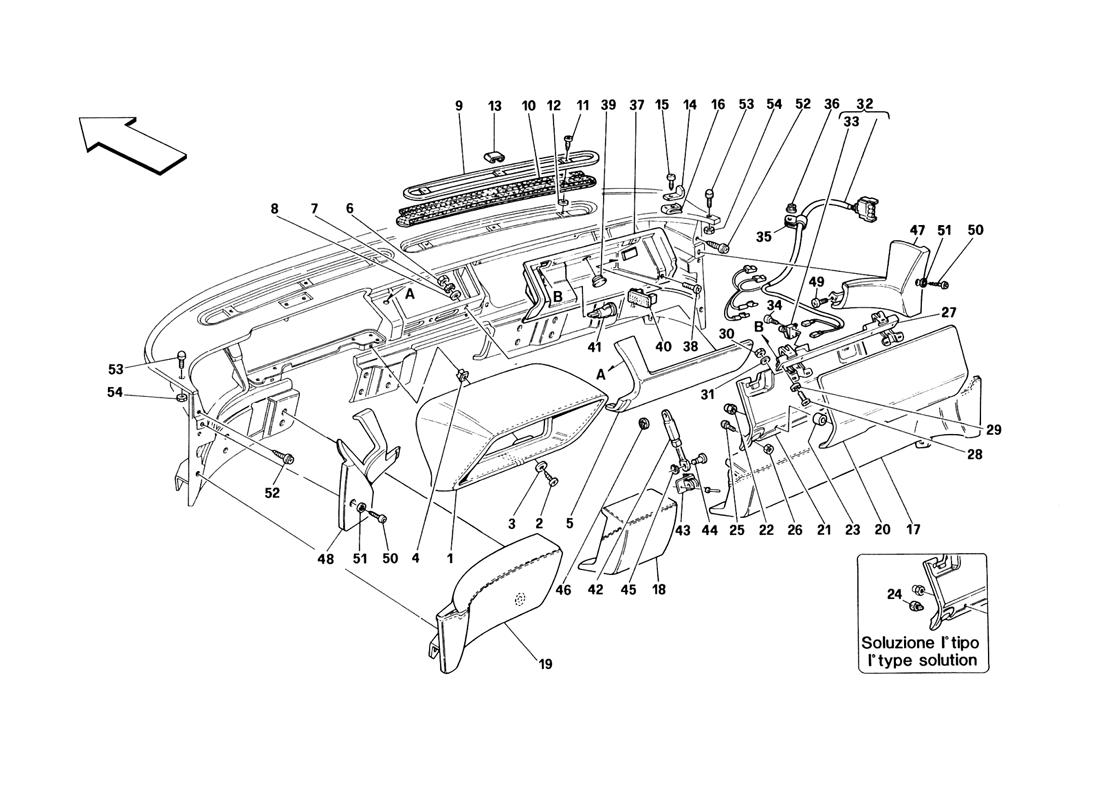

DASHBOARD - TRIM AND ACCESSORIES - NOT FOR USA FROM M.Y. 90

Go to Split View

DASHBOARD - TRIM AND ACCESSORIES - NOT FOR USA FROM M.Y. 90

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62139900 *Qty: 1 COVERED INSTRUMENTS PANEL $644.39
Location: 1 Prev | Next Part: 62847900 *Qty: 1 LINING $60.44
Location: 2 Prev | Next Part: 15644178 *Qty: 2 SCREW Superseded
Location: 3 Prev | Next Part: 10519206 *Qty: 2 WASHER Superseded
Location: 4 Prev | Next Part: 14115980 *Qty: 2 BLOCK $0.90
Location: 5 Prev | Next Part: 62136600 *Qty: 1 CENTRAL INSERT $581.90
Location: 5 Prev | Next Part: 62136900 *Qty: 1 LINING $4.42
Location: 6 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: 12605270 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 14496301 *Qty: 2 WASHER $0.91
Location: 9 Prev | Next Part: 62186800 *Qty: 2 AIR OUTLET PLATE $462.65
Location: 10 Prev | Next Part: 62880800 *Qty: 2 AIR OUTLET GRID SHIELD $16.07
Location: 11 Prev | Next Part: 63291400 *Qty: 6 SCREW Call
Location: 12 Prev | Next Part: 63622400 *Qty: 6 WASHER $10.71
Location: 13 Prev | Next Part: 62880900 *Qty: 6 SCREW-COVER PLATE $7.95
Location: 14 Prev | Next Part: 63014000 *Qty: 1 R.H. ANGLE PIECE SUPPORT $1.17
Location: 15 Prev | Next Part: 15644101 *Qty: 1 SCREW $0.91
Location: 16 Prev | Next Part: 60674700 *Qty: 1 BRACKET $0.90
Location: 17 Prev | Next Part: 622234.. *Qty: 1 LINING Call
Location: 17 Prev | Next Part: 622233.. *Qty: 1 R.H. LATERAL LOWER INSERT Call
Location: 18 Prev | Next Part: 622228.. *Qty: 1 CENTRAL LOWER INSERT Call
Location: 18 Prev | Next Part: 622229.. *Qty: 1 LINING Call
Location: 19 Prev | Next Part: 622238.. *Qty: 1 L.H. LATERAL LOWER INSERT Call
Location: 19 Prev | Next Part: 622239.. *Qty: 1 LINING Call
Location: 20 Prev | Next Part: 62141000 *Qty: 1 COVERED DOOR Call
Location: 20 Prev | Next Part: 62141300 *Qty: 1 LINING $12.92
Location: 21 Prev | Next Part: 62141500 *Qty: 1 DOOR INNER OVERLAP $123.27
Location: 22 Prev | Next Part: 62990500 *Qty: 6 NUT $1.45
Location: 23 Prev | Next Part: 62989700 *Qty: 2 SPACER BUSHING $1.99
Location: 23 Prev | Next Part: 62989800 *Qty: 4 SPACER BUSHING $1.92
Location: 24 Prev | Next Part: 14624587 *Qty: 2 RUBBER Call
Location: 25 Prev | Next Part: 62453200 *Qty: 2 STOP PIN $9.17
Location: 26 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 62141600 *Qty: 1 LID HINGE $195.25
Location: 28 Prev | Next Part: 13274472 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 12637806 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 31 Prev | Next Part: 14496301 *Qty: 4 WASHER $0.91
Location: 32 Prev | Next Part: 145449 *Qty: 1 DASHBOARD GLOVE BOX CABLES $36.17
Location: 33 Prev | Next Part: 141013 *Qty: 1 MICRO-SWITCH $51.06
Location: 34 Prev | Next Part: 15639901 *Qty: 2 SCREW Call
Location: 35 Prev | Next Part: 10418301 *Qty: 2 BRACKET Call
Location: 36 Prev | Next Part: 13831801 *Qty: 2 NUT $0.90
Location: 37 Prev | Next Part: 62138400 *Qty: 1 BOX INNER INSERT $138.73
Location: 38 Prev | Next Part: 14440927 *Qty: 2 SCREW $2.61
Location: 39 Prev | Next Part: 14507897 *Qty: 1 PLUG $2.90
Location: 40 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $16.31
Location: 41 Prev | Next Part: 139955 *Qty: 1 SOCKET $12.07
Location: 42 Prev | Next Part: 62830600 *Qty: 1 DOOR GAS SPRING
Not as spare part With the box inner insert part. 37
Call
Location: 43 Prev | Next Part: - *Qty: 1 FORK Call
Location: 44 Prev | Next Part: 62162800 *Qty: 1 PIN $8.05
Location: 45 Prev | Next Part: 11087576 *Qty: 1 FLEXIBLE RING $0.90
Location: 46 Prev | Next Part: 62831000 *Qty: 1 CLIP $0.90
Location: 47 Prev | Next Part: 63287400 *Qty: 1 COVERED R.H. LATERAL INSERT $633.52
Location: 47 Prev | Next Part: 62137300 *Qty: 1 LINING $3.90
Location: 48 Prev | Next Part: 63287500 *Qty: 1 COVERED L.H. LATERAL INSERT $414.99
Location: 48 Prev | Next Part: 62137700 *Qty: 1 LINING $5.96
Location: 49 Prev | Next Part: 20297602 *Qty: 1 SCREW $13.17
Location: 50 Prev | Next Part: 63291400 *Qty: 2 SCREW Call
Location: 51 Prev | Next Part: 63345700 *Qty: 2 WASHER $0.90
Location: 52 Prev | Next Part: 15785101 *Qty: 4 SCREW Call
Location: 53 Prev | Next Part: 62453200 *Qty: 2 STOP PIN $9.17
Location: 54 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
