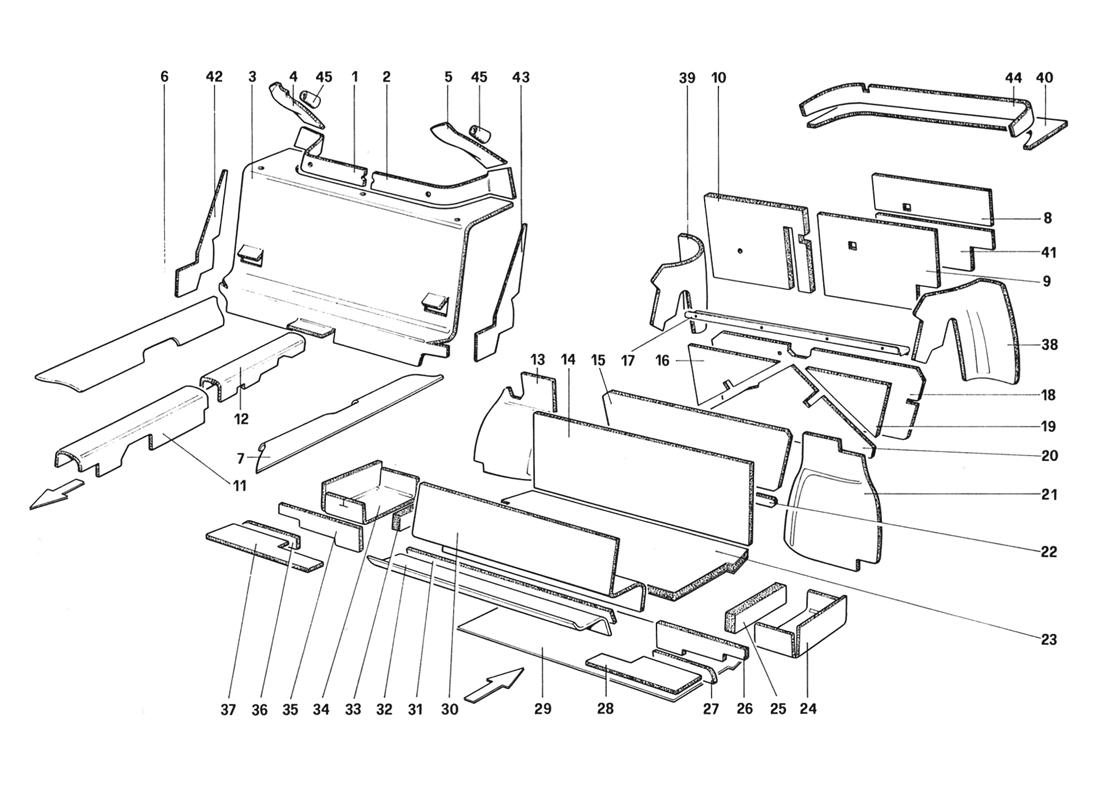

LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 - NOT FOR US - AUS - CH87 - SA - J)

Go to Split View

LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 - NOT FOR US - AUS - CH87 - SA - J)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61984000 *Qty: 1 Insulation $77.99
Location: 2 Prev | Next Part: 61984100 *Qty: 1 Insulation $77.99
Location: 3 Prev | Next Part: 61984200 *Qty: 1 Insulation GTB $535.18
Location: 3 Prev | Next Part: 61986800 *Qty: 1 Insulation GTS until 1987 $583.14
Location: 3 Prev | Next Part: 62488100 *Qty: 1 Insulation GTS from 1988 $698.34
Location: 4 Prev | Next Part: 61984300 *Qty: 1 Insulation $16.82
Location: 5 Prev | Next Part: 61984400 *Qty: 1 Insulation $16.82
Location: 6 Prev | Next Part: 61984500 *Qty: 1 Insulation GTB $64.80
Location: 7 Prev | Next Part: 61984600 *Qty: 1 Insulation GTB $64.80
Location: 8 Prev | Next Part: 61985800 *Qty: 1 Insulation GTB $57.60
Location: 9 Prev | Next Part: 61985900 *Qty: 1 Insulation GTB - LHD $78.25
Location: 9 Prev | Next Part: 61987300 *Qty: 1 Insulation GTS - LHD $351.57
Location: 9 Prev | Next Part: 61990400 *Qty: 1 Insulation GTB - RHD $73.22
Location: 9 Prev | Next Part: 61990300 *Qty: 1 Insulation GTS - RHD $362.37
Location: 10 Prev | Next Part: 61990500 *Qty: 1 Insulation GTB - RHD $120.02
Location: 10 Prev | Next Part: 61985700 *Qty: 1 Insulation GTB - LHD $125.73
Location: 11 Prev | Next Part: 60109006 *Qty: 1 Insulation LHD $218.40
Location: 11 Prev | Next Part: 60218807 *Qty: 1 Insulation RHD $189.82
Location: 12 Prev | Next Part: 61860500 *Qty: 1 Insulation RHD Call
Location: 12 Prev | Next Part: 61860101 *Qty: 1 Insulation LHD Call
Location: 13 Prev | Next Part: 61798900 *Qty: 1 Insulation $32.16
Location: 14 Prev | Next Part: 61798800 *Qty: 1 Insulation Call
Location: 15 Prev | Next Part: 61799700 *Qty: 1 Insulation $79.93
Location: 16 Prev | Next Part: 61275800 *Qty: 1 Insulation $19.68
Location: 17 Prev | Next Part: 61830800 *Qty: 1 Insulation fixing support $53.07
Location: 18 Prev | Next Part: 61823600 *Qty: 1 Insulation Call
Location: 19 Prev | Next Part: 61275600 *Qty: 1 insulation $22.82
Location: 20 Prev | Next Part: 61275700 *Qty: 1 Insulation $54.72
Location: 21 Prev | Next Part: 61799000 *Qty: 1 Insulation $36.74
Location: 22 Prev | Next Part: 61799400 *Qty: 1 Insulation $72.49
Location: 23 Prev | Next Part: 61818900 *Qty: 1 Insulation $843.52
Location: 24 Prev | Next Part: 61799100 *Qty: 1 Insulation $42.26
Location: 25 Prev | Next Part: 61819000 *Qty: 1 Insulation $18.50
Location: 26 Prev | Next Part: 61799600 *Qty: 1 Insulation $19.44
Location: 27 Prev | Next Part: 61876000 *Qty: 1 Insulation $7.93
Location: 28 Prev | Next Part: 61875800 *Qty: 1 Insulation $23.05
Location: 29 Prev | Next Part: 61875400 *Qty: 1 Insulation $345.57
Location: 30 Prev | Next Part: 61799300 *Qty: 1 Insulation $114.00
Location: 31 Prev | Next Part: 61875900 *Qty: 1 Insulation $19.44
Location: 32 Prev | Next Part: 61875600 *Qty: 1 Insulation $167.76
Location: 33 Prev | Next Part: 61819100 *Qty: 1 Insulation $18.50
Location: 34 Prev | Next Part: 61799200 *Qty: 1 Insulation $47.54
Location: 35 Prev | Next Part: 61799500 *Qty: 1 Insulation $19.44
Location: 36 Prev | Next Part: 61876100 *Qty: 1 Insulation $7.93
Location: 37 Prev | Next Part: 61875700 *Qty: 1 Insulation $19.94
Location: 38 Prev | Next Part: 61278500 *Qty: 1 R.H. insulation - C6 Call
Location: 39 Prev | Next Part: 61278600 *Qty: 1 L.H. insulation - C6 Call
Location: 40 Prev | Next Part: 61985100 *Qty: 1 Insulation GTB $184.07
Location: 40 Prev | Next Part: 61987100 *Qty: 1 Insulation GTS Call
Location: 41 Prev | Next Part: 61984800 *Qty: 1 Insulation GTB $47.03
Location: 42 Prev | Next Part: 61987000 *Qty: 1 Insulation GTS $57.13
Location: 43 Prev | Next Part: 61986900 *Qty: 1 Insulation GTS $57.13
Location: 44 Prev | Next Part: 61985200 *Qty: 1 Insulation Call
Location: 45 Prev | Next Part: 61985300 *Qty: 2 Insulation $59.04

* Quantity shown indicates the number of pieces used in the diagram.
