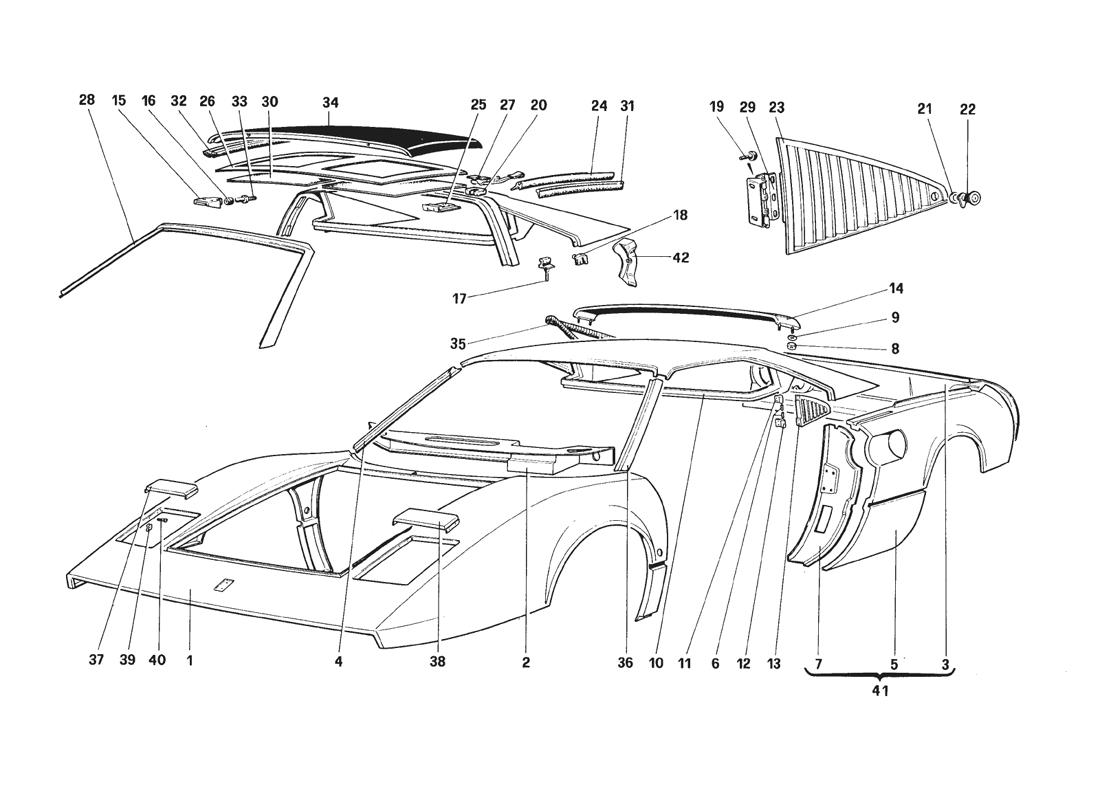

BODY SHELL - OUTER ELEMENTS

Go to Split View

BODY SHELL - OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61778000 *Qty: 1 Front panel. US - J - SA $4,396.48
Location: 1 Prev | Next Part: 61751200 *Qty: 1 Front panel. Not for US - J - SA Call
Location: 2 Prev | Next Part: 61851100 *Qty: 1 (V) Panel RHD $168.90
Location: 2 Prev | Next Part: 62534800 *Qty: 1 (N) Panel RHD $292.05
Location: 2 Prev | Next Part: 61797700 *Qty: 1 (V) Panel LHD $208.74
Location: 3 Prev | Next Part: 61109600 *Qty: 1 Rear panel - Not for US - J - SA Superseded
Location: 3 Prev | Next Part: 61874600 *Qty: 1 Rear panel - US - J - SA $3,367.84
Location: 4 Prev | Next Part: 61141100 *Qty: 1 Panel for R.H. post - GTB $172.98
Location: 5 Prev | Next Part: 60359205 *Qty: 1 L.H. rear fender - GTB - Nor for US - AUS - C7 - J - SA - Until car no. 69367 $4,118.13
Location: 5 Prev | Next Part: 62352100 *Qty: 1 L.H. rear fender - GTB - Not for US - AUS - C7 - J - SA - From car no. 69369 $6,274.53
Location: 5 Prev | Next Part: 60359106 *Qty: 1 R.H. rear fender - GTB - Not for AUS - US - C7 - J - SA - Until car no. 69367 $4,118.13
Location: 5 Prev | Next Part: 62354400 *Qty: 1 L.H. rear fender - GTB - US - AUS - C7 - J - SA - C8 - From car no. 69369 Superseded
Location: 5 Prev | Next Part: 60585800 *Qty: 1 L.H. rear fender - GTB - US - AUS - J - SA - C8 - Until car no. 69367 Superseded
Location: 5 Prev | Next Part: 60586000 *Qty: 1 L.H. rear fender - GTS - AUS - US - C7 - C8 Call
Location: 5 Prev | Next Part: 60359007 *Qty: 1 L.H. rear fender -GTS - Not for US - AUS - C7 - C8 $2,868.62
Location: 5 Prev | Next Part: 62352000 *Qty: 1 R.H. rear fender - GTB - Not for AUS - US - C7 - J - SA - From car no. 69369 $6,629.98
Location: 5 Prev | Next Part: 62354300 *Qty: 1 R.H. rear fender - GTB - US - AUS - C7 - J - SA - From car no. 69369 Superseded
Location: 5 Prev | Next Part: 60358900 *Qty: 1 R.H. rear fender - GTS - Not for US - AUS - C7 - C8 $2,859.38
Location: 5 Prev | Next Part: 60585900 *Qty: 1 R.H. rear fender - GTS - AUS - US - C7 - C8 Superseded
Location: 5 Prev | Next Part: 60585700 *Qty: 1 R.H. rear fender - GTB - US - AUS - J - SA - Until car no. 69367 Superseded
Location: 6 Prev | Next Part: 60042108 *Qty: 2 Pin - GTB $2.11
Location: 7 Prev | Next Part: 60891000 *Qty: 1 R.H. pilar for fender - RHD $206.29
Location: 7 Prev | Next Part: 60216900 *Qty: 1 L.H. pilar for fender- LHD $141.49
Location: 7 Prev | Next Part: 60891100 *Qty: 1 L.H. pilar for fender- RHD $150.11
Location: 7 Prev | Next Part: 60216801 *Qty: 1 R.H. pilar for fender - LHD $141.49
Location: 8 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 9 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 10 Prev | Next Part: 60214806 *Qty: 1 Roof panel - GTB $6,956.23
Location: 11 Prev | Next Part: 60040805 *Qty: 1 Upple hinge - GTB $11.77
Location: 12 Prev | Next Part: 60040706 *Qty: 1 Lower hinge - GTB $12.23
Location: 13 Prev | Next Part: 60370004 *Qty: 1 R.H. grill - GTB $246.76
Location: 13 Prev | Next Part: 60337409 *Qty: 1 L.H. grill - GTB $246.76
Location: 14 Prev | Next Part: 61024700 *Qty: 1 Sleek spoyler $1,049.34
Location: 14 Prev | Next Part: 61290200 *Qty: 1 Rough spoyler $1,551.88
Location: 15 Prev | Next Part: 60336807 *Qty: 2 Front bracket - GTS $58.17
Location: 16 Prev | Next Part: 60433604 *Qty: 2 Protection for pin - GTS $40.96
Location: 17 Prev | Next Part: 60551400 *Qty: 2 Central grommet - GTS $49.95
Location: 18 Prev | Next Part: 61989600 *Qty: 2 Rear grommet - GTS - Until car 76681 only on R.H. side Call
Location: 19 Prev | Next Part: 60892600 *Qty: 4 Grommet - GTS $12.40
Location: 20 Prev | Next Part: 60395506 *Qty: 2 Handle protection - GTS $8.66
Location: 21 Prev | Next Part: 61819400 *Qty: 2 Ring nut for grill - GTS $3.57
Location: 22 Prev | Next Part: 61819300 *Qty: 2 Block for grill - GTS '' Superseded
Location: 23 Prev | Next Part: 61818700 *Qty: 1 L.H. grill - GTS $359.97
Location: 23 Prev | Next Part: 61818600 *Qty: 1 R.H. grill - GTS $359.97
Location: 24 Prev | Next Part: 60608400 *Qty: 1 L.H. gutter - GTS $324.90
Location: 24 Prev | Next Part: 60608300 *Qty: 1 R.H. gutter - GTS $324.90
Location: 25 Prev | Next Part: 60500500 *Qty: 2 Rear bracket - GTS Call
Location: 26 Prev | Next Part: 61203000 *Qty: 1 Covering - GTS $283.00
Location: 27 Prev | Next Part: 60421500 *Qty: 2 Handle - GTS $538.91
Location: 28 Prev | Next Part: 60872700 *Qty: 1 Framework for windshield - GTS $784.46
Location: 29 Prev | Next Part: 60325305 *Qty: 2 Grill hinge - GTS $146.70
Location: 30 Prev | Next Part: 61202900 *Qty: 1 L.H. covering - GTS $137.19
Location: 30 Prev | Next Part: 61202800 *Qty: 1 R.H. covering - GTS $137.19
Location: 31 Prev | Next Part: 60608500 *Qty: 2 Gasket - GTS Call
Location: 32 Prev | Next Part: 60398104 *Qty: 2 Gasket - GTS - To exhaustion
Car 68345
Call
Location: 32 Prev | Next Part: 62341800 *Qty: 1 L.H. gasket - GTS - After exhaustion 60398104 $133.92
Location: 32 Prev | Next Part: 62341700 *Qty: 1 R.H. gasket - GTS - After exhaustion 60398104 $133.92
Location: 33 Prev | Next Part: 60189008 *Qty: 2 Front pin - GTS $45.00
Location: 34 Prev | Next Part: 61128700 *Qty: 1 Hard top - GTS $6,317.69
Location: 35 Prev | Next Part: 60528300 *Qty: 2 Gasket $11.56
Location: 36 Prev | Next Part: 61141200 *Qty: 1 Panel for L.H. post - GTB $199.47
Location: 37 Prev | Next Part: 61810800 *Qty: 1 R.H. cover Superseded
Location: 38 Prev | Next Part: 61810900 *Qty: 1 L.H. cover Superseded
Location: 39 Prev | Next Part: 20273603 *Qty: 8 Clip Call
Location: 40 Prev | Next Part: 15903878 *Qty: 8 Screw $0.90
Location: 41 Prev | Next Part: 61874500 *Qty: 1 Rear panel complete - GTB - US - J - SA - Until car no. 69367 $4,093.22
Location: 41 Prev | Next Part: 61874800 *Qty: 1 Rear panel complete - GTS - US - J - SA $5,518.39
Location: 41 Prev | Next Part: 62346200 *Qty: 1 Rear panel complete - GTB - Not for US - J - SA - From car no. 69369 Call
Location: 41 Prev | Next Part: 61901500 *Qty: 1 Rear panel complete - GTB - Not for US - J - SA - Until car no. 69367 Call
Location: 41 Prev | Next Part: 62348500 *Qty: 1 Rear panel complete - GTB - US - J - SA - From car no. 69369 Call
Location: 41 Prev | Next Part: 61901700 *Qty: 1 Rear panel complete - GTS - Not for US - J - SA $7,597.19
Location: 42 Prev | Next Part: 62460200 *Qty: 1 L.H. Rear grommet - GTS - From car no. 76681 $17.20

* Quantity shown indicates the number of pieces used in the diagram.
