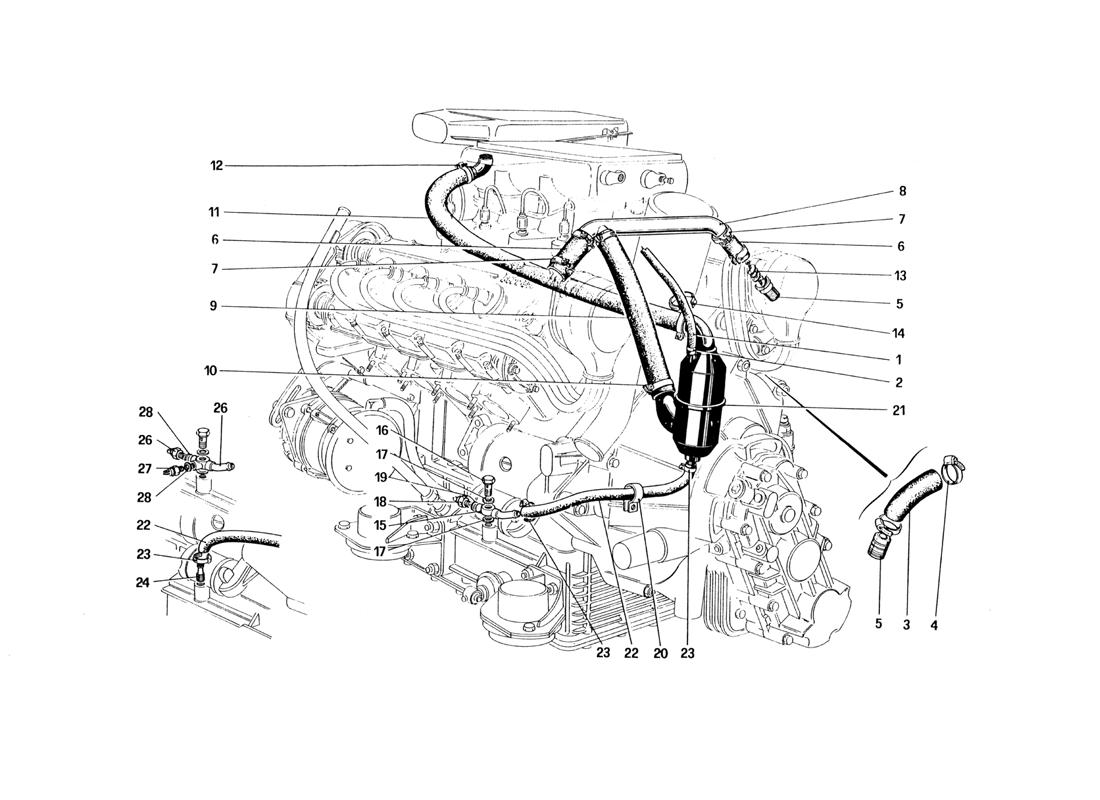

BLOW - BY SYSTEM

Go to Split View

BLOW - BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 129109 *Qty: 1 Hose from vapor separator to air delivery pipe
For U.S. Version
$8.16
Location: 1 Prev | Next Part: 111188 *Qty: 1 Hose from separator to air intake
Not for U.S. Version
Superseded
Location: 2 Prev | Next Part: 12171080 *Qty: 2 Clamp Call
Location: 3 Prev | Next Part: 111218 *Qty: 1 Sleeve $842.42
Location: 4 Prev | Next Part: 10176280 *Qty: 2 Clamp Call
Location: 5 Prev | Next Part: 118238 *Qty: 1 Union Call
Location: 6 Prev | Next Part: 116783 *Qty: 2 Sleeve $41.41
Location: 7 Prev | Next Part: 10176180 *Qty: 4 Clamp Call
Location: 8 Prev | Next Part: 118312 *Qty: 1 3 way pipe $79.25
Location: 9 Prev | Next Part: 118858 *Qty: 1 Tube from 3 way pipe to vapour separator Call
Location: 10 Prev | Next Part: 10176280 *Qty: 2 Clamp Call
Location: 11 Prev | Next Part: 118858 *Qty: 1 Tube from vapor separator to oil sump Call
Location: 12 Prev | Next Part: 10176280 *Qty: 2 Clamp Call
Location: 13 Prev | Next Part: 118237 *Qty: 2 Splash screen Call
Location: 14 Prev | Next Part: 14560287 *Qty: 3 Clamp Superseded
Location: 15 Prev | Next Part: 121842 *Qty: 1 Revolving device
Not for CH
$118.42
Location: 16 Prev | Next Part: 121424 *Qty: 1 Union $13.35
Location: 17 Prev | Next Part: 10282460 *Qty: 2 Gasket $1.17
Location: 18 Prev | Next Part: 115652 *Qty: 1 Bimetal thermostat
Not for CH
Call
Location: 19 Prev | Next Part: 10260068 *Qty: 1 Gasket-
Not for CH
Call
Location: 20 Prev | Next Part: 10480480 *Qty: 1 Pipe securing clamp Call
Location: 21 Prev | Next Part: 128532 *Qty: 1 Oil vapour separator $218.02
Location: 22 Prev | Next Part: 106338 *Qty: 1 Hose from vapor separator Call
Location: 23 Prev | Next Part: 12178480 *Qty: 2 Clamp Call
Location: 24 Prev | Next Part: 115834 *Qty: 1 Union
Not for CH and U.S. Version
Call
Location: 25 Prev | Next Part: 128650 *Qty: 1 Revolving device
For CH
Call
Location: 26 Prev | Next Part: 125857 *Qty: 1 Thermostat
For CH
Call
Location: 27 Prev | Next Part: 127155 *Qty: 1 Thermostat
For CH
$16.98
Location: 28 Prev | Next Part: 10260060 *Qty: 2 Gasket
For CH
$0.95

* Quantity shown indicates the number of pieces used in the diagram.
