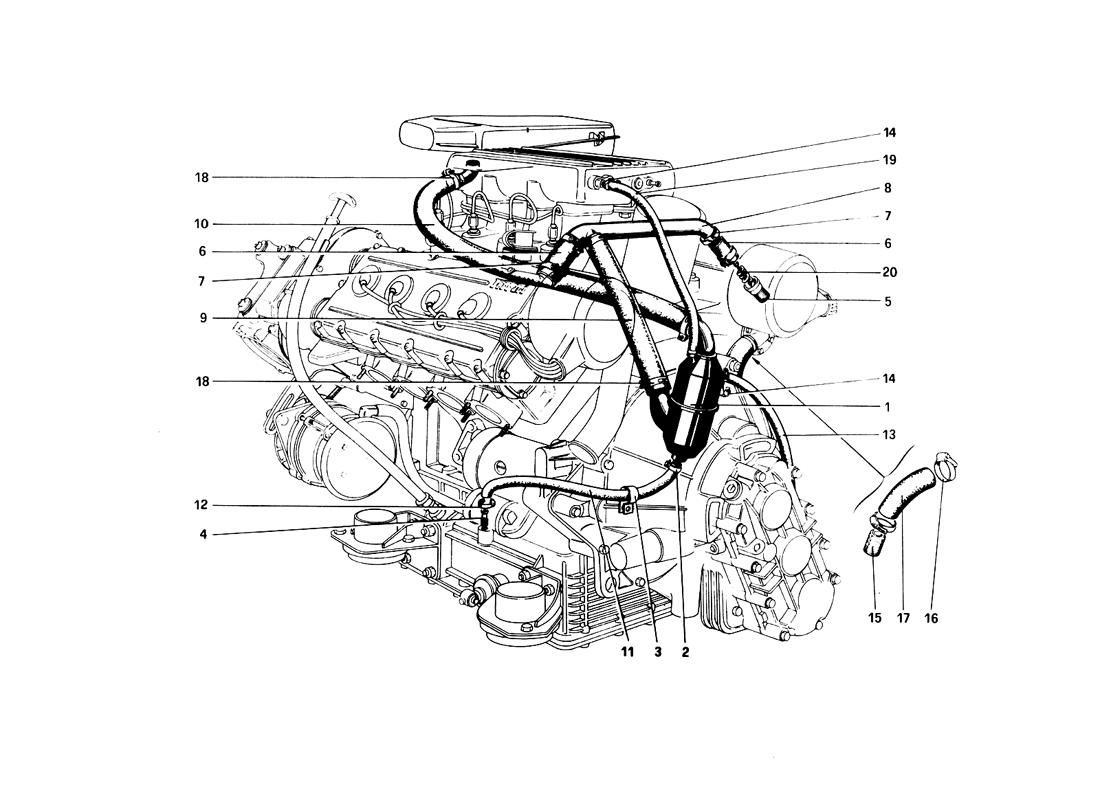

BLOW - BY SYSTEM

Go to Split View

BLOW - BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 126032 *Qty: 1 Oil separator
From engine no. 2763
$260.32
Location: 1 Prev | Next Part: 118478 *Qty: 1 Oil vapour separator
On exhaustion use no. 119065, up to engine no. 2762
Superseded
Location: 2 Prev | Next Part: 10168790 *Qty: 1 Clamp Call
Location: 3 Prev | Next Part: 10450490 *Qty: 1 Pipe securing clamp $0.90
Location: 4 Prev | Next Part: 115934 *Qty: 1 Union $9.58
Location: 5 Prev | Next Part: 119236 *Qty: 1 Union on head covers $10.49
Location: 6 Prev | Next Part: 116783 *Qty: 2 Sleeve $42.71
Location: 7 Prev | Next Part: 10169090 *Qty: 4 Clamp Call
Location: 8 Prev | Next Part: 118312 *Qty: 1 3 - way pipe $81.73
Location: 9 Prev | Next Part: 118958 *Qty: 1 Tube from 3 - way pipe to vapour separator Call
Location: 10 Prev | Next Part: 118959 *Qty: 1 Tube from vapour separator to air inlet Call
Location: 11 Prev | Next Part: 106338 *Qty: 1 Tube from vapour separator to oil sump Call
Location: 12 Prev | Next Part: 10168890 *Qty: 1 Clamp Call
Location: 13 Prev | Next Part: 115366 *Qty: 1 Breather pipe on clutch housing
Up to engine no. 2762
Call
Location: 14 Prev | Next Part: 12179090 *Qty: 4 Clamp
From engine no. 2763 q = 2
Superseded
Location: 15 Prev | Next Part: 102705 *Qty: 1 Union $33.98
Location: 16 Prev | Next Part: 10169290 *Qty: 2 Clamp $11.20
Location: 17 Prev | Next Part: 118960 *Qty: 1 Sleeve Call
Location: 18 Prev | Next Part: 10169290 *Qty: 4 Clamp $11.20
Location: 19 Prev | Next Part: 111199 *Qty: 1 Hose from separator to air intake $11.20
Location: 20 Prev | Next Part: 119237 *Qty: 2 Splash screen $0.91

* Quantity shown indicates the number of pieces used in the diagram.
