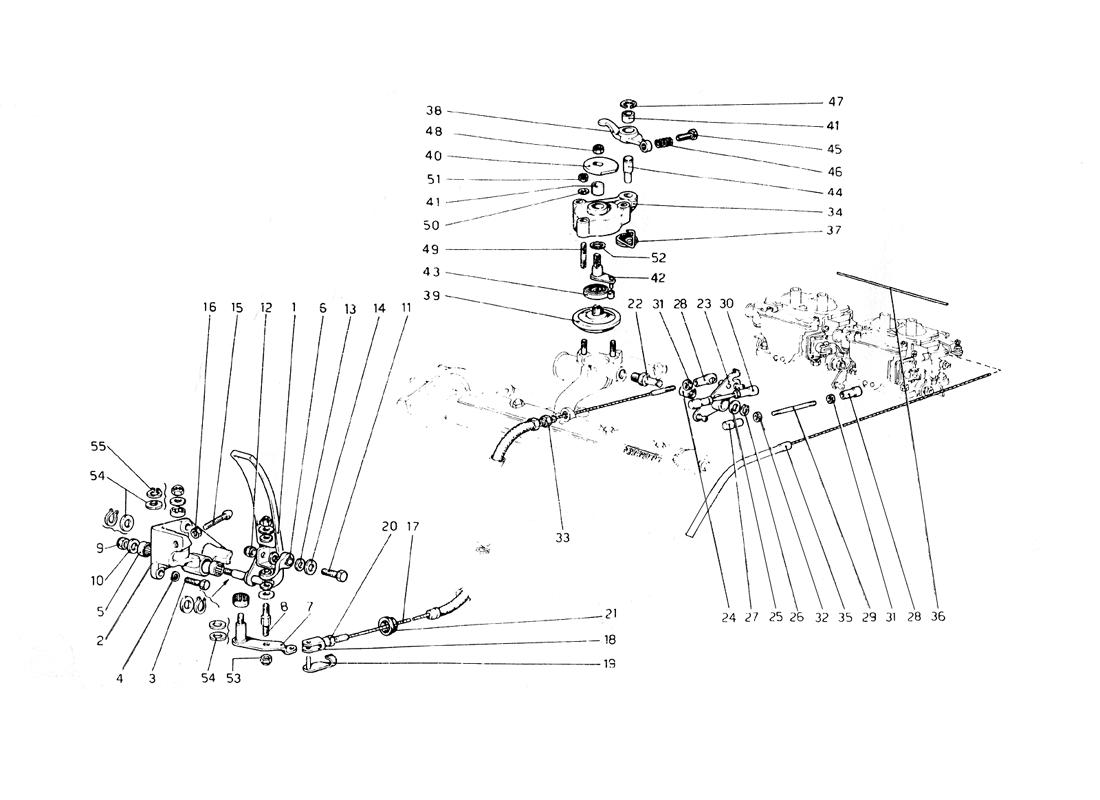

THROTTLE CONTROL

Go to Split View

THROTTLE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 103329 *Qty: 1 Pedale acceleratore
Dopo esaur vale n. 108578
Superseded
Location: 2 Prev | Next Part: 110932 *Qty: 1 Supporto pedale acceleratore $255.83
Location: 4 Prev | Next Part: 12601371 *Qty: 3 Rondella elastica Superseded
Location: 6 Prev | Next Part: 105237 *Qty: 1 Puntone $116.37
Location: 8 Prev | Next Part: 105679 *Qty: 1 Colonneila sulla ieva rinvio Call
Location: 10 Prev | Next Part: 102683 *Qty: 2 Rondella
Solo con pedale n. 103330
$13.65
Location: 11 Prev | Next Part: 10902621 *Qty: 1 Bullone Superseded
Location: 13 Prev | Next Part: 10519401 *Qty: 4 Rondella di rasamento Superseded
Location: 15 Prev | Next Part: 105232 *Qty: 1 Registro $4.93
Location: 17 Prev | Next Part: 105574 *Qty: 1 Cavo comando acceleratore $36.62
Location: 19 Prev | Next Part: 100656 *Qty: 1 Perno con rnolletta $2.72
Location: 21 Prev | Next Part: 105369 *Qty: 1 Passafilo $1.76
Location: 23 Prev | Next Part: 107790 *Qty: 1 Leva comando carburatori $208.58
Location: 25 Prev | Next Part: 10730501 *Qty: 1 Rondella Superseded
Location: 27 Prev | Next Part: 105619 *Qty: 2 Testma $104.18
Location: 29 Prev | Next Part: 103904 *Qty: 2 Asta filettata $31.93
Location: 30 Prev | Next Part: 103905 *Qty: 1 Assieme asta comando carburatori posteriore
Non a ricambio
Call
Location: 31 Prev | Next Part: 15896411 *Qty: 3 Controdado Superseded
Location: 33 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 35 Prev | Next Part: 60160405 *Qty: 1 Cavo innesto starter Superseded
Location: 37 Prev | Next Part: 107722 *Qty: 1 Molla richiamo bilanciere $15.62
Location: 39 Prev | Next Part: 107817 *Qty: 1 Corpo tenuta spirale $99.84
Location: 41 Prev | Next Part: 100958 *Qty: 1 Bussola $10.41
Location: 43 Prev | Next Part: 107821 *Qty: 1 Lamina termostatica Call
Location: 45 Prev | Next Part: 107823 *Qty: 1 Vite registro $4.08
Location: 47 Prev | Next Part: 11087975 *Qty: 1 Anello elastico Superseded
Location: 49 Prev | Next Part: 11501021 *Qty: 3 THREADED STUD $0.90
Location: 51 Prev | Next Part: 10720121 *Qty: 3 Dado $0.90
Location: 53 Prev | Next Part: 16104411 *Qty: 1 Dado $0.90
Location: 55 Prev | Next Part: 11066075 *Qty: 3 Anello seeger
Solo con pedale n. 108578
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
