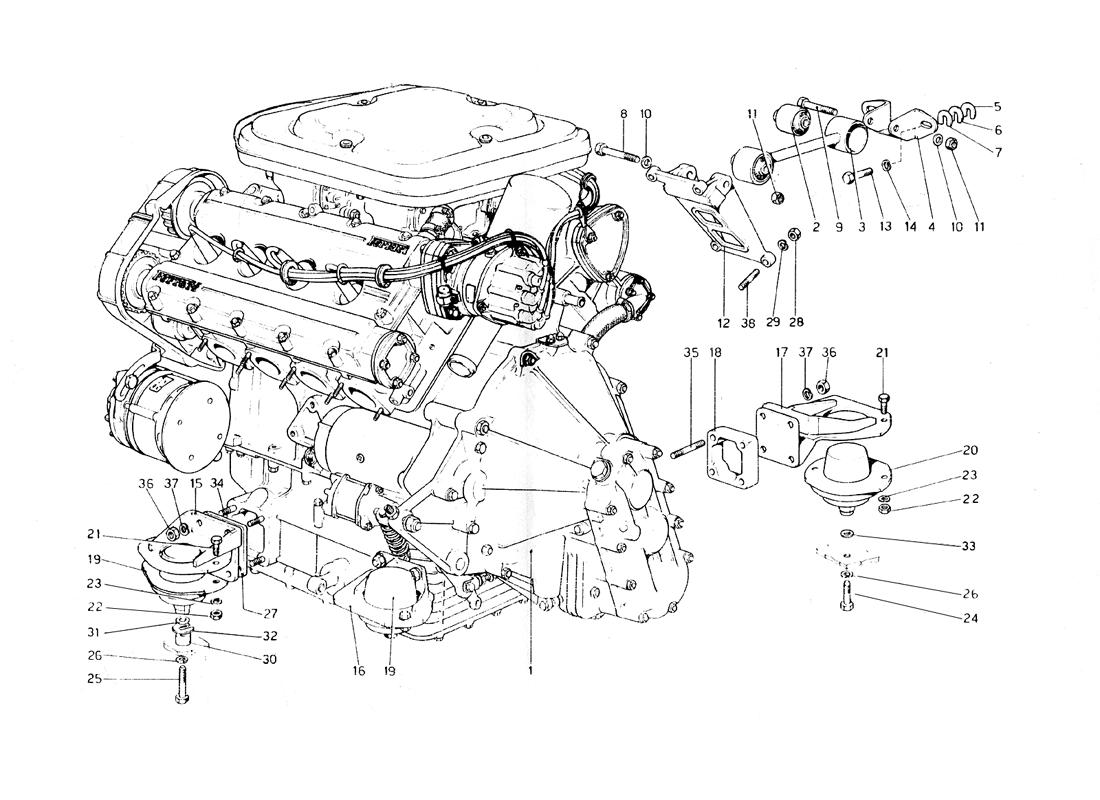

ENGINE - GEARBOX AND SUPPORTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: - *Qty: 1 Mo to re compieto Call
Location: 1 Prev | Next Part: - *Qty: 1 Motopropuisore complete
Vedereo foglioio A deicomplesivi forniti a ricambio
Call
Location: 2 Prev | Next Part: 106418 *Qty: 2 Tampone per tirante $82.78
Location: 3 Prev | Next Part: 106468 *Qty: 1 Tirante di reazione
Per USA-AUS-J n. 107720
$247.48
Location: 4 Prev | Next Part: 106469 *Qty: 1 Supporto per tirante
Vale solo per coperchio testa n. 107672
$16.81
Location: 5 Prev | Next Part: 106470 *Qty: 1 Rondella di rasamento mm. 1 (di eventuale montaggio) $10.14
Location: 6 Prev | Next Part: 106471 *Qty: 1 Rondella di rasamento mm. 2 (di eventuale montaggio) $11.11
Location: 7 Prev | Next Part: 106472 *Qty: 2 Rondella di rasamento $13.03
Location: 8 Prev | Next Part: 15541621 *Qty: 1 Bullone $34.76
Location: 9 Prev | Next Part: 15541321 *Qty: 1 Rullone $1.38
Location: 10 Prev | Next Part: 13550521 *Qty: 2 Rondella $0.90
Location: 11 Prev | Next Part: 16105111 *Qty: 2 Dado Superseded
Location: 12 Prev | Next Part: 107313 *Qty: 1 Supporto sul ccperchio testa Dx. Call
Location: 13 Prev | Next Part: 13830521 *Qty: 2 Bullone $0.93
Location: 14 Prev | Next Part: 12638621 *Qty: 2 Rondella $0.90
Location: 15 Prev | Next Part: 107527 *Qty: 2 Supporto Dx. sulla scatola cambio $79.37
Location: 16 Prev | Next Part: 107528 *Qty: 1 Supporto anteriore Sx. $70.03
Location: 17 Prev | Next Part: 107529 *Qty: 1 Supporto posteriore Sx. $79.85
Location: 18 Prev | Next Part: 107530 *Qty: 2 Distanziale per supporti posteriori $264.40
Location: 19 Prev | Next Part: 106034 *Qty: 2 Tampone VIBRACHOC .interiore Superseded
Location: 20 Prev | Next Part: 106035 *Qty: 2 Tampone VIBKACHOC .posteriore Superseded
Location: 21 Prev | Next Part: 16043421 *Qty: 8 Bullone Superseded
Location: 22 Prev | Next Part: 16100811 *Qty: 8 Dado Superseded
Location: 23 Prev | Next Part: 106852 *Qty: 8 Rondella Superseded
Location: 24 Prev | Next Part: 106527 *Qty: 2 Vite per tamponi posteriori $4.90
Location: 25 Prev | Next Part: 105799 *Qty: 2 Vite per tamponi anteriori Call
Location: 26 Prev | Next Part: 106854 *Qty: 4 Rondella Superseded
Location: 27 Prev | Next Part: 107531 *Qty: 2 Distanziale per supporti anteriori $32.46
Location: 28 Prev | Next Part: 101239 *Qty: 4 Dado $1.97
Location: 29 Prev | Next Part: 12601271 *Qty: 4 Rondella Superseded
Location: 30 Prev | Next Part: 107424 *Qty: 2 Distanziale tamponi anteriori Call
Location: 31 Prev | Next Part: 12646901 *Qty: 4 Rondella di rasamento $1.11
Location: 32 Prev | Next Part: 106029 *Qty: 4 Rondella di spessore (di eventuale montaggio) $7.54
Location: 33 Prev | Next Part: 12646901 *Qty: 4 Rondella di rasamento posteriore $1.11
Location: 34 Prev | Next Part: 13449521 *Qty: 8 Prigioniero anteriore Call
Location: 35 Prev | Next Part: 13450021 *Qty: 8 Prigioniero posteriore $0.90
Location: 36 Prev | Next Part: 12164711 *Qty: 16 Dado Superseded
Location: 37 Prev | Next Part: 10516871 *Qty: 16 Rondella $0.90
Location: 38 Prev | Next Part: 10982021 *Qty: 4 THREADED STUD $1.49

* Quantity shown indicates the number of pieces used in the diagram.
