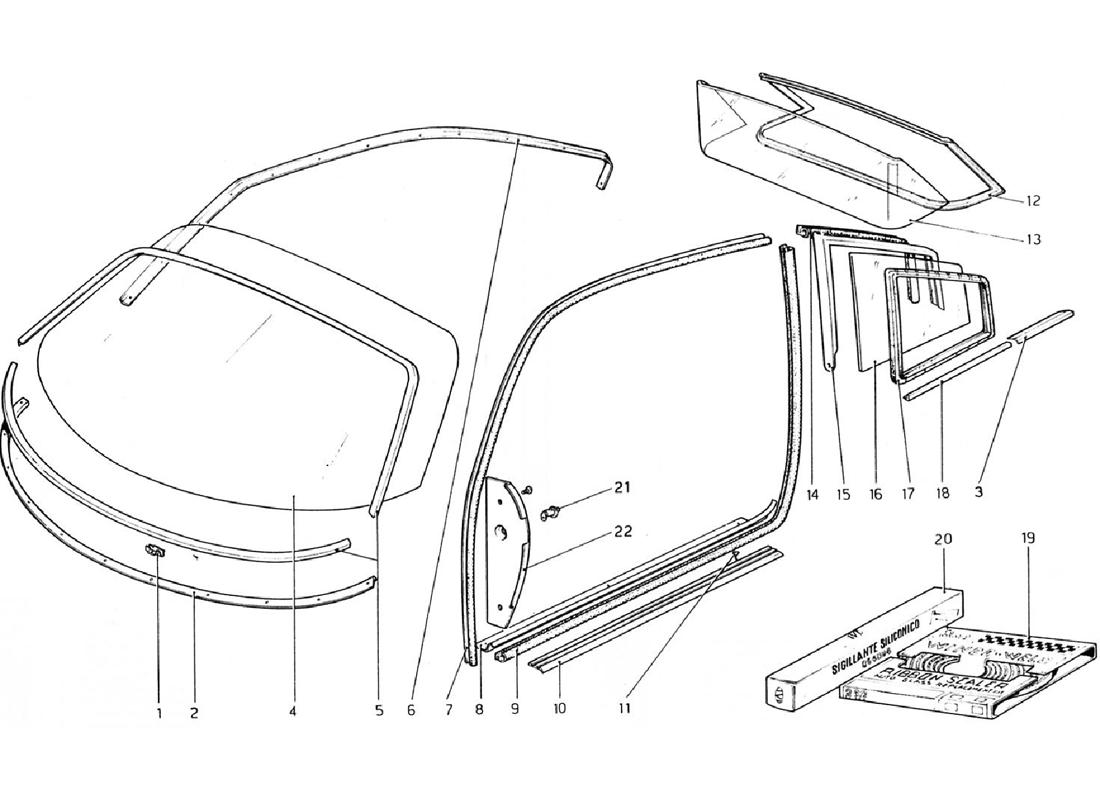

GLASSES

Go to Split View

GLASSES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 40208209 *Qty: 11 Molletta $4.52
Location: 2 Prev | Next Part: 60121506 *Qty: 1 Filetto sulla plancia $219.46
Location: 3 Prev | Next Part: 60058005 *Qty: 1 Modanatura inf. griglia Sx. $65.41
Location: 3 Prev | Next Part: 60057908 *Qty: 11 Modanatura inf. griglia Dx. $65.41
Location: 4 Prev | Next Part: 60019908 *Qty: 1 Cristallo parabrezza Call
Location: 5 Prev | Next Part: 60030806 *Qty: 1 Cornice parabrezza Superseded
Location: 6 Prev | Next Part: 60018603 *Qty: 1 Gocciolatoio laterale Dx. $581.84
Location: 6 Prev | Next Part: 60018702 *Qty: 1 Gocciolatoio laterale Sx. $554.68
Location: 7 Prev | Next Part: 60030004 *Qty: 2 Guarnizione ant. vano porta $110.04
Location: 8 Prev | Next Part: 60099207 *Qty: 1 Modanatura inf. porta Dx. $146.93
Location: 8 Prev | Next Part: 60099306 *Qty: 1 Modanatura inf. porta Sx. Call
Location: 9 Prev | Next Part: 60029907 *Qty: 2 Guarnizione post. vano porta $170.68
Location: 10 Prev | Next Part: 60116704 *Qty: 2 Modanatura sottoporta Call
Location: 11 Prev | Next Part: 17686770 *Qty: 8 Vite $0.90
Location: 12 Prev | Next Part: 60115805 *Qty: 1 Cornice lunotto Superseded
Location: 13 Prev | Next Part: 60020807 *Qty: 1 Cristallo lunotto Superseded
Location: 14 Prev | Next Part: 60155805 *Qty: 2 GASKET Call
Location: 15 Prev | Next Part: 60155702 *Qty: 1 Telaietto $759.56
Location: 15 Prev | Next Part: 60155603 *Qty: 1 Telaietto $759.56
Location: 16 Prev | Next Part: 60020708 *Qty: 1 Cristallo laterale Sx. $189.04
Location: 16 Prev | Next Part: 60020609 *Qty: 1 Cristallo laterals Dx. $189.04
Location: 17 Prev | Next Part: 60058302 *Qty: 2 Guarnizione perimetrale Dx. e Sx. Call
Location: 18 Prev | Next Part: 60058203 *Qty: 1 Modanatura inf. cristallo Sx. $129.26
Location: 18 Prev | Next Part: 60058104 *Qty: 1 Modanatura inf. cristallo Dx. $129.26
Location: 19 Prev | Next Part: 60089505 *Qty: 1 Sigillante parabrezza VINDQWELD Superseded
Location: 20 Prev | Next Part: 60156106 *Qty: 1 Cartuccia sigillante siliconico Call
Location: 21 Prev | Next Part: 60054509 *Qty: 2 Interruttore luce di cortesia Call
Location: 22 Prev | Next Part: 60119500 *Qty: 1 Riparo cornice Sx. $88.29
Location: 22 Prev | Next Part: 60119401 *Qty: 1 Riparo cornice Dx. $88.29

* Quantity shown indicates the number of pieces used in the diagram.
