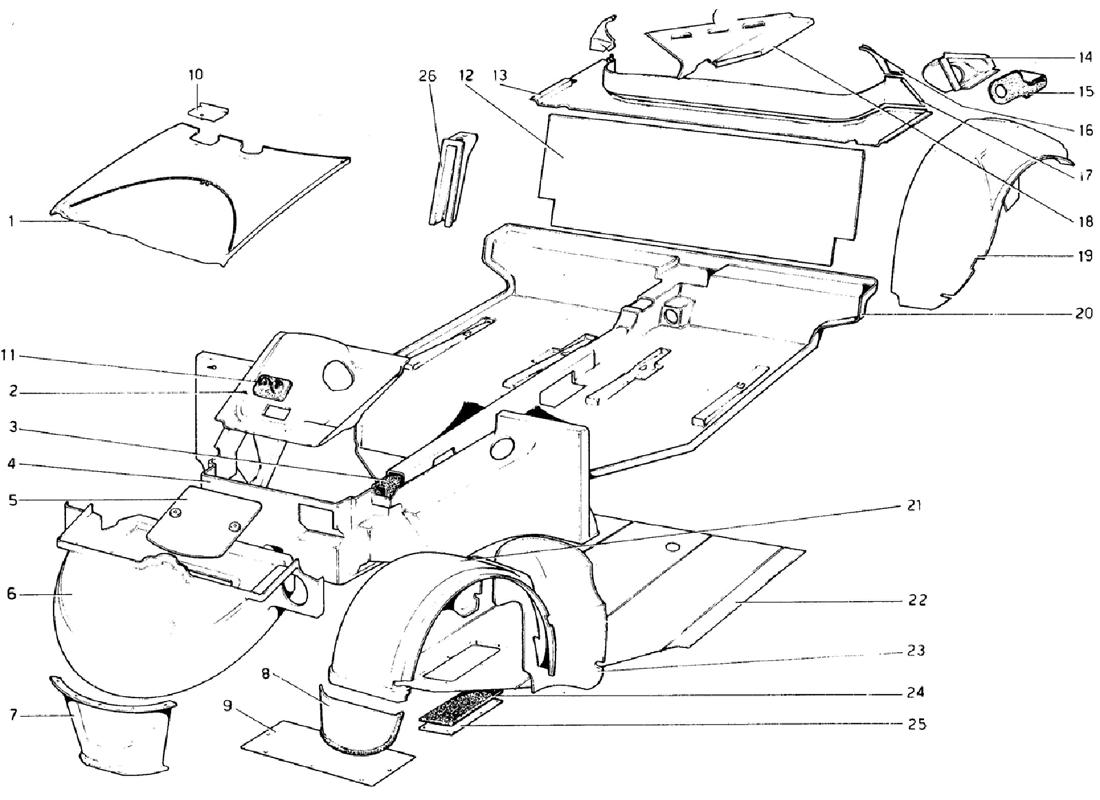

BODY SHELL - INNER ELEMENTS

Go to Split View

BODY SHELL - INNER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60114907 *Qty: 1 Paratia copriruota di scorta Call
Location: 2 Prev | Next Part: 60054004 *Qty: 1 Riporto superiore cruscotto $596.55
Location: 3 Prev | Next Part: 60109005 *Qty: 1 Isolante per tunnel centrale Call
Location: 4 Prev | Next Part: 60001906 *Qty: 1 Cruscotto para fiamma Superseded
Location: 5 Prev | Next Part: 60030905 *Qty: 1 Coperchio copri batteria Superseded
Location: 6 Prev | Next Part: 60007408 *Qty: 1 Contenitore ruota di scorta Superseded
Location: 7 Prev | Next Part: 60023801 *Qty: 1 Riparo batteria $74.05
Location: 8 Prev | Next Part: 60115508 *Qty: 1 Para sassi ant. Sx. $146.93
Location: 8 Prev | Next Part: 60115409 *Qty: 1 Para sassi ant. Dx. $146.93
Location: 9 Prev | Next Part: 60059706 *Qty: 1 Grembialina sottofondo ant. Call
Location: 10 Prev | Next Part: 60113909 *Qty: 1 Sportello ispezione olio freni $67.01
Location: 11 Prev | Next Part: 60197703 *Qty: 1 Passa fini per tubi A.C. Superseded
Location: 12 Prev | Next Part: 60162302 *Qty: 1 Paratia per schienale $162.10
Location: 13 Prev | Next Part: 60148608 *Qty: 1 Pianetto sottolunotto $323.74
Location: 14 Prev | Next Part: 60059003 *Qty: 1 Contenitore bocchettone benzina $127.90
Location: 15 Prev | Next Part: 60134202 *Qty: 1 Guarnizione bocchettone Superseded
Location: 16 Prev | Next Part: 60148905 *Qty: 1 Parte superiore nicchia Sx. $75.17
Location: 16 Prev | Next Part: 60148806 *Qty: 1 Parte superiore nicchia Dx. $93.97
Location: 17 Prev | Next Part: 60148707 *Qty: 1 Paratia sotto lunotto $93.97
Location: 18 Prev | Next Part: 60071800 *Qty: 1 Rivestimento interno pinna Sx. $138.79
Location: 18 Prev | Next Part: 60071701 *Qty: 1 Rivestimento interno pinna Dx. $138.79
Location: 19 Prev | Next Part: 60091402 *Qty: 1 Passaruota post. Sx. $927.90
Location: 19 Prev | Next Part: 60091303 *Qty: 1 Passaruota post. Dx. $388.27
Location: 20 Prev | Next Part: 60009800 *Qty: 1 Pianale in resina Call
Location: 21 Prev | Next Part: 60008802 *Qty: 1 Passaruota ant. Dx. $416.57
Location: 21 Prev | Next Part: 60007705 *Qty: 1 Passaruota ant. Sx. $416.57
Location: 22 Prev | Next Part: 60059607 *Qty: 1 Sottopianale $347.87
Location: 23 Prev | Next Part: 60090701 *Qty: 1 Para sassi per passaruota Sx. $201.95
Location: 24 Prev | Next Part: 60059904 *Qty: 1 GASKET $14.01
Location: 25 Prev | Next Part: 60059805 *Qty: 1 Coperchietto ispezione acceleratore Superseded
Location: 26 Prev | Next Part: 60093903 *Qty: 1 Riparo tubi $216.19

* Quantity shown indicates the number of pieces used in the diagram.
