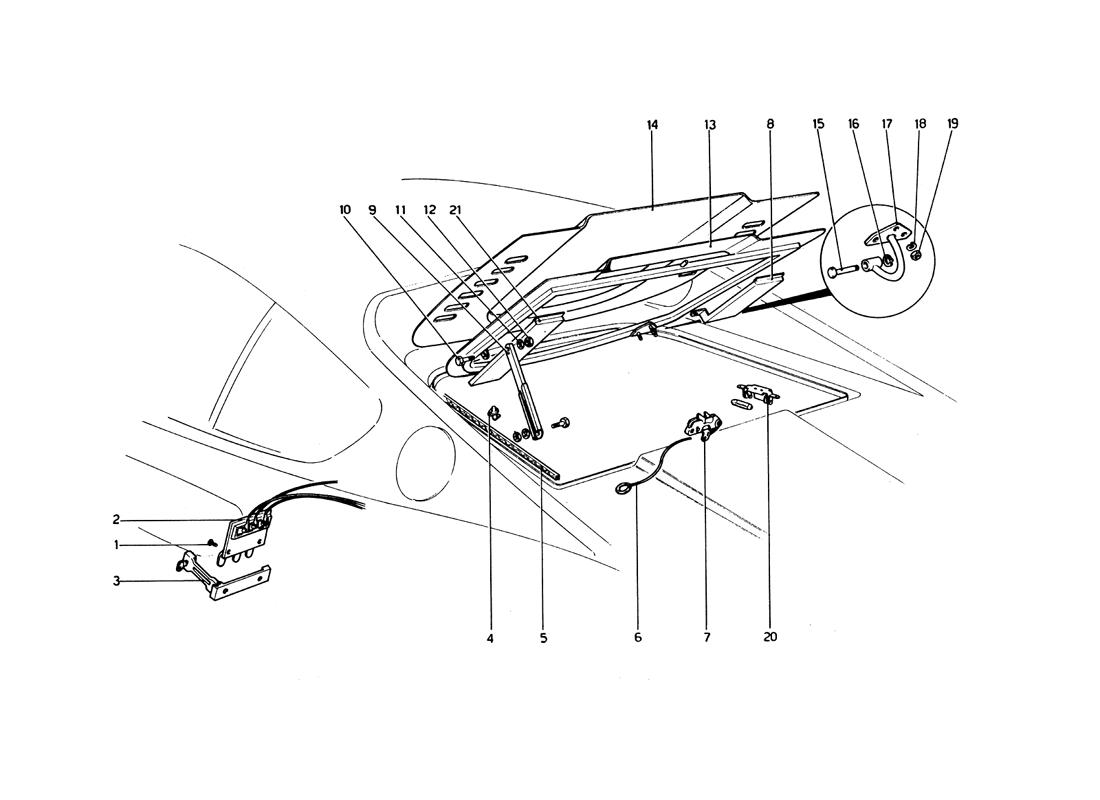

ENGINE COMPARTMENT LID AND CARPETING

Go to Split View

ENGINE COMPARTMENT LID AND CARPETING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 15621402 *Qty: 2 Vite Call
Location: 2 Prev | Next Part: 200704 *Qty: 1 Leve apricofani Call
Location: 3 Prev | Next Part: 201419 *Qty: 1 Serratura per leve apricofani
Solo per GTS
Call
Location: 4 Prev | Next Part: 200696 *Qty: 1 Pulsante per vano motore Call
Location: 5 Prev | Next Part: 201011 *Qty: 1 Guarnizione per vano motore Call
Location: 6 Prev | Next Part: 200455 *Qty: 1 Cavo di sicurezza per cofano motore Call
Location: 7 Prev | Next Part: 200419 *Qty: 1 Serratura cofano motore Call
Location: 8 Prev | Next Part: 201019 *Qty: 1 Vaschetta riparo acqua destra Call
Location: 9 Prev | Next Part: 200219 *Qty: 1 Asta ritegno cofano Call
Location: 10 Prev | Next Part: 201003 *Qty: 2 Vite Call
Location: 11 Prev | Next Part: 12644401 *Qty: 2 Rondella Superseded
Location: 12 Prev | Next Part: 15896211 *Qty: 2 Dado Superseded
Location: 13 Prev | Next Part: 200271 *Qty: 1 Intelaiatura cofano motore Call
Location: 14 Prev | Next Part: 200272 *Qty: 1 Rivestimento cofano motore Call
Location: 15 Prev | Next Part: 200232 *Qty: 2 Perno cerniere cofano motore Call
Location: 16 Prev | Next Part: 11087975 *Qty: 2 Seeger Superseded
Location: 17 Prev | Next Part: 201006 *Qty: 2 Cerniera per cofano motore Call
Location: 18 Prev | Next Part: 10516470 *Qty: 6 Rondella Superseded
Location: 19 Prev | Next Part: 15896211 *Qty: 6 Dado Superseded
Location: 20 Prev | Next Part: 200683 *Qty: 1 Plafoniera $3,281.47
Location: 21 Prev | Next Part: 201020 *Qty: 1 Vaschetta riparo acqua sinistra $230.49

* Quantity shown indicates the number of pieces used in the diagram.
