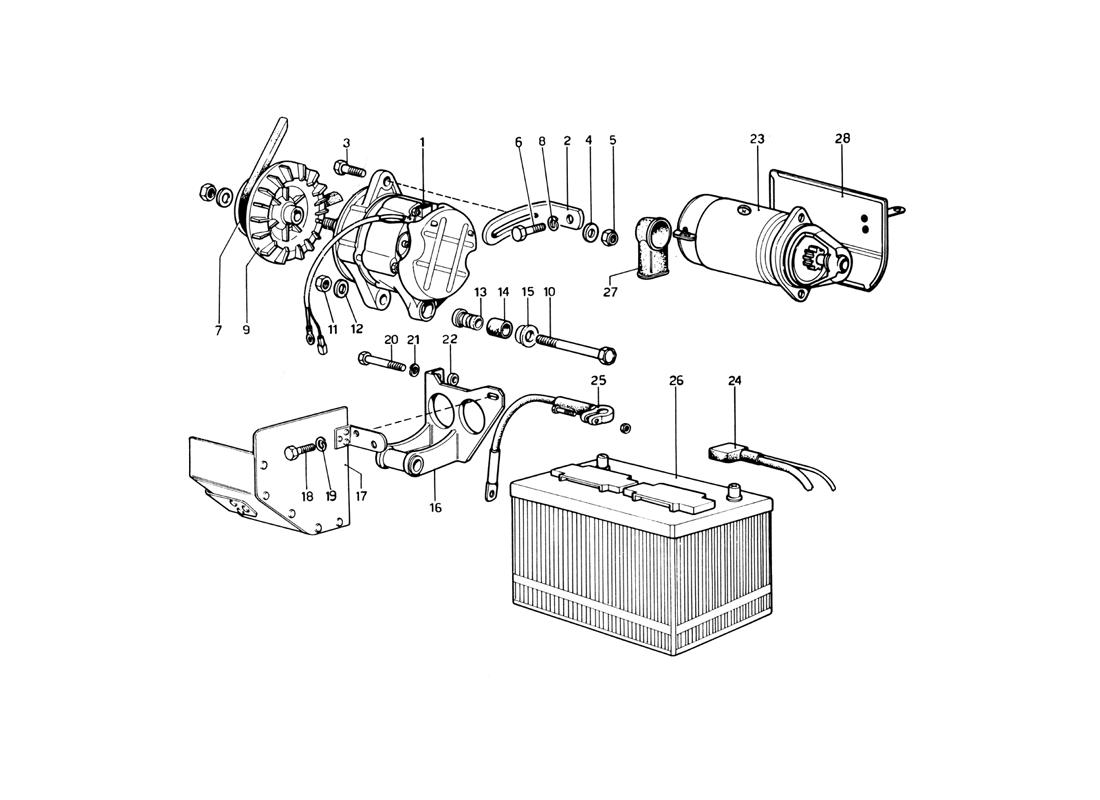

CURRENT GENERATING SYSTEM - STARTING MOTOR

Go to Split View

CURRENT GENERATING SYSTEM - STARTING MOTOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 236E30007 *Qty: 1 Generatore completo di ventola
Vale fino N. 06988
Call
Location: 1 Prev | Next Part: 236E30007 *Qty: 1 Generatore completo di ventola e puleggia
Vale dal N. 06990
Call
Location: 1 Prev | Next Part: 236E30006 *Qty: 1 Regolatore di tensione
Vale fino ad esaurimento
Call
Location: 1 Prev | Next Part: 236E30008 *Qty: 1 Regolatore di tensione
Valedopo N 236E-30O065
Call
Location: 2 Prev | Next Part: 236E30008 *Qty: 1 Staffa superiore Call
Location: 3 Prev | Next Part: 11307030 *Qty: 1 Bullone Call
Location: 4 Prev | Next Part: 236E30007 *Qty: 1 Rondella Call
Location: 5 Prev | Next Part: 236E30008 *Qty: 1 Dado Call
Location: 6 Prev | Next Part: 236E30008 *Qty: 1 Bullone Call
Location: 7 Prev | Next Part: 236E30009 *Qty: 1 Cinghia a comando generatore (Pirelli premium Forma 2054-9.5x7,5x875)
In alternativa con N. 236E-300060
Call
Location: 7 Prev | Next Part: 236E30006 *Qty: 1 Cinghia comando generatore (Continental Ultraflex 9.5x8,25x875)
In alternativa con N. 236E-300094
Call
Location: 8 Prev | Next Part: 236E30008 *Qty: 1 Rondeila Call
Location: 9 Prev | Next Part: 4247694 *Qty: 1 Puleggia $390.08
Location: 10 Prev | Next Part: 236E30007 *Qty: 1 Bullone Call
Location: 11 Prev | Next Part: 236E30007 *Qty: 1 Dado Call
Location: 12 Prev | Next Part: 236E30008 *Qty: 1 Boccola montaggio alternatore compl. Call
Location: 12 Prev | Next Part: 236E30007 *Qty: 1 Rondella Call
Location: 13 Prev | Next Part: 4085213 *Qty: 1 Mozzo Call
Location: 14 Prev | Next Part: 4085212 *Qty: 1 Boccola in gomma Call
Location: 15 Prev | Next Part: 236E30008 *Qty: 1 Rondella di compressione Call
Location: 16 Prev | Next Part: 236L-30981 *Qty: 1 Supporto generatore
Vale fino ad esaurimento
Call
Location: 16 Prev | Next Part: 236E30005 *Qty: 1 Supporto generatore
Dopo esaur. N. 236L-30981
Call
Location: 17 Prev | Next Part: 236E30002 *Qty: 1 Paratia generatore
Vale dal N. 03272
Call
Location: 17 Prev | Next Part: 236M30001 *Qty: 1 Paratia generatore
Vale fino N. 03270
Call
Location: 18 Prev | Next Part: 15970721 *Qty: 1 Bullone $0.90
Location: 19 Prev | Next Part: 10516871 *Qty: 1 Rondella $0.90
Location: 20 Prev | Next Part: LOBO 8G 8x *Qty: 2 Bullone Call
Location: 21 Prev | Next Part: 10516670 *Qty: 2 Rondella $0.90
Location: 22 Prev | Next Part: 236E30003 *Qty: 1 Distanziale
Vale dal N. 03902
Call
Location: 22 Prev | Next Part: 236L-30986 *Qty: 1 Distanziale
Vale fino N. 03900
Call
Location: 23 Prev | Next Part: 236E13243 *Qty: 1 Motorino avviam. (MARELLI MT 42E) Call
Location: 24 Prev | Next Part: 571-400048 *Qty: 1 Cavo collegamento batteria-motorino Call
Location: 25 Prev | Next Part: 571-400049 *Qty: 1 Cavo collegamento batteria-massa Call
Location: 26 Prev | Next Part: 607E40133 *Qty: 1 Batteria (MARELLI 6AT 1M2V-60Ah) Call
Location: 27 Prev | Next Part: 100457 *Qty: 1 Coprimorsetto Superseded
Location: 28 Prev | Next Part: 236B-13237 *Qty: 1 Paratia protezione motorino Call

* Quantity shown indicates the number of pieces used in the diagram.
