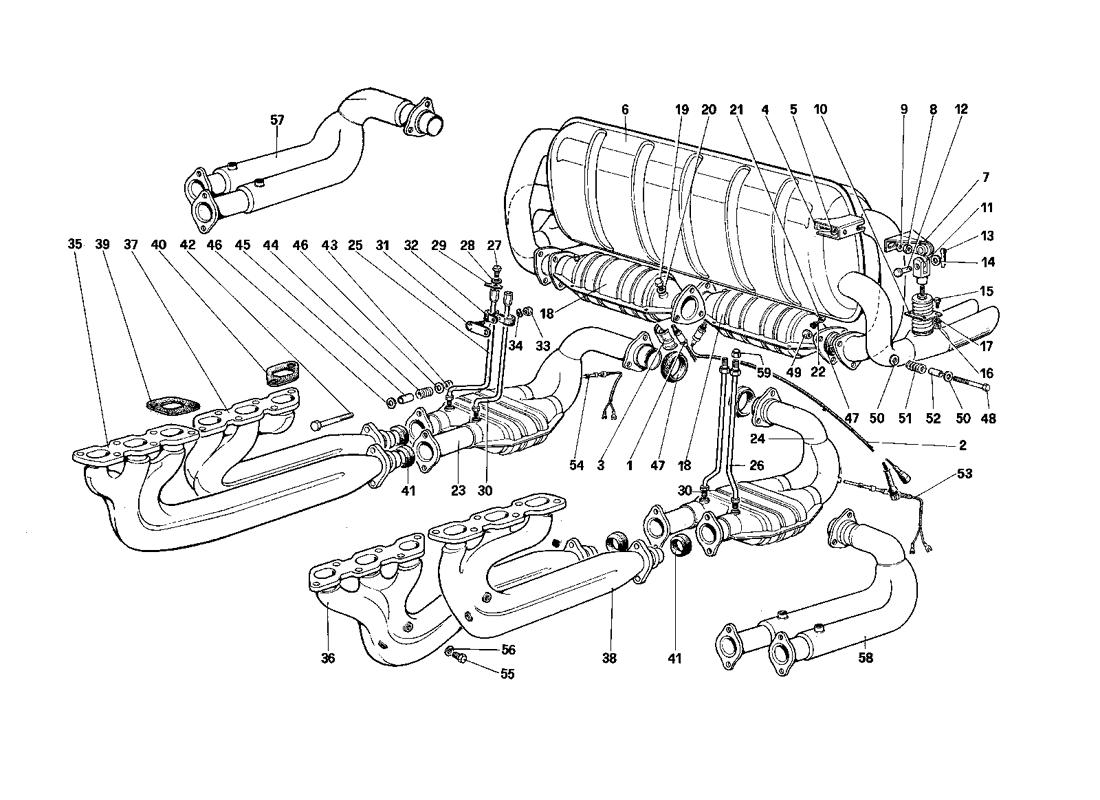

EXHAUST SYSTEM (FOR US - SA AND CAT VERSION)

Go to Split View

EXHAUST SYSTEM (FOR US - SA AND CAT VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 125881 *Qty: 1 Oxigen sensor cyl. bank 7-12
Not for SA and GDE
$722.88
Location: 2 Prev | Next Part: 121515 *Qty: 1 Oxigen sensor cyl. bank 1-6
Not for SA and GDE
$389.69
Location: 3 Prev | Next Part: 121833 *Qty: 2 Oxigen sensor protection
Not SA and GDE
$52.30
Location: 4 Prev | Next Part: 16043521 *Qty: 4 Screw Superseded
Location: 5 Prev | Next Part: 12646701 *Qty: 2 Washer Superseded
Location: 6 Prev | Next Part: 125928 *Qty: 1 Exhaust silencer
For US
$3,055.48
Location: 6 Prev | Next Part: 131524 *Qty: 1 Exhaust silencer
For CH - CAT. and GDE
$5,811.27
Location: 6 Prev | Next Part: 131043 *Qty: 1 Exhaust silencer
For SA
$2,145.22
Location: 7 Prev | Next Part: 122689 *Qty: 2 Bracket Call
Location: 8 Prev | Next Part: 114748 *Qty: 4 Nut $0.90
Location: 9 Prev | Next Part: 10519601 *Qty: 4 Washer Superseded
Location: 10 Prev | Next Part: 106052 *Qty: 2 Buffer $133.13
Location: 11 Prev | Next Part: 108257 *Qty: 2 Fork $131.35
Location: 12 Prev | Next Part: 10033441 *Qty: 2 Pin Superseded
Location: 13 Prev | Next Part: 10796401 *Qty: 2 Split pin Superseded
Location: 14 Prev | Next Part: 103167 *Qty: 2 washer $4.92
Location: 15 Prev | Next Part: 10977621 *Qty: 8 Screw Superseded
Location: 16 Prev | Next Part: 15896411 *Qty: 8 Nut Superseded
Location: 17 Prev | Next Part: 127493 *Qty: 8 Washer Superseded
Location: 18 Prev | Next Part: 121385 *Qty: 2 Catalytic converter
Not for SA and GDE
$1,855.06
Location: 19 Prev | Next Part: 110860 *Qty: 2 Plug
Not for SA and GDE
Call
Location: 20 Prev | Next Part: 10298460 *Qty: 2 Gasket
Not for SA and GDE
$0.90
Location: 21 Prev | Next Part: 100436 *Qty: 2 Nut
Not for SA and GDE
$12.89
Location: 22 Prev | Next Part: 125858 *Qty: 2 Ball
Not for SA and GDE
$0.90
Location: 23 Prev | Next Part: 125906 *Qty: 1 R.H. light-off catalyst
Not for SA and GDE
$4,445.26
Location: 24 Prev | Next Part: 125907 *Qty: 1 L.H. light-off catalyst
Not for SA and GDE
Call
Location: 25 Prev | Next Part: 125929 *Qty: 1 R.H. external analyzing pipe
Not for SA - After exhaustion use no. 136989
Superseded
Location: 26 Prev | Next Part: 125930 *Qty: 1 L.H. external analyzing pipe
Not for SA - After exhaustion use no 136989
Superseded
Location: 27 Prev | Next Part: 103748 *Qty: 4 Plug
With pipe no. 125929 - 125930 - 125899
$6.90
Location: 28 Prev | Next Part: 103749 *Qty: 4 Gasket
For plug no. 103748
$0.90
Location: 29 Prev | Next Part: 103587 *Qty: 4 Plate
For pluq no. 103748
$8.34
Location: 30 Prev | Next Part: 125899 *Qty: 2 Analyzing pipes internal
Not for SA - After exhaustion use no. 136988
Superseded
Location: 31 Prev | Next Part: 125898 *Qty: 2 Bracket supporting pipe
Not for SA
$7.65
Location: 32 Prev | Next Part: 10418101 *Qty: 4 Bracket
Not for SA
$1.08
Location: 33 Prev | Next Part: 15896221 *Qty: 2 Nut
Not for SA
Superseded
Location: 34 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 35 Prev | Next Part: 125912 *Qty: 1 R.H. front exhaust manifold . $1,896.37
Location: 36 Prev | Next Part: 125913 *Qty: 1 L.H. front exhaust manifold $1,637.69
Location: 37 Prev | Next Part: 125914 *Qty: 1 R.H. rear exhaust manifold $1,896.37
Location: 38 Prev | Next Part: 125915 *Qty: 1 L.H. rear exhaust manifold $3,225.28
Location: 39 Prev | Next Part: 124693 *Qty: 6 Gasket - R.H. front - L.H. rear
With Amianthus
Superseded
Location: 39 Prev | Next Part: 146695 *Qty: 6 Gasket - R.H. front - L.H. rear
Without Amianthus
$8.66
Location: 40 Prev | Next Part: 146694 *Qty: 6 Gasket - L.H. front - R.H. rear
Without Amianthus
$9.31
Location: 40 Prev | Next Part: 124694 *Qty: 6 Gasket - L.H. front - R.H. rear
With Amianthus
Superseded
Location: 41 Prev | Next Part: 146699 *Qty: 4 Gasket
Without Amianthus
Superseded
Location: 41 Prev | Next Part: 125917 *Qty: 4 Gasket
With Amianthus
Superseded
Location: 42 Prev | Next Part: 125924 *Qty: 8 Screw Superseded
Location: 43 Prev | Next Part: 114748 *Qty: 8 Nut $0.90
Location: 44 Prev | Next Part: 111743 *Qty: 8 Spring $16.46
Location: 45 Prev | Next Part: 114749 *Qty: 8 Spacer $1.25
Location: 46 Prev | Next Part: 112761 *Qty: 16 Washer Superseded
Location: 47 Prev | Next Part: 121426 *Qty: 4 Gasket
For SA and GDE Q.= 2 - With Amianthus
Superseded
Location: 47 Prev | Next Part: 146697 *Qty: 4 Gasket
For SA and GDE Q.= 2 - Without Amianthus
Superseded
Location: 48 Prev | Next Part: 123198 *Qty: 12 Screw
For SA and GDE Q.= 6 - After exhaustion use no. 121676
Superseded
Location: 49 Prev | Next Part: 121677 *Qty: 12 Nut
For SA and GDE Q.= 6
$4.97
Location: 50 Prev | Next Part: 121678 *Qty: 24 Washer
For SA and GDE Q.= 12
$8.81
Location: 51 Prev | Next Part: 121674 *Qty: 12 Spring
For SA and GDE Q.= 6
$11.73
Location: 52 Prev | Next Part: 121675 *Qty: 12 Spacer
For SA and GDE Q.= 6
$9.66
Location: 53 Prev | Next Part: 144978 *Qty: 1 Thermocouple cylinder bank 7-12
With catalytic converter no. 141037
$172.35
Location: 53 Prev | Next Part: 61653200 *Qty: 1 Thermocouple cylinder bank 7-12
For CH use no. 132396 - With catalytic converter no. 61402500 - Not for SA and GDE
$759.63
Location: 53 Prev | Next Part: 144234 *Qty: 1 THERMOCOUPLE $190.26
Location: 53 Prev | Next Part: 142584 *Qty: 1 Thermocouple cylinder bank 7-12
For CAT. - After exhaustion use no. 144234 - With catalytic converter no. 141037
Call
Location: 53 Prev | Next Part: 132396 *Qty: 1 Thermocouple cylinder bank 7-12
With catalytic converter no. 62347000
$207.20
Location: 54 Prev | Next Part: 144977 *Qty: 1 Thermocouple cylinder bank 1- 6
With catalytic converter no. 141037
$166.06
Location: 54 Prev | Next Part: 144233 *Qty: 1 THERMOCOUPLE $395.62
Location: 54 Prev | Next Part: 132395 *Qty: 1 Thermocouple cylinder bank 1- 6
With catalytic converter no. 62347000
$200.36
Location: 54 Prev | Next Part: 142583 *Qty: 1 Thermocouple cylinder bank 1- 6
For CAT. - After exhaustion use no. 144233 - With catalytic converter no. 141037
Call
Location: 54 Prev | Next Part: 61653100 *Qty: 1 Thermocouple cylinder bank 1- 6
For CH use no. 132395 - With catalytic converter no. 61402500 -Not for SA and GDE
$780.08
Location: 55 Prev | Next Part: 110860 *Qty: 12 Plug Call
Location: 56 Prev | Next Part: 10298460 *Qty: 12 Gasket $0.90
Location: 57 Prev | Next Part: 128589 *Qty: 1 Exhaust pipe, from R.H. manifold to silencer
For SA and US car delivered at the Factory
$2,035.03
Location: 57 Prev | Next Part: 144097 *Qty: 1 Exhaust pipe, from R.H. manifold to silencer
For GDE
$875.31
Location: 57 Prev | Next Part: 142166 *Qty: 1 R.H. pipe from exhaust manifold to catalytic converter
For CAT.
$1,053.93
Location: 58 Prev | Next Part: 128590 *Qty: 1 Exhaust pipe, from L.H. manifold to silencer
For SA and US car delivered at the Factory
$1,918.70
Location: 58 Prev | Next Part: 144098 *Qty: 1 Exhaust pipe, from L.H. manifold to silencer
For GDE
$646.42
Location: 58 Prev | Next Part: 142167 *Qty: 1 L.H. pipe from exhaust manifold to catalytic converter
For CAT.
$495.64
Location: 59 Prev | Next Part: 16109642 *Qty: 4 Plug
For pipe no 136989 - 136990 - 136988
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
