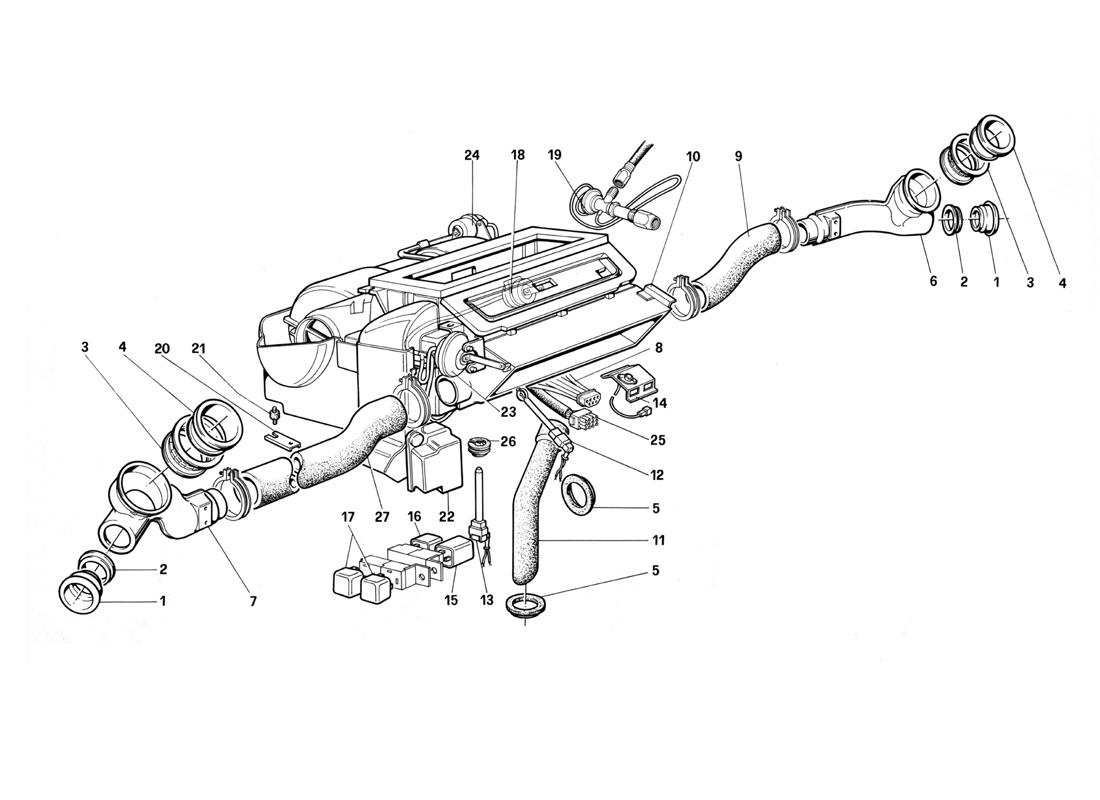

HEATER UNIT

Go to Split View

HEATER UNIT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61528300 *Qty: 2 Air duct gasket Call
Location: 2 Prev | Next Part: 61528400 *Qty: 2 Frame for gasket Superseded
Location: 3 Prev | Next Part: 61528500 *Qty: 2 Air vent frame ring $5.78
Location: 4 Prev | Next Part: 61528600 *Qty: 2 Air vent $19.96
Location: 5 Prev | Next Part: 61528700 *Qty: 2 Gasket for water outlet pipe $1.45
Location: 6 Prev | Next Part: 61528800 *Qty: 1 R.H. air duct
LHD
$100.52
Location: 6 Prev | Next Part: 61535500 *Qty: 1 R.H. air duct
RHD
$91.76
Location: 7 Prev | Next Part: 61528900 *Qty: 1 L.H. air duct
LHD
$100.52
Location: 7 Prev | Next Part: 61535600 *Qty: 1 L.H. air duct
RHD
$91.76
Location: 8 Prev | Next Part: 61539700 *Qty: 1 Connection for vacuum pipe Call
Location: 9 Prev | Next Part: 61559100 *Qty: 1 R.H. union from heater air vent $193.50
Location: 10 Prev | Next Part: 60955900 *Qty: 1 Air conditioner
For LHD
Call
Location: 10 Prev | Next Part: 61716800 *Qty: 1 Air conditioner
For RHD
$3,587.83
Location: 11 Prev | Next Part: 61529300 *Qty: 1 Condensate drain pipe $28.20
Location: 12 Prev | Next Part: 61079600 *Qty: 1 Air temperature sensor Call
Location: 13 Prev | Next Part: 62341000 *Qty: 1 Cooler temperature sensor Call
Location: 14 Prev | Next Part: 127014 *Qty: 1 Power transistor $112.86
Location: 15 Prev | Next Part: 123509 *Qty: 1 Timer $158.66
Location: 16 Prev | Next Part: 40130106 *Qty: 1 Control relay $27.66
Location: 17 Prev | Next Part: 40130007 *Qty: 1 Control switch relay $36.71
Location: 18 Prev | Next Part: 61268000 *Qty: 1 Interior actuator $19.44
Location: 19 Prev | Next Part: 61742600 *Qty: 1 Expansion valve Call
Location: 20 Prev | Next Part: 60726860 *Qty: 2 Air conditioner assembly lower Call
Location: 21 Prev | Next Part: 102947 *Qty: 2 Anti-shaker support $18.79
Location: 22 Prev | Next Part: 124037 *Qty: 1 R.H. air duct with actuator
LHD
$318.68
Location: 22 Prev | Next Part: 125448 *Qty: 1 L.H. air duct with actuator
RHD
$161.44
Location: 22 Prev | Next Part: 125447 *Qty: 1 R.H. air duct with actuator
RHD
$161.64
Location: 22 Prev | Next Part: 124038 *Qty: 1 L.H. air duct with actuator
LHD
$133.96
Location: 23 Prev | Next Part: 60930700 *Qty: 1 Actuator for defroster cover $36.42
Location: 24 Prev | Next Part: 61930500 *Qty: 1 Actuator Call
Location: 25 Prev | Next Part: 124036 *Qty: 1 Cable for air conditioner assembly $55.34
Location: 26 Prev | Next Part: 61086200 *Qty: 1 Gasket $1.94
Location: 27 Prev | Next Part: 61559200 *Qty: 1 L.H. union from heater air vent $193.50

* Quantity shown indicates the number of pieces used in the diagram.
