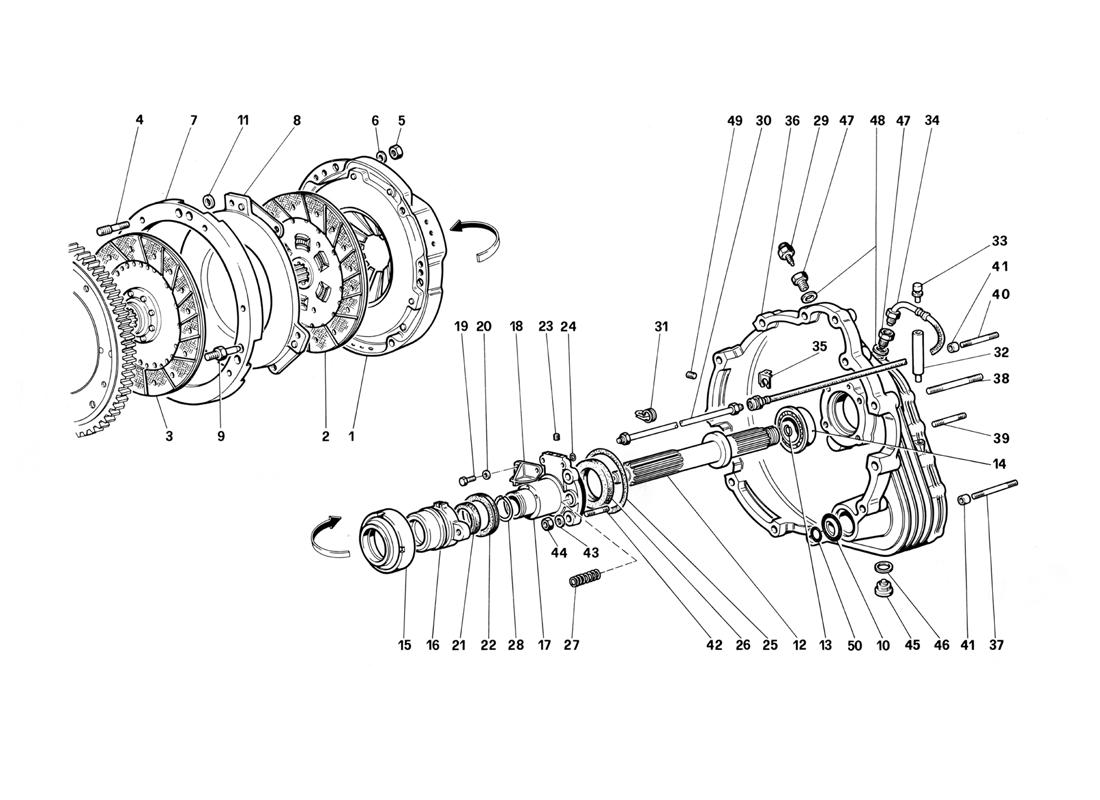

CLUTCH AND CONTROLS

Go to Split View

CLUTCH AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124098 *Qty: 1 Pressure plate Superseded
Location: 2 Prev | Next Part: 124099 *Qty: 1 Clutch disc with spring drive Superseded
Location: 3 Prev | Next Part: 124100 *Qty: 1 Clutch disc without spring drive Superseded
Location: 4 Prev | Next Part: 110019 *Qty: 6 Stud $34.41
Location: 5 Prev | Next Part: 16100821 *Qty: 6 Nut $3.46
Location: 6 Prev | Next Part: 10516670 *Qty: 6 Washer $0.90
Location: 7 Prev | Next Part: 124102 *Qty: 1 Spacer ring $347.26
Location: 8 Prev | Next Part: 124101 *Qty: 1 Intprrnediate ring Call
Location: 9 Prev | Next Part: 124103 *Qty: 3 Stud Call
Location: 10 Prev | Next Part: 104756 *Qty: 3 Seal ring $9.44
Location: 11 Prev | Next Part: 109466 *Qty: 6 Spacer Call
Location: 12 Prev | Next Part: 123810 *Qty: 1 Clutch shaft $2,080.53
Location: 13 Prev | Next Part: 109342 *Qty: 1 Shoulder washer $1.07
Location: 14 Prev | Next Part: 103042 *Qty: 1 Bearing $242.28
Location: 15 Prev | Next Part: 70000567 *Qty: 1 Thrust Bearing
Use on Exhaustion of 126608
Call
Location: 15 Prev | Next Part: 126608 *Qty: 1 Thrust bearing Superseded
Location: 16 Prev | Next Part: 123359 *Qty: 1 Thrust bearing supporting bush $404.25
Location: 17 Prev | Next Part: 123360 *Qty: 1 Bush supporting flange $1,023.00
Location: 18 Prev | Next Part: 123696 *Qty: 1 Plate $868.52
Location: 19 Prev | Next Part: 10977521 *Qty: 2 Screw $0.90
Location: 20 Prev | Next Part: 106849 *Qty: 2 Washer Superseded
Location: 21 Prev | Next Part: 122033 *Qty: 1 Seal ring Superseded
Location: 22 Prev | Next Part: 124674 *Qty: 1 Seal ring Superseded
Location: 23 Prev | Next Part: 10267550 *Qty: 2 Plug Superseded
Location: 24 Prev | Next Part: 121813 *Qty: 2 Seal ring Superseded
Location: 25 Prev | Next Part: 121814 *Qty: 1 Seal ring $10.21
Location: 26 Prev | Next Part: 125461 *Qty: 1 Seal ring Superseded
Location: 27 Prev | Next Part: 121717 *Qty: 2 Preloading spring $16.17
Location: 27 Prev | Next Part: 124680 *Qty: 1 ? 9 1/2" double disc clutch Call
Location: 28 Prev | Next Part: 123110 *Qty: 1 Circlip $13.90
Location: 29 Prev | Next Part: 121699 *Qty: 1 Bleeder screw $58.32
Location: 30 Prev | Next Part: 124841 *Qty: 1 Pipe from master cylinder to flexible $46.52
Location: 31 Prev | Next Part: 10440990 *Qty: 2 Pipe supporting bracket $1.90
Location: 32 Prev | Next Part: 109789 *Qty: 1 Extension for breather $40.69
Location: 33 Prev | Next Part: 13411990 *Qty: 1 Brather $4.25
Location: 34 Prev | Next Part: 124840 *Qty: 1 Flexible hose for clutch hydraulic control Call
Location: 35 Prev | Next Part: 126082 *Qty: 1 Clutch housing complete $2,015.48
Location: 35 Prev | Next Part: 110810 *Qty: 1 Pipe securing plate $1.55
Location: 36 Prev | Next Part: 123808 *Qty: 1 Clutch housing .
With assy P.N. 126082
Call
Location: 37 Prev | Next Part: 13544621 *Qty: 1 Stud $1.18
Location: 38 Prev | Next Part: 13544521 *Qty: 2 Stud Superseded
Location: 39 Prev | Next Part: 13544021 *Qty: 6 Stud $1.65
Location: 40 Prev | Next Part: 13544221 *Qty: 1 Stud Superseded
Location: 41 Prev | Next Part: 102704 *Qty: 2 Dowel $2.18
Location: 42 Prev | Next Part: 13516621 *Qty: 4 Stud $0.90
Location: 43 Prev | Next Part: 106852 *Qty: 4 Washer Superseded
Location: 44 Prev | Next Part: 16100821 *Qty: 4 Nut $3.46
Location: 45 Prev | Next Part: 104280 *Qty: 1 Oil drain plug $6.54
Location: 46 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 47 Prev | Next Part: 126496 *Qty: 2 Union Superseded
Location: 48 Prev | Next Part: 10257060 *Qty: 2 Gasket $0.90
Location: 49 Prev | Next Part: 14326150 *Qty: 1 Plug $0.90
Location: 50 Prev | Next Part: 104747 *Qty: 1 Seal ring $1.48

* Quantity shown indicates the number of pieces used in the diagram.
