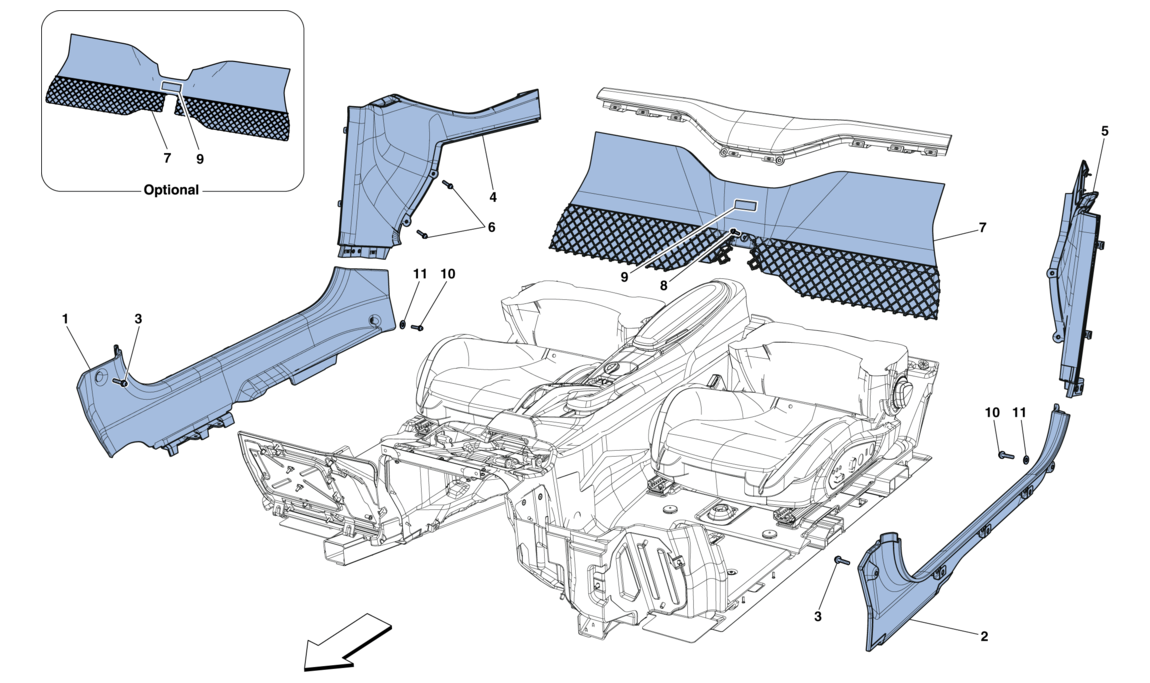

INTERIOR TRIM

Go to Split View

INTERIOR TRIM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 833968.. *Qty: 1 RH LATERAL SILL TRIM -Leather- -Not for GD- -Applicable up to Ass. No. 116445- Call
Location: 1 Prev | Next Part: 858027.. *Qty: 1 RH LATERAL SILL TRIM -Leather- -Not for GD- -Applicable from Ass. No. 116446- Call
Location: 1 Prev | Next Part: 850283.. *Qty: 1 RH LATERAL SILL TRIM -Leather- -Applicable for GD- Call
Location: 2 Prev | Next Part: 833969.. *Qty: 1 LH LATERAL SILL TRIM -Leather- -Not for GD- -Applicable up to Ass. No. 116445- Call
Location: 2 Prev | Next Part: 858030.. *Qty: 1 LH LATERAL SILL TRIM -Leather- -Not for GD- -Applicable from Ass. No. 116446- Call
Location: 2 Prev | Next Part: 850287.. *Qty: 1 LH LATERAL SILL TRIM -Leather- -Applicable for GD- Call
Location: 3 Prev | Next Part: 262934 *Qty: 5 SCREW -M5 X 20- -No longer supplied- -Replaced by 85834000- $0.90
Location: 3 Prev | Next Part: 85834000 *Qty: 3 SCREW -M5 X 25- Call
Location: 3 Prev | Next Part: 216431 *Qty: 2 SCREW -M5 X 50- $0.90
Location: 4 Prev | Next Part: 845317.. *Qty: 1 RH LOWER CENTRE PILLAR TRIM -Leather- -Applicable up to Ass. No. 116445- Call
Location: 4 Prev | Next Part: 858096.. *Qty: 1 RH LOWER CENTRE PILLAR TRIM -Leather- -Applicable from Ass. No. 116446- Call
Location: 5 Prev | Next Part: 845321.. *Qty: 1 LH LOWER CENTRE PILLAR TRIM -Leather- -Applicable up to Ass. No. 116445- Call
Location: 5 Prev | Next Part: 858099.. *Qty: 1 LH LOWER CENTRE PILLAR TRIM -Leather- -Applicable from Ass. No. 116446- Call
Location: 6 Prev | Next Part: 169814 *Qty: 8 SCREW -M5 X 14- -No longer supplied- -Replaced by 85833700- $1.76
Location: 6 Prev | Next Part: 85833700 *Qty: 8 SCREW -M5 X 14- Call
Location: 6 Prev | Next Part: 65212000 *Qty: 2 SCREW -M5 X 8- $1.38
Location: 7 Prev | Next Part: 845310.. *Qty: 1 REAR BULKHEAD TRIM -Leather- -Applicable up to Ass. No. 116445- Call
Location: 7 Prev | Next Part: 858804.. *Qty: 1 REAR BULKHEAD TRIM -Leather- -Applicable from Ass. No. 116446- Call
Location: 7 Prev | Next Part: 852659.. *Qty: 1 REAR BULKHEAD TRIM -Alcantara- -Applicable up to Ass. No. 116445- Call
Location: 7 Prev | Next Part: 858806.. *Qty: 1 REAR BULKHEAD TRIM -Alcantara- -Applicable from Ass. No. 116446- Call
Location: 7 Prev | Next Part: 852554.. *Qty: 1 REAR BULKHEAD TRIM -Leather- -Version with CD reader- -Applicable up to Ass. No. 116445- Call
Location: 7 Prev | Next Part: 858807.. *Qty: 1 REAR BULKHEAD TRIM -Leather- -Version with CD reader- -Applicable from Ass. No. 116446- Call
Location: 7 Prev | Next Part: 852705.. *Qty: 1 REAR BULKHEAD TRIM -Alcantara- -Version with CD reader- -Applicable up to Ass. No. 116445- Call
Location: 7 Prev | Next Part: 858809.. *Qty: 1 REAR BULKHEAD TRIM -Alcantara- -Version with CD reader- -Applicable from Ass. No. 116446- Call
Location: 8 Prev | Next Part: 169815 *Qty: 1 SCREW -No longer supplied- -Replaced by 85692300- $2.14
Location: 8 Prev | Next Part: 85692300 *Qty: 1 SCREW Call
Location: 9 Prev | Next Part: 85360300 *Qty: 1 DEDICATION PLAQUE $1,233.62
Location: 10 Prev | Next Part: 85834100 *Qty: 2 SCREW -M5 X 30- Call
Location: 11 Prev | Next Part: 13337507 *Qty: 2 WASHER FOR SCREW $1.79

* Quantity shown indicates the number of pieces used in the diagram.
