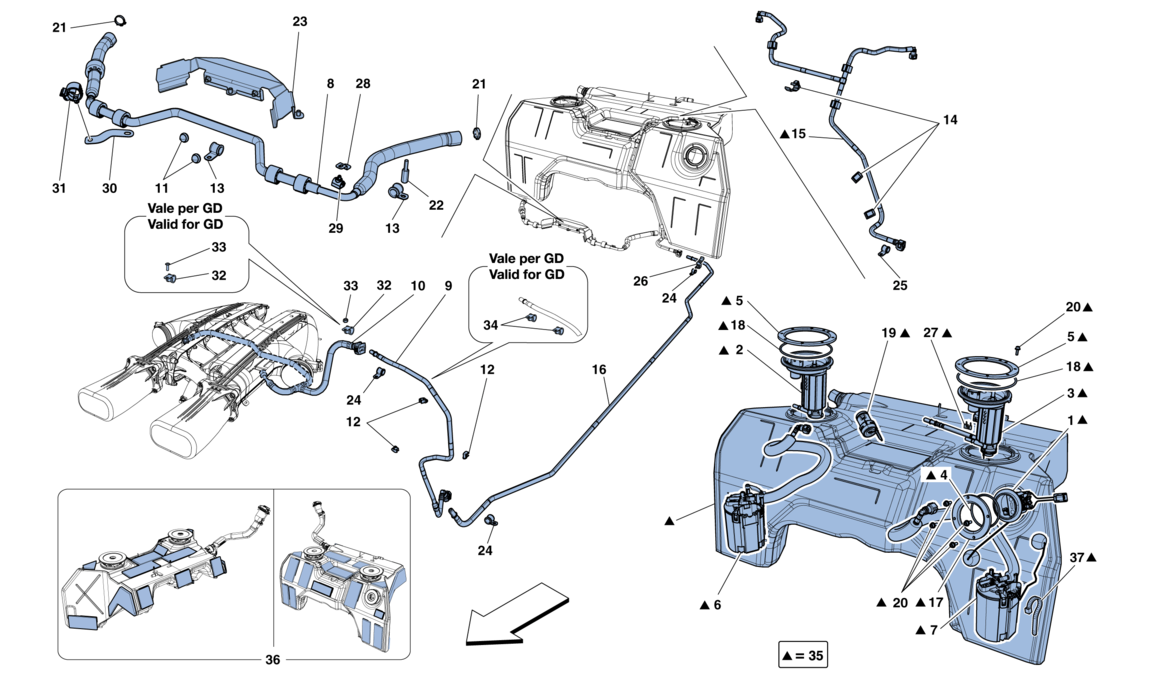

FUEL SYSTEM PUMPS AND PIPES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 273540 *Qty: 1 COMPL. INCLINATION SENSOR $653.53
Location: 2 Prev | Next Part: 282784 *Qty: 1 RH FUEL PUMP FILTER $502.23
Location: 3 Prev | Next Part: 282785 *Qty: 1 LH FUEL PUMP FILTER $865.03
Location: 4 Prev | Next Part: 239413 *Qty: 1 O-RING $6.68
Location: 5 Prev | Next Part: 275998 *Qty: 2 FASTENER RING $37.29
Location: 6 Prev | Next Part: 272086 *Qty: 1 RH FUEL PUMP $959.76
Location: 7 Prev | Next Part: 272087 *Qty: 1 LH FUEL PUMP $959.76
Location: 8 Prev | Next Part: 290771 *Qty: 1 LOWER CONNECTOR PIPE $340.37
Location: 9 Prev | Next Part: 282074 *Qty: 1 FUEL DELIVERY PIPE, FRONT SECTION -Not for GD- -Applicable until depletion- $85.43
Location: 9 Prev | Next Part: 295009 *Qty: 1 FUEL DELIVERY PIPE, FRONT SECTION -Not for GD- -Applicable after depletion of 282074- Call
Location: 9 Prev | Next Part: 289734 *Qty: 1 FUEL DELIVERY PIPE, FRONT SECTION -Applicable for GD- -Applicable until depletion- Call
Location: 9 Prev | Next Part: 295010 *Qty: 1 FUEL DELIVERY PIPE, FRONT SECTION -Applicable for GD- -Applicable after depletion of 289734- Call
Location: 10 Prev | Next Part: 281193 *Qty: 1 LOW PRESSURE FUEL PIPE -Not for USA, CDN, GD, USA LIGHT- Call
Location: 10 Prev | Next Part: 294152 *Qty: 1 LOW PRESSURE FUEL PIPE -Applicable for GD- Call
Location: 11 Prev | Next Part: 14622387 *Qty: 2 CAP $3.97
Location: 12 Prev | Next Part: 235682 *Qty: 3 BRACKET WITH SHEATH -x2 for GD- Call
Location: 13 Prev | Next Part: 10441890 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 14 Prev | Next Part: 257886 *Qty: 3 RAYMOND CLIP Call
Location: 15 Prev | Next Part: 281180 *Qty: 1 REAR FUEL DELIVERY PIPE Call
Location: 16 Prev | Next Part: 277364 *Qty: 1 FUEL DELIVERY PIPE, CENTRE SECTION $33.60
Location: 17 Prev | Next Part: 276001 *Qty: 1 FASTENER RING $60.90
Location: 18 Prev | Next Part: 239412 *Qty: 2 O-RING Superseded
Location: 19 Prev | Next Part: 237407 *Qty: 1 ANTI SPIT-BACK VALVE $35.16
Location: 20 Prev | Next Part: 256323 *Qty: 20 SCREW -M5 X 16- $0.90
Location: 21 Prev | Next Part: 281598 *Qty: 2 COLLAR WITH SNAP FASTENER Call
Location: 22 Prev | Next Part: 178772 *Qty: 1 SPACER STUD $10.67
Location: 23 Prev | Next Part: 277360 *Qty: 1 HEAT SHIELD Call
Location: 24 Prev | Next Part: 10441290 *Qty: 3 BRACKET WITH SHEATH -D. 10- $0.90
Location: 25 Prev | Next Part: 10441490 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 26 Prev | Next Part: 286193 *Qty: 1 FUEL PIPE FASTENER BRACKET Call
Location: 27 Prev | Next Part: 238688 *Qty: 2 CONNECTOR $56.81
Location: 28 Prev | Next Part: 290800 *Qty: 1 CONNECTOR PIPE MOUNTING BRACKET Call
Location: 29 Prev | Next Part: 263230 *Qty: 1 CLIP Call
Location: 30 Prev | Next Part: 286534 *Qty: 1 PIPE MOUNTING BRACKET Call
Location: 31 Prev | Next Part: 259508 *Qty: 1 CLIP $0.90
Location: 32 Prev | Next Part: 10441490 *Qty: 1 BRACKET WITH SHEATH -Not for GD- $0.90
Location: 32 Prev | Next Part: 290424 *Qty: 1 BRACKET WITH SHEATH -Applicable for GD- Call
Location: 33 Prev | Next Part: 14040611 *Qty: 1 NUT -Not for GD- $0.90
Location: 33 Prev | Next Part: 65377400 *Qty: 1 SCREW -M6 X 1 X 18- -Applicable for GD- Superseded
Location: 34 Prev | Next Part: 296614 *Qty: 2 BRACKET WITH SHEATH -D. 10- -Applicable for GD- Call
Location: 35 Prev | Next Part: 288623 *Qty: 1 COMPL. TANK Call
Location: 36 Prev | Next Part: 277365 *Qty: 1 FUEL TANK ANTI-VIBRATION PAD KIT Call
Location: 37 Prev | Next Part: 10815787 *Qty: 1 RING CLAMP Call

* Quantity shown indicates the number of pieces used in the diagram.
