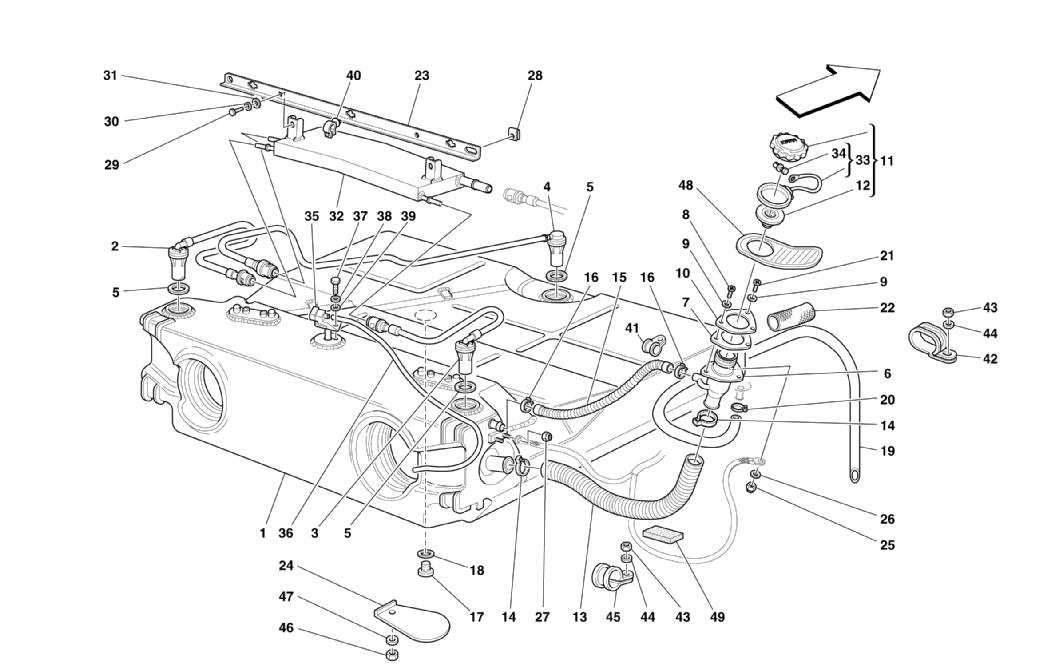

FUEL TANK - UNION AND PIPING -NOT FOR USA AND CDN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 185442 *Qty: 1 FUEL TANK $2,793.77
Location: 2 Prev | Next Part: 181935 *Qty: 1 L.H. VALVE COMPLETED WITH PIPING $222.21
Location: 3 Prev | Next Part: 181936 *Qty: 1 R.H. VALVE COMPLETED WITH PIPING $222.21
Location: 4 Prev | Next Part: 180469 *Qty: 1 VALVE COMPLETED WITH PIPING -Valid till stock exhaustion Call
Location: 4 Prev | Next Part: 196488 *Qty: 1 VALVE COMPLETED WITH PIPING $210.36
Location: 5 Prev | Next Part: 195049 *Qty: 3 GASKET $34.94
Location: 6 Prev | Next Part: 171278 *Qty: 1 FILLER $276.27
Location: 7 Prev | Next Part: 174095 *Qty: 1 GASKET $6.51
Location: 8 Prev | Next Part: 13276470 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 174093 *Qty: 1 FLANGE $10.71
Location: 11 Prev | Next Part: 185780 *Qty: 1 PLUG Call
Location: 12 Prev | Next Part: 180119 *Qty: 1 GASKET Superseded
Location: 13 Prev | Next Part: 167131 *Qty: 1 FILLER-TANK CONNECTING PIPE $37.74
Location: 14 Prev | Next Part: 170127 *Qty: 2 SCREW COLLAR $1.39
Location: 15 Prev | Next Part: 165132 *Qty: 1 VENT PIPE FROM TANK TO FILLER $34.57
Location: 16 Prev | Next Part: 164015 *Qty: 2 SCREW COLLAR $0.93
Location: 17 Prev | Next Part: 148045 *Qty: 1 THREADED PLUG $23.09
Location: 18 Prev | Next Part: 123622 *Qty: 1 O.R. GASKET $1.97
Location: 19 Prev | Next Part: 179851 *Qty: 1 RUBBER HOSE $31.66
Location: 20 Prev | Next Part: 161490 *Qty: 1 SCREW COLLAR $4.08
Location: 21 Prev | Next Part: 14778418 *Qty: 1 SCREW $1.06
Location: 22 Prev | Next Part: 171163 *Qty: 1 PROTECTION SHEATH Call
Location: 23 Prev | Next Part: 196078 *Qty: 1 BRACKET Call
Location: 23 Prev | Next Part: 187725 *Qty: 1 BRACKET -Valid till stock exhaustion $29.16
Location: 24 Prev | Next Part: 66849400 *Qty: 1 FUEL EXHAUST SEAL DOOR $13.26
Location: 25 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 12648277 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 62766300 *Qty: 2 CLIP $0.97
Location: 29 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 30 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 185441 *Qty: 1 DISAREATOR $360.16
Location: 33 Prev | Next Part: 186866 *Qty: 1 COMPLETE RING $37.38
Location: 34 Prev | Next Part: 186172 *Qty: 1 RETAINER $0.90
Location: 35 Prev | Next Part: 179137 *Qty: 1 FUEL PRESSURE SENSOR $242.58
Location: 36 Prev | Next Part: 115148 *Qty: 1 RUBBER HOSE $5.15
Location: 37 Prev | Next Part: 10977714 *Qty: 1 SCREW $0.90
Location: 38 Prev | Next Part: 12601174 *Qty: 1 WASHER $0.90
Location: 39 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 40 Prev | Next Part: 178430 *Qty: 3 FIXING CLIP $259.98
Location: 41 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 42 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH $2.23
Location: 43 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 44 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 45 Prev | Next Part: 172995 *Qty: 1 BRACKET WITH SHEATH $4.11
Location: 46 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 47 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 48 Prev | Next Part: 67194500 *Qty: 1 RUBBER PROTECTION $13.22
Location: 49 Prev | Next Part: 177749 *Qty: 1 RUBBER THICKNESS FOR PIPE $4.63

* Quantity shown indicates the number of pieces used in the diagram.
