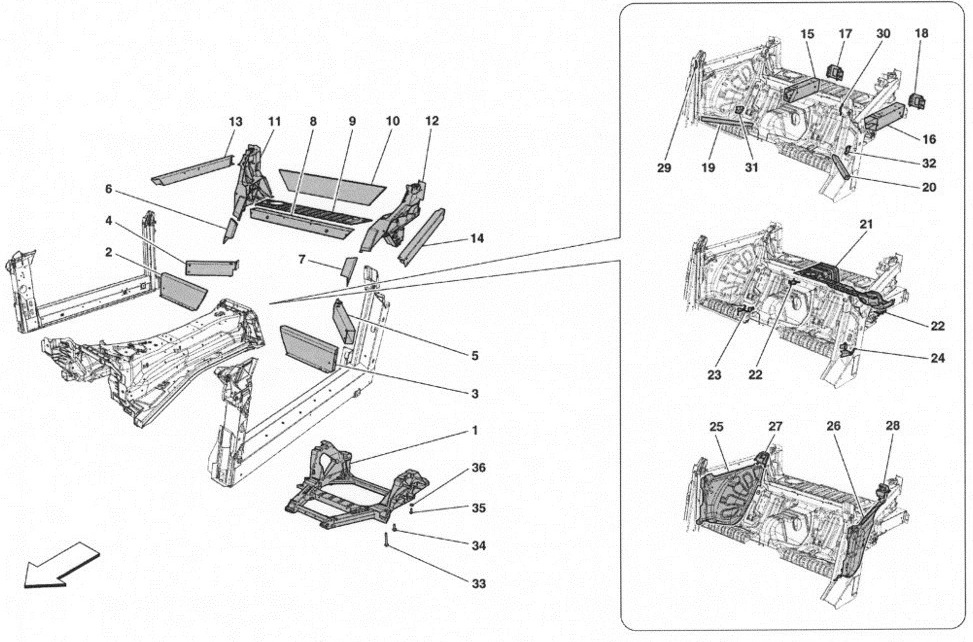

REAR STRUCTURAL ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 265466 *Qty: 0 REAR SUBFRAME -Not available for sale- -Applicable up to Ass. No. 100296- Call
Location: 1 Prev | Next Part: 277269 *Qty: 0 REAR SUBFRAME -Not available for sale- -Applicable from Ass. No. 100297 up to Ass. No. 100724- Call
Location: 1 Prev | Next Part: 277409 *Qty: 0 REAR SUBFRAME -Not available for sale- -Applicable from Ass. No. 100725 up to Ass. No. 101569- Call
Location: 1 Prev | Next Part: 283293 *Qty: 0 REAR SUBFRAME -Not available for sale- -Applicable from Ass. No. 101570- Call
Location: 2 Prev | Next Part: 265293 *Qty: 0 RH LOWER REAR FLOOR CROSS-PIECE -Not available for sale- -Applicable up to Ass. No. 100296- Call
Location: 2 Prev | Next Part: 276482 *Qty: 0 RH LOWER REAR FLOOR CROSS-PIECE -Not available for sale- -Applicable from Ass. No. 100297- Call
Location: 3 Prev | Next Part: 265292 *Qty: 0 LH LOWER REAR FLOOR CROSS-PIECE -Not available for sale- -Applicable up to Ass. No. 100296- Call
Location: 3 Prev | Next Part: 276481 *Qty: 0 LH LOWER REAR FLOOR CROSS-PIECE -Not available for sale- -Applicable from Ass. No. 100297- Call
Location: 4 Prev | Next Part: 265600 *Qty: 0 WER RH REAR DIAGONAL BRACE -Not available for sale- Call
Location: 5 Prev | Next Part: 265599 *Qty: 0 LOWER LH REAR DIAGONAL BRACE -Not available for sale- Call
Location: 6 Prev | Next Part: 275088 *Qty: 0 RH REAR SEAT BASE UPRIGHT Call
Location: 7 Prev | Next Part: 275089 *Qty: 0 LH REAR SEAT BASE UPRIGHT Call
Location: 8 Prev | Next Part: 265237 *Qty: 0 REAR CROSS-PIECE OF FRONT STEP Call
Location: 9 Prev | Next Part: 265225 *Qty: 0 TANK COVER Call
Location: 10 Prev | Next Part: 265224 *Qty: 0 REAR CROSS-PIECE OF REAR STEP Call
Location: 11 Prev | Next Part: 275082 *Qty: 0 RH UPPER REAR SUSPENSION MOUNT CASTING -Not available for sale- -Applicable up to Ass. No. 100724- Call
Location: 11 Prev | Next Part: 277251 *Qty: 0 RH UPPER REAR SUSPENSION MOUNT CASTING -Not available for sale- -Applicable from Ass. No. 100725- -Applicable until depletion- Call
Location: 11 Prev | Next Part: 280366 *Qty: 0 RH UPPER REAR SUSPENSION MOUNT CASTING -Not available for sale- -Applicable from Ass. No. 100725- -Applicable after depletion of 277251- Call
Location: 12 Prev | Next Part: 275083 *Qty: 0 LH UPPER REAR SUSPENSION MOUNT CASTING -Not available for sale- -Applicable up to Ass. No. 100724- Call
Location: 12 Prev | Next Part: 277250 *Qty: 0 LH UPPER REAR SUSPENSION MOUNT CASTING -Not available for sale- -Applicable from Ass. No. 100725- -Applicable until depletion- Call
Location: 12 Prev | Next Part: 280367 *Qty: 0 LH UPPER REAR SUSPENSION MOUNT CASTING -Not available for sale- -Applicable from Ass. No. 100725- -Applicable after depletion of 277250- Call
Location: 13 Prev | Next Part: 265276 *Qty: 0 RH UPPER REAR DIAGONAL BRACE Call
Location: 14 Prev | Next Part: 265275 *Qty: 0 LH UPPER REAR DIAGONAL BRACE Call
Location: 15 Prev | Next Part: 275159 *Qty: 0 REAR RH STRUT Call
Location: 16 Prev | Next Part: 275160 *Qty: 0 REAR LH STRUT Call
Location: 17 Prev | Next Part: 265213 *Qty: 0 REAR RH STRUT FLANGE Call
Location: 18 Prev | Next Part: 268662 *Qty: 0 REAR LH STRUT FLANGE Call
Location: 19 Prev | Next Part: 275092 *Qty: 0 LOWER RH REAR JOINT REINFORCEMENT Call
Location: 20 Prev | Next Part: 275093 *Qty: 0 LOWER LH REAR JOINT REINFORCEMENT Call
Location: 21 Prev | Next Part: 268922 *Qty: 0 REAR SERVICES TRAY Call
Location: 22 Prev | Next Part: 265936 *Qty: 0 REAR TORSION BAR MOUNTING BRACKET Call
Location: 23 Prev | Next Part: 275239 *Qty: 0 RH REAR BRAKE HOSE FASTENER BRACKET $128.16
Location: 24 Prev | Next Part: 275235 *Qty: 0 LH REAR BRAKE HOSE FASTENER BRACKET $128.16
Location: 25 Prev | Next Part: 266135 *Qty: 0 RH REAR WHEELHOUSE -Applicable until depletion- Call
Location: 25 Prev | Next Part: 280202 *Qty: 0 RH REAR WHEELHOUSE -Applicable after depletion of 266135- Call
Location: 26 Prev | Next Part: 266134 *Qty: 0 LH REAR WHEELHOUSE -Applicable until depletion- Call
Location: 26 Prev | Next Part: 280200 *Qty: 0 LH REAR WHEELHOUSE -Applicable after depletion of 266134- Call
Location: 27 Prev | Next Part: 271517 *Qty: 0 RH SEAT LATCH FASTENER BRACKET Call
Location: 28 Prev | Next Part: 271511 *Qty: 0 LH SEAT LATCH FASTENER BRACKET Call
Location: 29 Prev | Next Part: 272904 *Qty: 0 SIDE PANEL FASTENER BRACKET ON RH PILLAR Call
Location: 30 Prev | Next Part: 272903 *Qty: 0 SIDE PANEL FASTENER BRACKET ON LH PILLAR Call
Location: 31 Prev | Next Part: 269847 *Qty: 0 RH LATERAL SEAT BELT MOUNTING BRACKET Call
Location: 32 Prev | Next Part: 269846 *Qty: 0 LH LATERAL SEAT BELT MOUNTING BRACKET Call
Location: 33 Prev | Next Part: 268371 *Qty: 0 SCREW -M12 X 1.75 X 100- Call
Location: 34 Prev | Next Part: 239868 *Qty: 0 SCREW -M12 X 1.75 X 45- Call
Location: 35 Prev | Next Part: 14306824 *Qty: 0 SCREW -M8 X 45- $0.90
Location: 35 Prev | Next Part: 14359521 *Qty: 0 SCREW -M8 X 80- $1.34
Location: 35 Prev | Next Part: 16288724 *Qty: 0 SCREW -M10 X 40- Call
Location: 36 Prev | Next Part: 12646724 *Qty: 0 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
