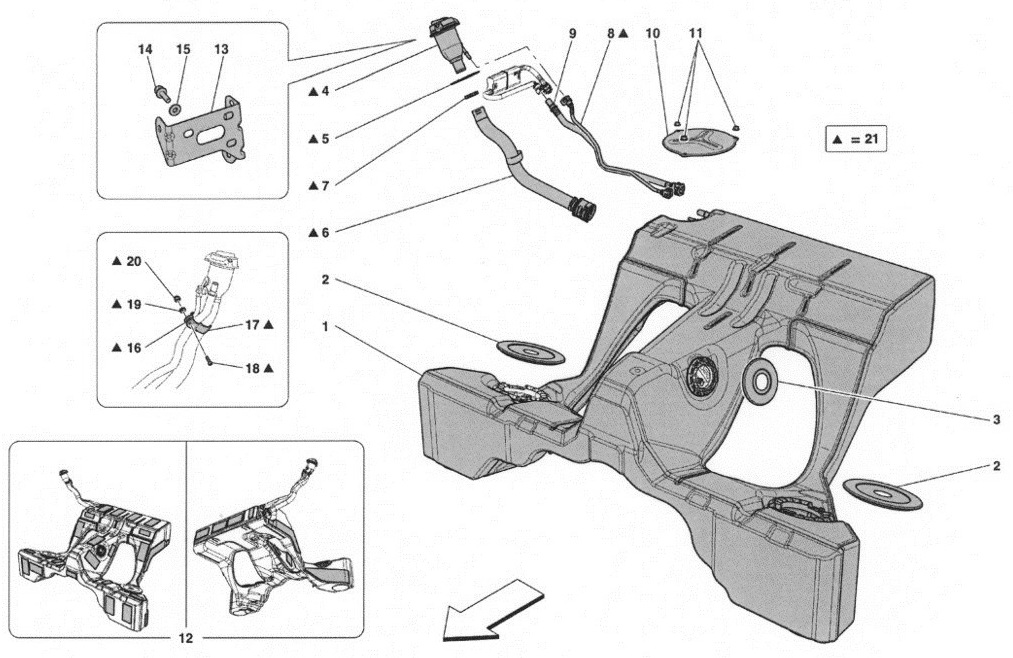

FUEL TANKS AND FILLER NECK

Go to Split View

FUEL TANKS AND FILLER NECK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 264033 *Qty: 0 FUEL TANK -Applicable up to Ass. No. 102155- Call
Location: 1 Prev | Next Part: 282718 *Qty: 0 FUEL TANK -Applicable from Ass. No. 102156- Call
Location: 2 Prev | Next Part: 250481 *Qty: 0 INSPECTION CAP $53.46
Location: 3 Prev | Next Part: 250480 *Qty: 0 INSPECTION CAP $30.85
Location: 4 Prev | Next Part: 274549 *Qty: 0 FUEL FILLER NECK -No longer supplied- -Replaced by 278323- Superseded
Location: 5 Prev | Next Part: 260240 *Qty: 0 FILLER NECK FLANGE GASKET -No longer supplied- -Replaced by 278323- $14.30
Location: 6 Prev | Next Part: 264029 *Qty: 0 COMPL. FUEL FILLER NECK CONNECTOR PIPE -No longer supplied- -Replaced by 279519- Call
Location: 6 Prev | Next Part: 279519 *Qty: 0 COMPL. FUEL FILLER NECK CONNECTOR PIPE -No longer supplied- -Replaced by 278323- Call
Location: 7 Prev | Next Part: 10718670 *Qty: 0 COLLAR -No longer supplied- -Replaced by 278323- $1.69
Location: 8 Prev | Next Part: 264031 *Qty: 0 VAPOUR RECIRCULATION PIPE -No longer supplied- -Replaced by 279521- Call
Location: 8 Prev | Next Part: 279521 *Qty: 0 VAPOUR RECIRCULATION PIPE -No longer supplied- -Replaced by 278323- Call
Location: 9 Prev | Next Part: 264024 *Qty: 0 VAPOUR SEPARATOR PIPE -Applicable until depletion- Call
Location: 9 Prev | Next Part: 279522 *Qty: 0 VAPOUR SEPARATOR PIPE -Applicable after depletion of 264024- Call
Location: 10 Prev | Next Part: 272714 *Qty: 0 COMPL. REAR INSPECTION COVER Call
Location: 11 Prev | Next Part: 14040514 *Qty: 0 NUT $0.90
Location: 12 Prev | Next Part: 262252 *Qty: 0 FUEL TANK VIBRATION DAMPER PAD KIT Call
Location: 13 Prev | Next Part: 84282600 *Qty: 0 FILLER NECK SHIELD BRACKET Call
Location: 14 Prev | Next Part: 13833221 *Qty: 0 SCREW $1.79
Location: 15 Prev | Next Part: 12624101 *Qty: 0 WASHER $0.90
Location: 16 Prev | Next Part: 276850 *Qty: 0 UPPER MOUNT -No longer supplied- -Replaced by 278323- Call
Location: 17 Prev | Next Part: 276851 *Qty: 0 LOWER MOUNT -No longer supplied- -Replaced by 278323- Call
Location: 18 Prev | Next Part: 14304321 *Qty: 0 SCREW -No longer supplied- -Replaced by 278323- $0.90
Location: 19 Prev | Next Part: 13579101 *Qty: 0 WASHER -No longer supplied- -Replaced by 278323- $0.90
Location: 20 Prev | Next Part: 169180 *Qty: 0 NUT -No longer supplied- -Replaced by 278323- $0.90
Location: 21 Prev | Next Part: 278323 *Qty: 0 FUEL FILLER PIPE ASSEMBLY $751.65

* Quantity shown indicates the number of pieces used in the diagram.
