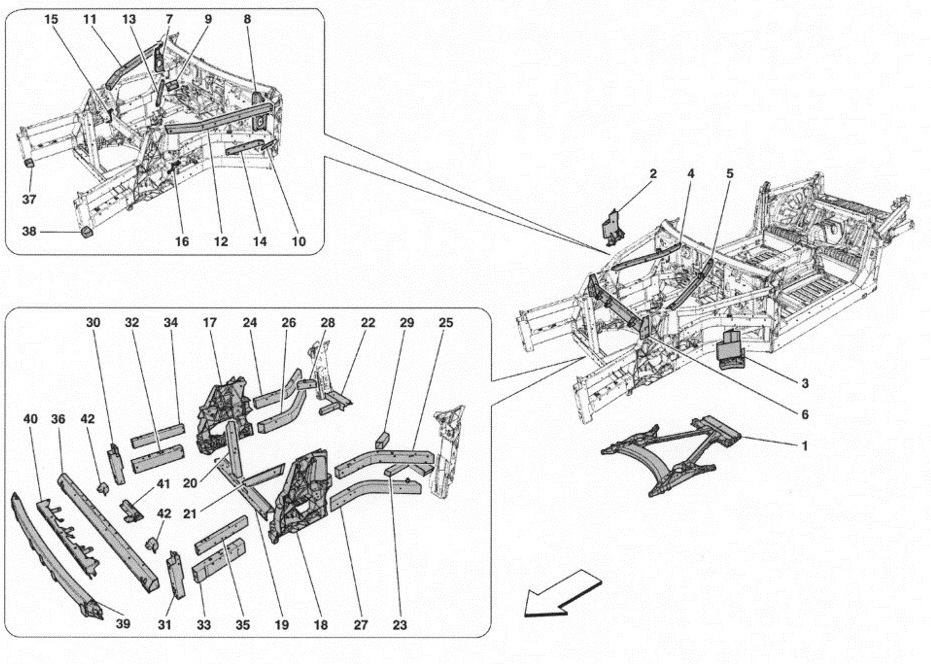

FRONT STRUCTURAL ELEMENTS

Go to Split View

FRONT STRUCTURAL ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 265529 *Qty: 0 ENGINE SUBFRAME -Not available for sale- Call
Location: 2 Prev | Next Part: 265485 *Qty: 0 RH FRONT LOWER -Not available for sale- -Applicable until depletion- Call
Location: 2 Prev | Next Part: 279287 *Qty: 0 RH FRONT LOWER -Not available for sale- -Applicable after depletion of 265485- Call
Location: 3 Prev | Next Part: 265486 *Qty: 0 LH FRONT LOWER -Not available for sale- -Applicable until depletion- Call
Location: 3 Prev | Next Part: 279288 *Qty: 0 LH FRONT LOWER -Not available for sale- -Applicable after depletion of 265486- Call
Location: 4 Prev | Next Part: 265605 *Qty: 0 RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Call
Location: 5 Prev | Next Part: 265606 *Qty: 0 LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE -Not for GD- Call
Location: 5 Prev | Next Part: 279231 *Qty: 0 LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE -Applicable for GD- Call
Location: 6 Prev | Next Part: 276508 *Qty: 0 REMOVABLE CROSS-MEMBER Call
Location: 7 Prev | Next Part: 269291 *Qty: 0 RH OUTER FIREWALL ENDPIECE Call
Location: 8 Prev | Next Part: 269290 *Qty: 0 LH OUTER FIREWALL ENDPIECE Call
Location: 9 Prev | Next Part: 269304 *Qty: 0 RH PILLAR ENDPIECE -No longer supplied- -Replaced by 284526- Call
Location: 9 Prev | Next Part: 284526 *Qty: 0 RH PILLAR ENDPIECE Call
Location: 10 Prev | Next Part: 269303 *Qty: 0 LH PILLAR ENDPIECE -No longer supplied- -Replaced by 284525- Call
Location: 10 Prev | Next Part: 284525 *Qty: 0 LH PILLAR ENDPIECE Call
Location: 11 Prev | Next Part: 265295 *Qty: 0 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE -Not for GD- Call
Location: 11 Prev | Next Part: 277103 *Qty: 0 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE -Applicable for GD- Call
Location: 12 Prev | Next Part: 265294 *Qty: 0 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE -Not for GD- Call
Location: 12 Prev | Next Part: 277102 *Qty: 0 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE -Applicable for GD- Call
Location: 13 Prev | Next Part: 270672 *Qty: 0 CONNECTION BETWEEN PILLAR AND RH FRONT LOWER Call
Location: 14 Prev | Next Part: 270670 *Qty: 0 CONNECTION BETWEEN PILLAR AND LH FRONT LOWER Call
Location: 15 Prev | Next Part: 271437 *Qty: 0 RH FRONT BRAKE BRACKET Call
Location: 16 Prev | Next Part: 271436 *Qty: 0 LH FRONT BRAKE BRACKET Call
Location: 17 Prev | Next Part: 276196 *Qty: 0 RH FRONT SUSPENSION MOUNT CASTING -Not for GD- Call
Location: 17 Prev | Next Part: 277112 *Qty: 0 RH FRONT SUSPENSION MOUNT CASTING -Applicable for GD- Call
Location: 18 Prev | Next Part: 276195 *Qty: 0 LH FRONT SUSPENSION MOUNT CASTING -Not for GD- Call
Location: 18 Prev | Next Part: 277111 *Qty: 0 LH FRONT SUSPENSION MOUNT CASTING -Applicable for GD- Call
Location: 19 Prev | Next Part: 266037 *Qty: 0 FRONT SUBFRAME CROSS-MEMBER Call
Location: 20 Prev | Next Part: 265539 *Qty: 0 RH FRONT DIAGONAL SUBFRAME BRACE -Not available for sale- Call
Location: 21 Prev | Next Part: 265540 *Qty: 0 LH FRONT DIAGONAL SUBFRAME BRACE -Not available for sale- -Not for GD- Call
Location: 21 Prev | Next Part: 277064 *Qty: 0 LH FRONT DIAGONAL SUBFRAME BRACE -Not available for sale- -Applicable for GD- Call
Location: 22 Prev | Next Part: 265557 *Qty: 0 LOWER RH EXTRUSION -Not available for sale- -Not for GD- Call
Location: 22 Prev | Next Part: 278213 *Qty: 0 LOWER RH EXTRUSION -Not available for sale- -Applicable for GD- Call
Location: 23 Prev | Next Part: 265558 *Qty: 0 LOWER LH EXTRUSION -Not available for sale- -Not for GD- Call
Location: 23 Prev | Next Part: 279130 *Qty: 0 LOWER LH EXTRUSION -Not available for sale- -Applicable for GD- Call
Location: 24 Prev | Next Part: 265517 *Qty: 0 RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- Call
Location: 24 Prev | Next Part: 276469 *Qty: 0 RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Applicable for GD- Call
Location: 25 Prev | Next Part: 265306 *Qty: 0 LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- Call
Location: 25 Prev | Next Part: 274946 *Qty: 0 LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Applicable for GD- Call
Location: 26 Prev | Next Part: 265519 *Qty: 0 LOWER RH DIAGONAL FIREWALL BRACE -Not available for sale- Call
Location: 27 Prev | Next Part: 265521 *Qty: 0 LOWER LH DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- Call
Location: 27 Prev | Next Part: 281477 *Qty: 0 LOWER LH DIAGONAL FIREWALL BRACE -Not available for sale- -Applicable for GD- Call
Location: 28 Prev | Next Part: 268370 *Qty: 0 RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- -No longer supplied- -Replaced by 279223- Call
Location: 28 Prev | Next Part: 279223 *Qty: 0 RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- Call
Location: 28 Prev | Next Part: 279222 *Qty: 0 RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Applicable for GD- Call
Location: 29 Prev | Next Part: 265515 *Qty: 0 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- -No longer supplied- -Replaced by 279220- Call
Location: 29 Prev | Next Part: 279220 *Qty: 0 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Not for GD- Call
Location: 29 Prev | Next Part: 279224 *Qty: 0 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE -Not available for sale- -Applicable for GD- Call
Location: 30 Prev | Next Part: 265536 *Qty: 0 RH FRONT CRASH BOX CROSS MEMBER STRUT -Not for GD- -Applicable up to Ass. No. 101576- Call
Location: 30 Prev | Next Part: 277027 *Qty: 0 RH FRONT CRASH BOX CROSS MEMBER STRUT -Not for GD- -Applicable from Ass. No. 101577- Call
Location: 30 Prev | Next Part: 277967 *Qty: 0 RH FRONT CRASH BOX CROSS MEMBER STRUT -Applicable for GD- Call
Location: 31 Prev | Next Part: 265537 *Qty: 0 LH FRONT CRASH BOX CROSS MEMBER STRUT -Applicable up to Ass. No. 101576- Call
Location: 31 Prev | Next Part: 277028 *Qty: 0 LH FRONT CRASH BOX CROSS MEMBER STRUT -Applicable from Ass. No. 101577- Call
Location: 32 Prev | Next Part: 266470 *Qty: 0 RH LOWER FRONT STRUT -Not for GD- Call
Location: 32 Prev | Next Part: 277950 *Qty: 0 RH LOWER FRONT STRUT -Applicable for GD- Call
Location: 33 Prev | Next Part: 266469 *Qty: 0 LH LOWER FRONT STRUT -Not for GD- $978.15
Location: 33 Prev | Next Part: 277948 *Qty: 0 LH LOWER FRONT STRUT -Applicable for GD- Call
Location: 34 Prev | Next Part: 265531 *Qty: 0 RH UPPER FRONT STRUT -Not for GD- Call
Location: 34 Prev | Next Part: 277101 *Qty: 0 RH UPPER FRONT STRUT -Applicable for GD- Call
Location: 35 Prev | Next Part: 265534 *Qty: 0 LH UPPER FRONT STRUT -Not for GD- Call
Location: 35 Prev | Next Part: 277100 *Qty: 0 LH UPPER FRONT STRUT -Applicable for GD- Call
Location: 36 Prev | Next Part: 277735 *Qty: 0 COMPL. FRONT BUMPER CROSS MEMBER -Replaced by 265538 and 277191- -No longer supplied- Call
Location: 36 Prev | Next Part: 265538 *Qty: 0 COMPL. FRONT BUMPER CROSS MEMBER -Not for GD- -Applicable up to Ass. No. 101576- -Applicable until depletion- Call
Location: 36 Prev | Next Part: 277191 *Qty: 0 COMPL. FRONT BUMPER CROSS MEMBER -Applicable for GD- -Applicable up to Ass. No. 101576- -Applicable until depletion- Call
Location: 36 Prev | Next Part: 281168 *Qty: 0 COMPL. FRONT BUMPER CROSS MEMBER -Not for GD- -Applicable from Ass. No. 101577- -Applicable after depletion of 265538- $273.28
Location: 36 Prev | Next Part: 281168 *Qty: 0 COMPL. FRONT BUMPER CROSS MEMBER -Applicable for GD- -Applicable from Ass. No. 101577- -Applicable after depletion of 277191- $273.28
Location: 37 Prev | Next Part: 266038 *Qty: 0 BRACKET ON RH CRASH BOX STRUT $99.80
Location: 38 Prev | Next Part: 269329 *Qty: 0 BRACKET ON LH CRASH BOX STRUT Call
Location: 39 Prev | Next Part: 83353400 *Qty: 0 LOWER FRONT CROSS-MEMBER Call
Location: 40 Prev | Next Part: 82983100 *Qty: 0 SHELF CROSS MEMBER Call
Location: 41 Prev | Next Part: 83839000 *Qty: 0 ENGINE COMPARTMENT LID HINGE MOUNTING BRACKET $111.77
Location: 42 Prev | Next Part: 82439800 *Qty: 0 FRONT BRACKET $37.15

* Quantity shown indicates the number of pieces used in the diagram.
