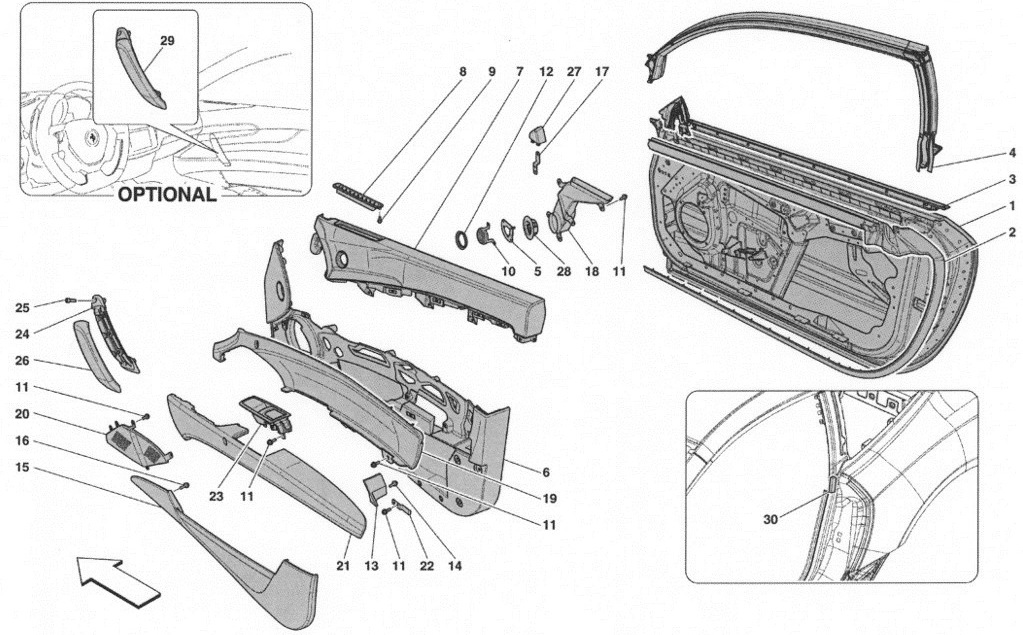

DOORS - SUBSTRUCTURE AND TRIM

Go to Split View

DOORS - SUBSTRUCTURE AND TRIM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83207711 *Qty: 0 COMPL. RH LATERAL DOOR -Not for GD- $7,078.76
Location: 1 Prev | Next Part: 83992211 *Qty: 0 COMPL. RH LATERAL DOOR -Applicable for GD- Call
Location: 1 Prev | Next Part: 83207811 *Qty: 0 COMPL. LH LATERAL DOOR -Not for GD- $7,078.76
Location: 1 Prev | Next Part: 83992311 *Qty: 0 COMPL. LH LATERAL DOOR -Applicable for GD- Call
Location: 2 Prev | Next Part: 83461800 *Qty: 0 LOWER DOOR PERIMETER SEAL $220.55
Location: 3 Prev | Next Part: 82208200 *Qty: 0 RH INT. WINDOW SCRAPER SEAL -No longer supplied- -Replaced by 84311900- Call
Location: 3 Prev | Next Part: 84311900 *Qty: 0 RH INT. WINDOW SCRAPER SEAL $360.23
Location: 3 Prev | Next Part: 82208300 *Qty: 0 LH INT. WINDOW SCRAPER SEAL -No longer supplied- -Replaced by 84312000- Call
Location: 3 Prev | Next Part: 84312000 *Qty: 0 LH INT. WINDOW SCRAPER SEAL $360.23
Location: 4 Prev | Next Part: 82208000 *Qty: 0 RH EXT. WINDOW SCRAPER SEAL $315.29
Location: 4 Prev | Next Part: 82208100 *Qty: 0 LH EXT. WINDOW SCRAPER SEAL $315.29
Location: 5 Prev | Next Part: 82539400 *Qty: 0 ADAPTOR FOR TWEETER $6.47
Location: 6 Prev | Next Part: 83698700 *Qty: 0 RH INNER DOOR TRIM -Leather Leather- -INTP- -INTS- -DSH5- $2,937.18
Location: 6 Prev | Next Part: 83698800 *Qty: 0 LH INNER DOOR TRIM -Leather Leather- -INTP- -INTS- -DSH5- $2,937.18
Location: 7 Prev | Next Part: 83752700 *Qty: 0 UPPER PART OF RH DOOR PANEL -Leather Leather- -INTP- -INTS- -DSH5- -PIP3- -STC1- -STC2- $4,786.32
Location: 7 Prev | Next Part: 83752800 *Qty: 0 UPPER PART OF LH DOOR PANEL -Leather Leather- -INTP- -INTS- -DSH5- -PIP3- -STC1- -STC2- $4,786.32
Location: 8 Prev | Next Part: 820149.. *Qty: 0 RH DEMISTER -See colour grid for associating leather colour with paintwork colour- Call
Location: 8 Prev | Next Part: 820150.. *Qty: 0 LH DEMISTER -See colour grid for associating leather colour with paintwork colour- Call
Location: 9 Prev | Next Part: 16082301 *Qty: 0 SCREW -No longer supplied- -Replaced by 82238700- Call
Location: 9 Prev | Next Part: 82238700 *Qty: 0 SCREW Call
Location: 10 Prev | Next Part: 83048200 *Qty: 0 RH DOOR TWEETER GRILLE $73.43
Location: 10 Prev | Next Part: 83545000 *Qty: 0 LH DOOR TWEETER GRILLE Call
Location: 11 Prev | Next Part: 68176200 *Qty: 0 SCREW -M5 X 10- $1.33
Location: 12 Prev | Next Part: 83624400 *Qty: 0 RH CHROME BEZEL Call
Location: 12 Prev | Next Part: 83624500 *Qty: 0 LH CHROME BEZEL Call
Location: 13 Prev | Next Part: 837034.. *Qty: 0 RH POCKET SEPARATOR -Leather- Call
Location: 13 Prev | Next Part: 837035.. *Qty: 0 LH POCKET SEPARATOR -Leather- Call
Location: 14 Prev | Next Part: 68176200 *Qty: 0 SCREW -M5 X 10- $1.33
Location: 15 Prev | Next Part: 837011.. *Qty: 0 EXTERIOR PANEL OF RH DOOR POCKET -Leather- -STC1- -STC2- Call
Location: 15 Prev | Next Part: 837012.. *Qty: 0 EXTERIOR PANEL OF LH DOOR POCKET -Leather- -STC1- -STC2- Call
Location: 16 Prev | Next Part: 68176300 *Qty: 0 SCREW -M5 X 12- Call
Location: 17 Prev | Next Part: 83415000 *Qty: 0 BRACKET Call
Location: 18 Prev | Next Part: 82014700 *Qty: 0 RH DOOR AIR DUCT Call
Location: 18 Prev | Next Part: 82014800 *Qty: 0 LH DOOR AIR DUCT Call
Location: 19 Prev | Next Part: 837017.. *Qty: 0 INTERNAL RH DOOR TRIM INSERT -Leather- -STC1- -STC2- Call
Location: 19 Prev | Next Part: 843539.. *Qty: 0 INTERNAL RH DOOR TRIM INSERT -Alcantara- -STC1- -STC2- Call
Location: 19 Prev | Next Part: 837018.. *Qty: 0 INTERNAL LH DOOR TRIM INSERT -Leather- -STC1- -STC2- Call
Location: 19 Prev | Next Part: 843540.. *Qty: 0 INTERNAL LH DOOR TRIM INSERT -Alcantara- -STC1- -STC2- Call
Location: 20 Prev | Next Part: 830871.. *Qty: 0 RH DOOR WOOFER GRILLE -See colour grid for associating leather colour with paintwork colour- Call
Location: 20 Prev | Next Part: 830872.. *Qty: 0 LH DOOR WOOFER GRILLE -See colour grid for associating leather colour with paintwork colour- Call
Location: 21 Prev | Next Part: 837025.. *Qty: 0 RH ARMREST -Leather- -STC1- -STC2- Call
Location: 21 Prev | Next Part: 843541.. *Qty: 0 RH ARMREST -Alcantara- -STC1- -STC2- Call
Location: 21 Prev | Next Part: 837026.. *Qty: 0 LH ARMREST -Leather- -STC1- -STC2- Call
Location: 21 Prev | Next Part: 843543.. *Qty: 0 LH ARMREST -Alcantara- -STC1- -STC2- Call
Location: 22 Prev | Next Part: 82830500 *Qty: 0 ARMREST BRACKET Call
Location: 23 Prev | Next Part: 82014100 *Qty: 0 RH DOOR HANDLE -Not for GD- Superseded
Location: 23 Prev | Next Part: 83998700 *Qty: 0 RH DOOR HANDLE -Applicable for GD- Superseded
Location: 23 Prev | Next Part: 82014200 *Qty: 0 LH DOOR HANDLE -Not for GD- Superseded
Location: 23 Prev | Next Part: 83998800 *Qty: 0 LH DOOR HANDLE -Applicable for GD- Call
Location: 23 Prev | Next Part: 83924400 *Qty: 0 RH DOOR HANDLE -Carbon- -Not for GD- Superseded
Location: 23 Prev | Next Part: 84238300 *Qty: 0 RH DOOR HANDLE -Carbon- -Applicable for GD- Call
Location: 23 Prev | Next Part: 83924700 *Qty: 0 LH DOOR HANDLE -Carbon- -Not for GD- $526.59
Location: 23 Prev | Next Part: 84238200 *Qty: 0 LH DOOR HANDLE -Carbon- -Applicable for GD- Call
Location: 24 Prev | Next Part: 836128.. *Qty: 0 RH DOOR PULL HANDLE BODY -Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2- Call
Location: 24 Prev | Next Part: 836130.. *Qty: 0 LH DOOR PULL HANDLE BODY -Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2- Call
Location: 25 Prev | Next Part: 80731600 *Qty: 0 SCREW -M6 X 40- Call
Location: 25 Prev | Next Part: 84340000 *Qty: 0 SCREW -M6 X 45- -For carbon version- Call
Location: 26 Prev | Next Part: 839819.. *Qty: 0 COMPL. RH DOOR PULL HANDLE TRIM -Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2- Call
Location: 26 Prev | Next Part: 839820.. *Qty: 0 COMPL. LH DOOR PULL HANDLE TRIM -Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2- Call
Location: 27 Prev | Next Part: 82018600 *Qty: 0 RH DOOR INNER CORNER TRIANGLE TRIM -Black- $72.54
Location: 27 Prev | Next Part: 82018700 *Qty: 0 LH DOOR INNER CORNER TRIANGLE TRIM -Black- $72.54
Location: 28 Prev | Next Part: 83155100 *Qty: 0 LATERAL AIR VENT SURROUND $17.63
Location: 29 Prev | Next Part: 84007000 *Qty: 0 COMPL. RH DOOR PULL -Carbon- $1,600.27
Location: 29 Prev | Next Part: 84006600 *Qty: 0 COMPL. LH DOOR PULL -Carbon- $6,655.40
Location: 30 Prev | Next Part: 84599800 *Qty: 0 PLUG -L= 70- Call

* Quantity shown indicates the number of pieces used in the diagram.
