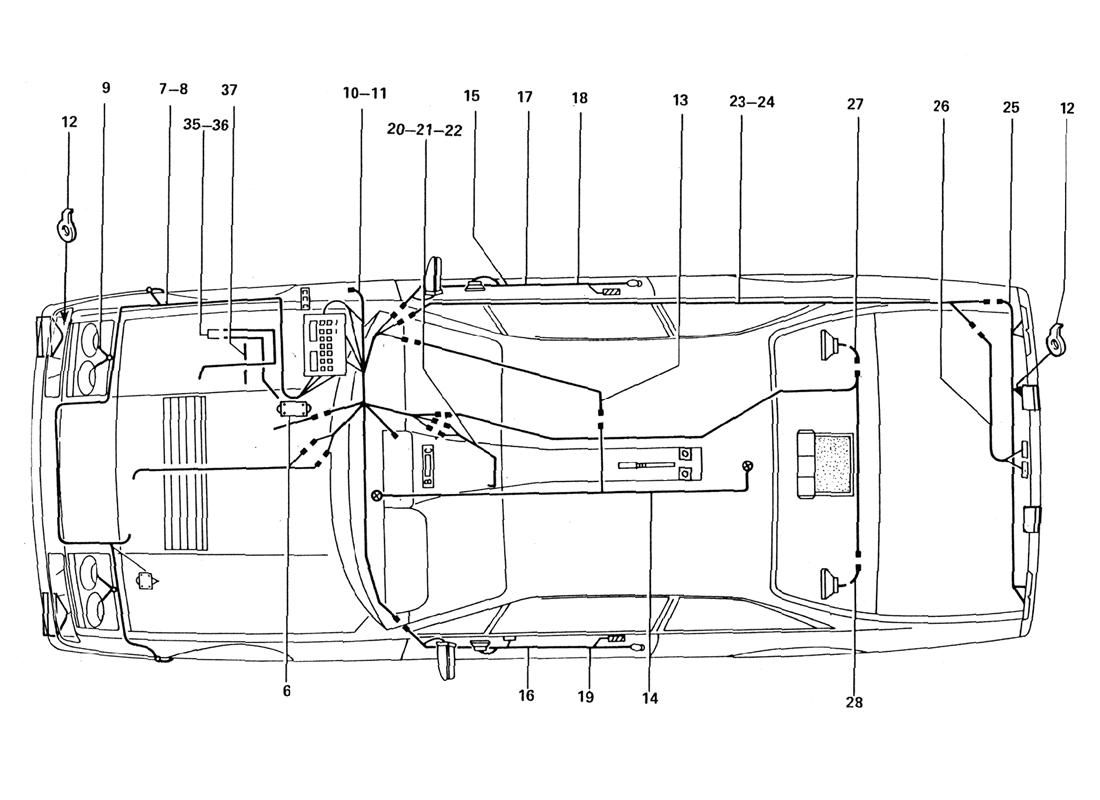

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 6 Prev | Next Part: 257-80-478 *Qty: 1 Morsettiera col leg. cavi a corrente diretta Call
Location: 7 Prev | Next Part: 257-80-480 *Qty: 1 Assieme cavi collegam. parte anter. G.S. Call
Location: 8 Prev | Next Part: 258-80-480 *Qty: 1 Assieme cavi colleg. parte ant .GD
D.V.N. 2076
Call
Location: 8 Prev | Next Part: 258-80-480 *Qty: 1 Assieme cavi collegam. parte anter. G;D.
F.V.N. 2075
Call
Location: 9 Prev | Next Part: 257-80-484 *Qty: 2 Assieme cavi collegam. proiettori abbagl. / anabbagl. Call
Location: 10 Prev | Next Part: 257-80-510 *Qty: 1 Assieme cavi colleg. plancia
D.V.N. 2038
Call
Location: 10 Prev | Next Part: 257-80-510 *Qty: 1 Assieme cavi collegam. plan ci aG.S.
F.V.N. 2037
Call
Location: 11 Prev | Next Part: 258-80-510 *Qty: 1 Assieme cavi colleg. plancia G.D.
D.V.N. 2076
Call
Location: 11 Prev | Next Part: 258-80-510 *Qty: 1 Assieme cavi collegam. planciaG.D.
F.V.N. 2075
Call
Location: 12 Prev | Next Part: 257-80-542 *Qty: 1 Terminale massa per fanale anter. fendinebbia Call
Location: 13 Prev | Next Part: 257-80-552 *Qty: 1 Assieme cavi collegam. plancia e plafoniera tetto Call
Location: 14 Prev | Next Part: 257-80-554 *Qty: 1 Assieme cavi collegam. plafoniera tetto Call
Location: 15 Prev | Next Part: 257-80-570 *Qty: 1 Assieme cavi collegam. pbrta destra Call
Location: 16 Prev | Next Part: 257-80-571 *Qty: 1 Assieme cavi collegam. porta sinistra Call
Location: 17 Prev | Next Part: 258-80-571 *Qty: 1 Cavi porta D. Call
Location: 18 Prev | Next Part: 257-80-574 *Qty: 1 Cavi chiusura port a D. Call
Location: 19 Prev | Next Part: 257-80-575 *Qty: 1 Cavi chiusura porta S. Call
Location: 20 Prev | Next Part: 257-80-580 *Qty: 1 Assieme cavi col leg. comandi consolle Call
Location: 21 Prev | Next Part: 258-80-580 *Qty: 1 Cavi comando consolleG.D. Call
Location: 22 Prev | Next Part: 257-80-588 *Qty: 1 Cavi tunnel Call
Location: 23 Prev | Next Part: 257-80-600 *Qty: 1 Assieme cavi collegam parte posteriore
F.V.N. 2011
Call
Location: 23 Prev | Next Part: 257-80-600 *Qty: 1 Assieme cavi parte post. (Fino 2109 solo per versione Svizzera)
F.V.N. 2078
Call
Location: 23 Prev | Next Part: 257-80-600 *Qty: 1 Assieme cavi parte post. (Fino 2109 solo per versione Svizzera)
D.V.N. 2079
Call
Location: 24 Prev | Next Part: 258-80-600 *Qty: 1 Cavi parte post.G.D.
D.V.N.2076
Call
Location: 24 Prev | Next Part: 258-80-600 *Qty: 1 Cavi parte post.G.D.
F.V.N.2075
Call
Location: 24 Prev | Next Part: 258-80-600 *Qty: 1 Cavi parte post.G.D.
D.V.N. 2038
Call
Location: 24 Prev | Next Part: 258-80-600 *Qty: 1 Cavi parte posterioreG . D
F.V.N.2011
Call
Location: 24 Prev | Next Part: 258-80-600 *Qty: 1 Cavi parte post. GD.
D.V.N. 2012
Call
Location: 24 Prev | Next Part: 258-80-600 *Qty: 1 Cavi parte post. GD.
F.V.N. 2037
Call
Location: 25 Prev | Next Part: 257-80-604 *Qty: 1 Assieme cavi fanaleria posteriore
F.V.N. 2011
Call
Location: 25 Prev | Next Part: 257-80-604 *Qty: 1 Assieme cavi fanaleria posteriore
D.V.N. 2012
Call
Location: 26 Prev | Next Part: 257-80-642 *Qty: 1 Assieme cavi per luci targa Call
Location: 27 Prev | Next Part: 257-80-646 *Qty: 1 Cavo altoparlante D. Call
Location: 28 Prev | Next Part: 257-80-647 *Qty: 1 Cavo altoparlante S. Call
Location: 35 Prev | Next Part: 257-80-990 *Qty: 1 Cavo positive per collegam. batteria a motorino avviamento Call
Location: 36 Prev | Next Part: 258-80-990 *Qty: 1 Cavo positive per collegam. batteria a motorino avviamento G.D. Call
Location: 37 Prev | Next Part: 257-80-996 *Qty: 1 Cavo negative per collegam. batteria ad accumulator! Call

* Quantity shown indicates the number of pieces used in the diagram.
