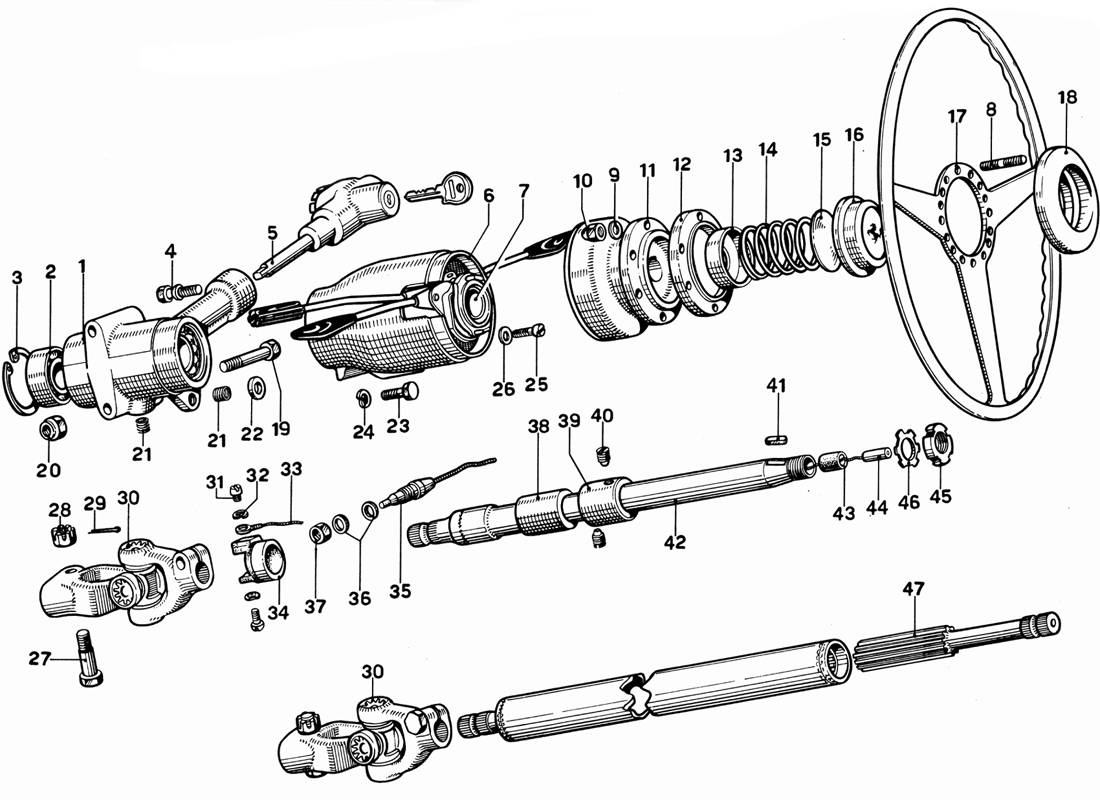

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 740289 *Qty: 1 Assieme tubo guida Call
Location: 1 Prev | Next Part: 1454 *Qty: 1 Complessivo guida Call
Location: 1 Prev | Next Part: 740273 *Qty: 1 Support Call
Location: 2 Prev | Next Part: 2 APPL 25 *Qty: 2 Cuscinetto per tubo guida Call
Location: 3 Prev | Next Part: AA 52 i *Qty: 2 Seeger Ring Call
Location: 4 Prev | Next Part: A 0664 *Qty: 1 Bolt Call
Location: 5 Prev | Next Part: 740276 *Qty: 1 Corpo antifurto Call
Location: 6 Prev | Next Part: 740272 *Qty: 1 Canotto per commutatori Call
Location: 7 Prev | Next Part: 740293 *Qty: 1 Complessivo deviosgancio Call
Location: 8 Prev | Next Part: PI *Qty: 6 Stud Call
Location: 9 Prev | Next Part: RC6 *Qty: 6 Washer Call
Location: 10 Prev | Next Part: 106 MA *Qty: 6 Nut Call
Location: 11 Prev | Next Part: 740075 *Qty: 1 Mozzo volante guida Call
Location: 12 Prev | Next Part: 740120 *Qty: 11 Spacer Call
Location: 13 Prev | Next Part: 74176 *Qty: 1 Scodellino per pulsante Call
Location: 14 Prev | Next Part: 75051 *Qty: 1 Spring $42.91
Location: 15 Prev | Next Part: 75094 *Qty: 1 Contatto per avvisatore $29.24
Location: 16 Prev | Next Part: 75044 *Qty: 1 Pulsante con stemma Call
Location: 17 Prev | Next Part: 740300 *Qty: 1 Volante guida Call
Location: 18 Prev | Next Part: 740299 *Qty: 1 Cover Call
Location: 19 Prev | Next Part: 8x80UNI573 *Qty: 2 Bolt Call
Location: 20 Prev | Next Part: 108 MB *Qty: 2 Nut Call
Location: 21 Prev | Next Part: 6 x 100 x *Qty: 2 Bush Call
Location: 22 Prev | Next Part: 20181 *Qty: 1 Spessore per canotto Superseded
Location: 24 Prev | Next Part: REG6 *Qty: 1 Washer Call
Location: 25 Prev | Next Part: 3 VR5x22 *Qty: 2 Screw Call
Location: 26 Prev | Next Part: RC 5 *Qty: 2 Washer Call
Location: 27 Prev | Next Part: 7470030143 *Qty: 4 Bolt Call
Location: 28 Prev | Next Part: 0770024001 *Qty: 4 Nut Call
Location: 28 Prev | Next Part: 6xix20UNI5 *Qty: 1 Screw Call
Location: 29 Prev | Next Part: C 1 *Qty: 4 Split Pin Call
Location: 30 Prev | Next Part: 7315.410.1 *Qty: 2 Giunto a snodo completo di bulloni Call
Location: 31 Prev | Next Part: 4 x 12 *Qty: 2 Screw Call
Location: 32 Prev | Next Part: REG 4 *Qty: 2 Washer Call
Location: 33 Prev | Next Part: - *Qty: 1 Cavo corrente Call
Location: 34 Prev | Next Part: 75110 *Qty: 1 Contatto per avvisatore Call
Location: 35 Prev | Next Part: CARBONIUM *Qty: 1 Carboncino e molla Call
Location: 36 Prev | Next Part: 94828 *Qty: 2 Washer Superseded
Location: 37 Prev | Next Part: 94829 *Qty: 1 Nut Call
Location: 38 Prev | Next Part: 740275 *Qty: 1 Distanziale sul tubo guida Call
Location: 39 Prev | Next Part: 740009 *Qty: 1 Canotto Call
Location: 40 Prev | Next Part: 94835 *Qty: 2 Grano per canotto Call
Location: 41 Prev | Next Part: 94628 *Qty: 1 KEY Superseded
Location: 42 Prev | Next Part: 740274 *Qty: 1 EstremitA tubo guida Call
Location: 43 Prev | Next Part: 74190 *Qty: 1 Ring Call
Location: 44 Prev | Next Part: 740121 *Qty: 1 Bush Call
Location: 45 Prev | Next Part: 74172 *Qty: 1 Ring Nut $8.36
Location: 46 Prev | Next Part: 74174 *Qty: 1 PLATE Call
Location: 47 Prev | Next Part: 740290 *Qty: 1 Pivot Call

* Quantity shown indicates the number of pieces used in the diagram.
