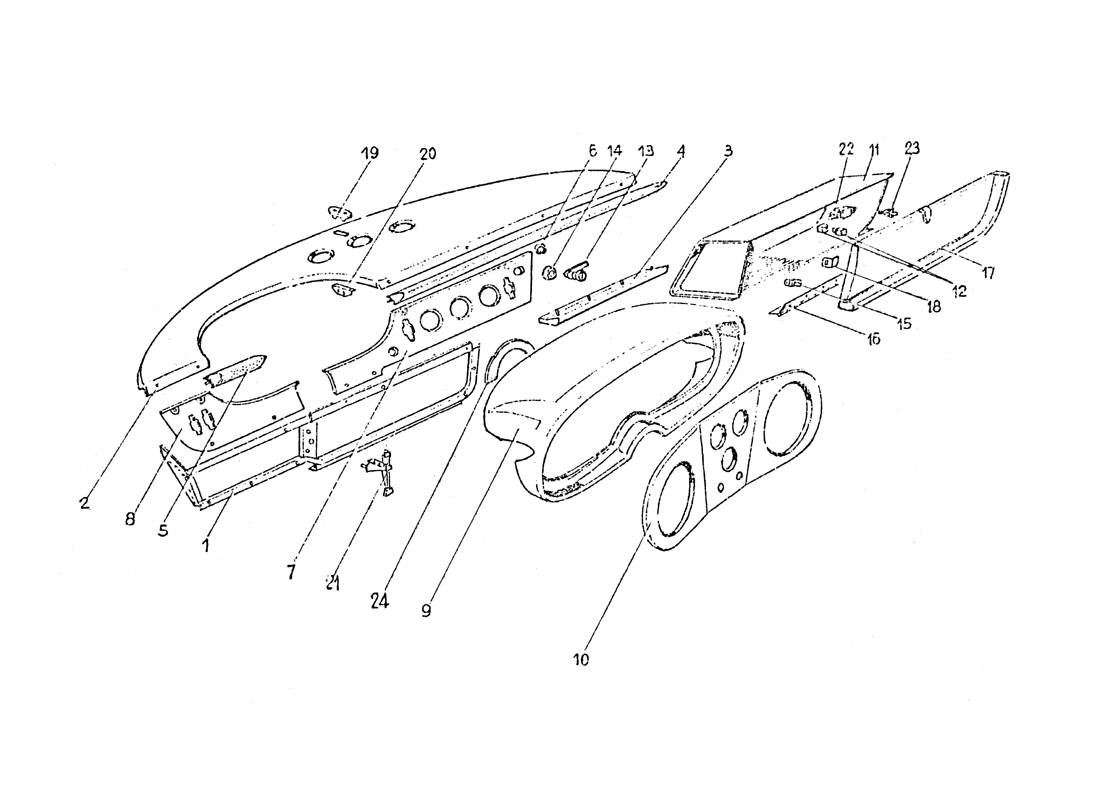

GRUPPO PLANCIA PORTA - STRUMENTI

Go to Split View

GRUPPO PLANCIA PORTA - STRUMENTI

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 2527600409 *Qty: 1 Parte verticale plancia rivestita
SOLO G.D.
Call
Location: 1 Prev | Next Part: 2517600409 *Qty: 1 Parte verticale plancia rivestita
SOLO G.S.
Call
Location: 2 Prev | Next Part: 2527600800 *Qty: 1 Parte superiore plancia cpl.
SOLO G.D. - FVN.30
Call
Location: 2 Prev | Next Part: 2517600800 *Qty: 1 Parte superiore plancia cpl.
SOLO G.S. - FVN.350
Call
Location: 3 Prev | Next Part: 2517601800 *Qty: 1 Imbottitura inferiore plancia cpl.
SOLO G.S.
Call
Location: 3 Prev | Next Part: 2527601800 *Qty: 1 Imbottitura inferiore plancia cpl.
SOLO G.D.
Call
Location: 4 Prev | Next Part: 2527609000 *Qty: 1 Imbottitura frontale superiore D plancia
SOLO G.D.
Call
Location: 4 Prev | Next Part: 2517609000 *Qty: 1 Imbottitura frontale superiore D plancia
SOLO G.S.
Call
Location: 5 Prev | Next Part: 2517609100 *Qty: 1 Imbottitura frontale superiore S plancia
SOLO G.S.
Call
Location: 5 Prev | Next Part: 2527609100 *Qty: 1 Imbottitura frontale superiore S plancia
SOLO G.D.
Call
Location: 6 Prev | Next Part: 1443412801 *Qty: 1 Ghiera per blocchetto cassetto plancia Call
Location: 7 Prev | Next Part: 2527620000 *Qty: 1 Legno centrale parte verticale plancia
SOLO G.D.
Call
Location: 7 Prev | Next Part: 2517620000 *Qty: 1 Legno centrale parte verticale plancia
SOLO G.S.
Call
Location: 8 Prev | Next Part: 2527620100 *Qty: 1 Legno laterale S parte vert.plancia
SOLO G.D.
Call
Location: 8 Prev | Next Part: 2517620100 *Qty: 1 Legno laterale S parte vert.plancia
SOLO G.S.
Call
Location: 9 Prev | Next Part: 2527630200 *Qty: 1 Cupolotto plancia cpl.
SOLO G.D.
Call
Location: 9 Prev | Next Part: 2517630200 *Qty: 1 Cupolotto plancia cpl.
SOLO G.S.
Call
Location: 10 Prev | Next Part: 2517633000 *Qty: 1 Parte verticale cupolotto plancia Call
Location: 11 Prev | Next Part: 2517680400 *Qty: 1 Cassetto plancia cpl.
SOLO G.S.
Call
Location: 11 Prev | Next Part: 2527680400 *Qty: 1 Caasetto plancia cpl.
SOLO G.D.
Call
Location: 12 Prev | Next Part: 2517683402 *Qty: 1 Dispositivo bloccaggio centr.sport.plancia Call
Location: 13 Prev | Next Part: 2517684002 *Qty: 1 Blocchetto per cassetto plancia Call
Location: 14 Prev | Next Part: 2517684600 *Qty: 1 Distanziale per blocchetto cass.plancia Call
Location: 15 Prev | Next Part: 2517686806 *Qty: 1 Sopportino per pulsante luce cass. Plancia Call
Location: 16 Prev | Next Part: 2517687006 *Qty: 1 Cerniera cassetto plancia Call
Location: 17 Prev | Next Part: 2527688800 *Qty: 1 Sportello cassetto plancia cpl.
SOLO G.D.
Call
Location: 17 Prev | Next Part: 2517688800 *Qty: 1 Sportello cassetto plancia cpl.
SOLO G.S.
Call
Location: 18 Prev | Next Part: 2517689206 *Qty: 1 Scontrino serratura cassetto plancia Call
Location: 19 Prev | Next Part: 2517614806 *Qty: 1 Mostrina per comando diffusore centrale plancia Call
Location: 20 Prev | Next Part: 2517621801 *Qty: 1 Bracket / Support Call
Location: 21 Prev | Next Part: 2527655101 *Qty: 1 Complessivo comando starter
solo G.D.
Call
Location: 21 Prev | Next Part: 2517655001 *Qty: 1 Complessivo comando starter
SOLO G.S.
Call
Location: 22 Prev | Next Part: 2418081400 *Qty: 1 Plafoniera illuminaz.cassetto planc. Call
Location: 23 Prev | Next Part: 8028081600 *Qty: 1 Interruttore per illuminaz Call
Location: 24 Prev | Next Part: 2517618800 *Qty: 1 Guerniz. Vano piantone guida Call
Location: 25 Prev | Next Part: 2517606000 *Qty: 1 Sopporto per diffuori rotanti
DVN.351
Call
Location: 26 Prev | Next Part: 2527600810 *Qty: 1 Parte superiore plancia cpl.
solo G.D. - DVN.352
Call
Location: 26 Prev | Next Part: 2517600810 *Qty: 1 Parte sup.plancia cpl.
solo G.S. - DVN.351
Call

* Quantity shown indicates the number of pieces used in the diagram.
