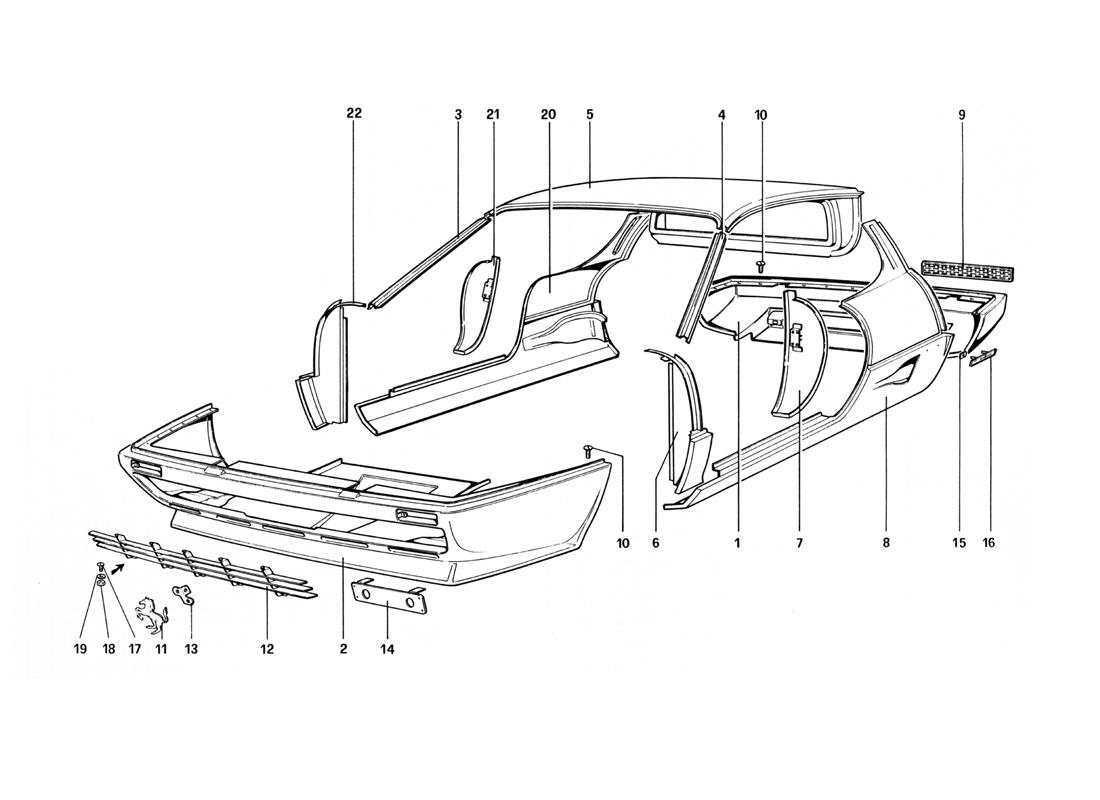

BODY SHELL - OUTER ELEMENTS

Go to Split View

BODY SHELL - OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60739900 *Qty: 1 Rivestimento post. con griglia Call
Location: 1 Prev | Next Part: 60724900 *Qty: 1 Rivestimento post. Superseded
Location: 2 Prev | Next Part: 60851400 *Qty: 1 Rivestimento ant. Superseded
Location: 2 Prev | Next Part: 61041400 *Qty: 1 Rivestimento int. Superseded
Location: 3 Prev | Next Part: 50354406 *Qty: 1 Rivestimento montante Dx. $212.12
Location: 4 Prev | Next Part: 50354505 *Qty: 1 Rivestimento montante Sx. $163.46
Location: 5 Prev | Next Part: 50077908 *Qty: 1 Rivestimento padiglione e lunotto $3,932.46
Location: 6 Prev | Next Part: 50003102 *Qty: 1 Rivestimento montante cerniere Sx. $274.32
Location: 7 Prev | Next Part: 50402502 *Qty: 1 Rivestimento montante post. porta $69.97
Location: 8 Prev | Next Part: 60738200 *Qty: 1 Rivestimento Sx. $3,189.91
Location: 9 Prev | Next Part: 50316603 *Qty: 1 Rete per rivestimento post $202.39
Location: 10 Prev | Next Part: 10902211 *Qty: 27 Vite Call
Location: 11 Prev | Next Part: 61026600 *Qty: 1 Cavallino Superseded
Location: 11 Prev | Next Part: 50200203 *Qty: 1 Cavallino Call
Location: 12 Prev | Next Part: 60854000 *Qty: 1 Griglia radiatore $637.43
Location: 13 Prev | Next Part: 50371509 *Qty: 1 Staffa fiss. cavallino $35.77
Location: 14 Prev | Next Part: 20108205 *Qty: 1 Portatarga ant. $70.79
Location: 15 Prev | Next Part: 20043204 *Qty: 2 Molletta Call
Location: 16 Prev | Next Part: 20043105 *Qty: 1 Fregio Pininfarina $109.35
Location: 17 Prev | Next Part: 50097302 *Qty: 18 Vite $1.64
Location: 18 Prev | Next Part: 30058804 *Qty: 18 Dado Call
Location: 19 Prev | Next Part: 20159109 *Qty: 18 Rondella $0.90
Location: 20 Prev | Next Part: 60738100 *Qty: 1 Rivestimento Dx. $3,189.91
Location: 21 Prev | Next Part: 50402403 *Qty: 1 Rivestimento montante post. porta $69.97
Location: 22 Prev | Next Part: 50003003 *Qty: 1 Rivestimento montante cerniere Dx. $266.00

* Quantity shown indicates the number of pieces used in the diagram.
