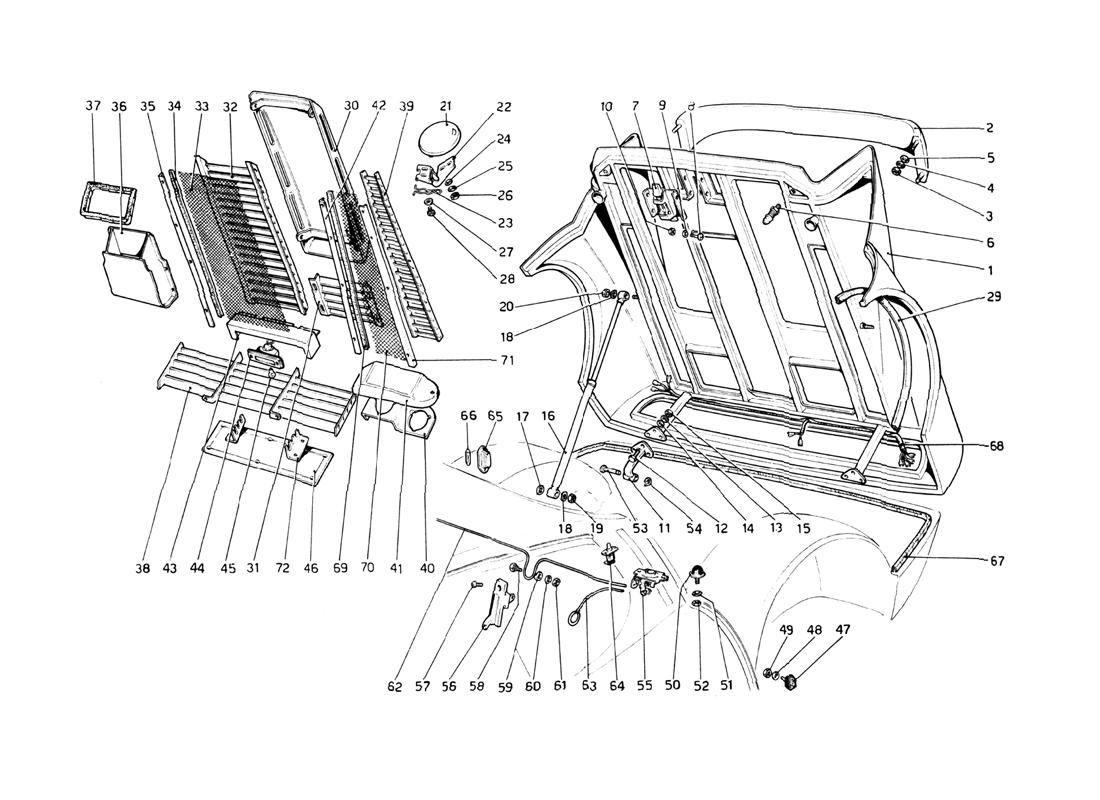

REAR BONNET

Go to Split View

REAR BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50350305 *Qty: 1 Cofano motore Superseded
Location: 2 Prev | Next Part: 50048701 *Qty: 1 Alettone
Non vale per D
Superseded
Location: 2 Prev | Next Part: 50131705 *Qty: 1 Alettone
Vale per D
$623.36
Location: 3 Prev | Next Part: 16100811 *Qty: 4 Dado Superseded
Location: 4 Prev | Next Part: 10615670 *Qty: 4 Rondella elastica $0.90
Location: 5 Prev | Next Part: 12642001 *Qty: 4 Rondella $0.90
Location: 6 Prev | Next Part: 50035708 *Qty: 2 Perno Call
Location: 7 Prev | Next Part: 50150408 *Qty: 1 Serratura di sicurezza $457.60
Location: 8 Prev | Next Part: 20148201 *Qty: 4 Vite Call
Location: 9 Prev | Next Part: 10615370 *Qty: 4 Rondella $0.90
Location: 10 Prev | Next Part: 15893411 *Qty: 4 Dado Call
Location: 11 Prev | Next Part: 50024801 *Qty: 2 Cerniera Superseded
Location: 12 Prev | Next Part: 16043211 *Qty: 1 Vite $0.90
Location: 13 Prev | Next Part: 10519621 *Qty: 1 Rondella $0.90
Location: 14 Prev | Next Part: 10516670 *Qty: 1 Rondella spaccata $0.90
Location: 15 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 16 Prev | Next Part: 50014604 *Qty: 2 Ammortizzatore Superseded
Location: 17 Prev | Next Part: 30166201 *Qty: 2 Rondella Call
Location: 18 Prev | Next Part: 20149100 *Qty: 4 Rondella Call
Location: 19 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 20 Prev | Next Part: 16104111 *Qty: 2 Dado Superseded
Location: 21 Prev | Next Part: 50085604 *Qty: 1 Coperchio bocchettone benzina $124.21
Location: 22 Prev | Next Part: 50085505 *Qty: 1 Cerniera $127.49
Location: 23 Prev | Next Part: 50043405 *Qty: 1 Molla $2.07
Location: 24 Prev | Next Part: 10519200 *Qty: 2 Rondella Call
Location: 25 Prev | Next Part: 10615270 *Qty: 2 Rondella elastica $0.90
Location: 26 Prev | Next Part: 10794011 *Qty: 2 Dado $0.90
Location: 27 Prev | Next Part: 10615370 *Qty: 2 Rondella $0.90
Location: 28 Prev | Next Part: 10977526 *Qty: 2 Vite Call
Location: 29 Prev | Next Part: 50091206 *Qty: 2 Guarnizione Call
Location: 30 Prev | Next Part: 50301001 *Qty: 2 Coperchio carburatori Superseded
Location: 31 Prev | Next Part: 50006600 *Qty: 1 Griglia Dx $1,019.10
Location: 31 Prev | Next Part: 50006709 *Qty: 1 Griglia Sx $1,200.03
Location: 32 Prev | Next Part: 50308402 *Qty: 1 Griglia centrale $1,174.36
Location: 33 Prev | Next Part: 50308501 *Qty: 1 Rete per griglia centrale Call
Location: 34 Prev | Next Part: 50308600 *Qty: 2 Guarnizione Call
Location: 35 Prev | Next Part: 50308709 *Qty: 2 Angolare $21.49
Location: 36 Prev | Next Part: 50150200 *Qty: 1 Condotto aria Dx con guarnizione $381.72
Location: 36 Prev | Next Part: 50150309 *Qty: 1 Condotto aria Sx con guarnizione $381.72
Location: 37 Prev | Next Part: 50150002 *Qty: 2 Guarnizione Call
Location: 38 Prev | Next Part: - *Qty: 1 Griglia posteriore Dx Call
Location: 38 Prev | Next Part: 50310408 *Qty: 1 Griglia posteriore Dx $1,610.94
Location: 39 Prev | Next Part: 50308808 *Qty: 1 Griglia posteriore Sx $805.47
Location: 39 Prev | Next Part: 50308907 *Qty: 1 Griglia posteriore Sx $805.47
Location: 40 Prev | Next Part: 50307305 *Qty: 1 Protezione Dx fanali $625.69
Location: 40 Prev | Next Part: 50307404 *Qty: 1 Protezione Sx fanali $625.69
Location: 41 Prev | Next Part: 50331800 *Qty: 1 Protezione termica Dx fanali $347.87
Location: 41 Prev | Next Part: 503311909 *Qty: 1 Protezione termica Sx fanali Call
Location: 42 Prev | Next Part: 50342005 *Qty: 1 Angolare int. griglia lat. Sx $135.64
Location: 42 Prev | Next Part: 50341908 *Qty: 1 Angolare int. griglia lat. Dx $135.64
Location: 43 Prev | Next Part: 50332006 *Qty: 1 Protezione fanali targa $412.52
Location: 44 Prev | Next Part: 50020700 *Qty: 2 Fanale targa $32.92
Location: 45 Prev | Next Part: 20083002 *Qty: 2 Lampada $1.57
Location: 46 Prev | Next Part: 50330802 *Qty: 1 Protezione targa $130.05
Location: 47 Prev | Next Part: 50042803 *Qty: 2 Tassello in gomma $18.45
Location: 48 Prev | Next Part: 12642801 *Qty: 2 Rondella $0.90
Location: 49 Prev | Next Part: 10794011 *Qty: 2 Dado $0.90
Location: 50 Prev | Next Part: 50051606 *Qty: 2 Tampone Call
Location: 51 Prev | Next Part: 10516670 *Qty: 2 Rondella $0.90
Location: 52 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 53 Prev | Next Part: 50025105 *Qty: 2 Perno $49.97
Location: 54 Prev | Next Part: 11065675 *Qty: 2 Seeger Superseded
Location: 55 Prev | Next Part: 40197808 *Qty: 1 Serratura Call
Location: 55 Prev | Next Part: 40068108 *Qty: 2 Serratura Superseded
Location: 56 Prev | Next Part: 50036508 *Qty: 1 Maniglia Call
Location: 57 Prev | Next Part: 13274006 *Qty: 2 Vite Call
Location: 58 Prev | Next Part: 50093509 *Qty: 1 Perno $8.87
Location: 59 Prev | Next Part: 50093400 *Qty: 1 Boccola $3.97
Location: 60 Prev | Next Part: 11196270 *Qty: 1 Rondella Call
Location: 61 Prev | Next Part: 10794011 *Qty: 1 Dado $0.90
Location: 62 Prev | Next Part: 50037308 *Qty: 1 Cavo $45.86
Location: 63 Prev | Next Part: 50036904 *Qty: 1 Cavo emergenza $15.12
Location: 64 Prev | Next Part: 20069605 *Qty: 1 Pulsante per plafoniera Superseded
Location: 65 Prev | Next Part: 50018803 *Qty: 2 Plafoniera $233.24
Location: 66 Prev | Next Part: 20083101 *Qty: 2 Lampada $2.20
Location: 67 Prev | Next Part: 50156207 *Qty: 1 Guarnizione $52.16
Location: 68 Prev | Next Part: 50150606 *Qty: 1 Cavo collegamento fanali post. $128.18
Location: 69 Prev | Next Part: 50318906 *Qty: 4 Guarnizione griglie laterali Call
Location: 70 Prev | Next Part: 50319201 *Qty: 2 Rete per griglie laterali $96.18
Location: 71 Prev | Next Part: 50319003 *Qty: 1 Angolare est. griglia lat. Dx $99.70
Location: 71 Prev | Next Part: 50319102 *Qty: 1 Angolare est. griglia lat. Sx $99.70
Location: 72 Prev | Next Part: 50331206 *Qty: 1 Staffa Dx fiss. protez. targa $35.02
Location: 72 Prev | Next Part: 50331305 *Qty: 1 Staffa Sx fiss. protez. targa $35.02

* Quantity shown indicates the number of pieces used in the diagram.
