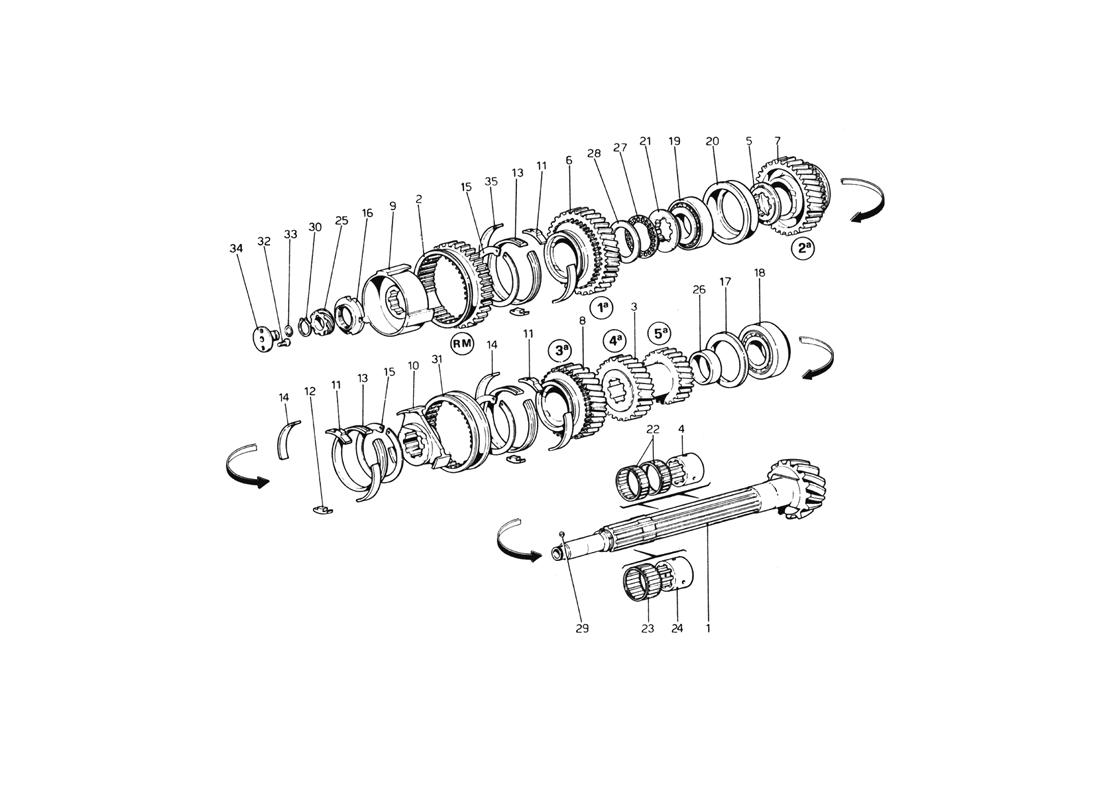

LAY SHAFT GEARS (UP TO CAR NO. 17535)

Go to Split View

LAY SHAFT GEARS (UP TO CAR NO. 17535)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 105632 *Qty: 1 Albero secondario Call
Location: 2 Prev | Next Part: 102971 *Qty: 1 Ingranaggio R.M. e manicotto comando 1? vel. e R.M. Call
Location: 3 Prev | Next Part: 106403 *Qty: 1 Ingranaggio 4? e 5? vel. Superseded
Location: 4 Prev | Next Part: 102974 *Qty: 2 Pista a rullinj per ingranaggi 2? e 3? vel $143.58
Location: 5 Prev | Next Part: 102980 *Qty: 1 Idem spessore mm. 6. 75 Superseded
Location: 5 Prev | Next Part: 102981 *Qty: 1 Idem spessore mm. 7 Superseded
Location: 5 Prev | Next Part: 102978 *Qty: 1 Idem spessore mm.6. 25 Superseded
Location: 5 Prev | Next Part: 102979 *Qty: 1 Idem spessore mm.6.50 Superseded
Location: 5 Prev | Next Part: 102977 *Qty: 1 Distanziale fra ingranaggio 2? vei. e cuscinetto - spessore mm. 6 Superseded
Location: 6 Prev | Next Part: 106407 *Qty: 1 Ingranaggio 1? velocity Superseded
Location: 7 Prev | Next Part: 106408 *Qty: 1 Ingranaggio 2? velocita Call
Location: 8 Prev | Next Part: 106409 *Qty: 1 Ingranaggio 3? velocita $6.77
Location: 9 Prev | Next Part: 102986 *Qty: 1 Nucleo di guida l? vel. e R.M. $581.33
Location: 10 Prev | Next Part: 102987 *Qty: 1 Nucleo di guida 2? e 3? velocita $681.74
Location: 11 Prev | Next Part: 100718 *Qty: 3 tassello per 1? - 2? e 3? velocita $189.97
Location: 12 Prev | Next Part: 100719 *Qty: 3 Settore arresto tassello Call
Location: 13 Prev | Next Part: 100720 *Qty: 3 Anello sincronizzatore $309.64
Location: 14 Prev | Next Part: 100721 *Qty: 4 Anelio di arresto per 2? e 3? vel. Call
Location: 15 Prev | Next Part: 100722 *Qty: 3 Anello di fermo $168.28
Location: 16 Prev | Next Part: 100729 *Qty: 1 Ghiera autobloccante Superseded
Location: 17 Prev | Next Part: 102991 *Qty: 1 Idem spessore mm .4 Call
Location: 17 Prev | Next Part: 102993 *Qty: 1 Idem spessore mm .4.5 Call
Location: 17 Prev | Next Part: 102995 *Qty: 1 Idem spessore mm. 5 Call
Location: 17 Prev | Next Part: 102992 *Qty: 1 Idem spessore mm.4.25 Call
Location: 17 Prev | Next Part: 102994 *Qty: 1 Idem spessore mm.4.75 Call
Location: 17 Prev | Next Part: 102990 *Qty: 1 Distanziale per cuscinetto pig none spessore mm.4.457 Call
Location: 18 Prev | Next Part: 101636 *Qty: 1 Cuscinetto posteriore $214.46
Location: 19 Prev | Next Part: 103031 *Qty: 1 Cuscinetto anteriore $238.83
Location: 20 Prev | Next Part: 102996 *Qty: 1 Porta cuscinetto Call
Location: 21 Prev | Next Part: 104860 *Qty: 1 Distanziale fra 1? vel.e cuscinetto Call
Location: 22 Prev | Next Part: 103032 *Qty: 4 Gabbia a ruiini per ingranaggi 2? e 3? vel $52.64
Location: 23 Prev | Next Part: 104712 *Qty: 1 Gabbia a rullini per inqranaggio 1? vel $31.05
Location: 24 Prev | Next Part: 104849 *Qty: 1 Pista per gabbla a ruttni iigranaggio 1? vel $189.58
Location: 26 Prev | Next Part: 106833 *Qty: 1 Vite senza fine per contaKm. Call
Location: 27 Prev | Next Part: 106299 *Qty: 1 Gabbia a rullini assiae Call
Location: 28 Prev | Next Part: 106111 *Qty: 1 Distanziale Call
Location: 28 Prev | Next Part: 106300 *Qty: 1 Rondella per gabbia a rullini Call
Location: 29 Prev | Next Part: 106326 *Qty: 1 Sfera di trascinamento Call
Location: 30 Prev | Next Part: 11067076 *Qty: 1 Anetlo seeger $0.90
Location: 31 Prev | Next Part: 104973 *Qty: 1 Manicotto di comando per 2? e 3? vel. Call
Location: 32 Prev | Next Part: 13312911 *Qty: 1 Vite testa svasata $0.90
Location: 33 Prev | Next Part: 100317 *Qty: 1 Anello di tenuta $1.51
Location: 34 Prev | Next Part: 106322 *Qty: 1 Flangia sul condotto olio sul coperchio anteriore Superseded
Location: 35 Prev | Next Part: 103693 *Qty: 2 Anello di arresto 1? velocita Call

* Quantity shown indicates the number of pieces used in the diagram.
