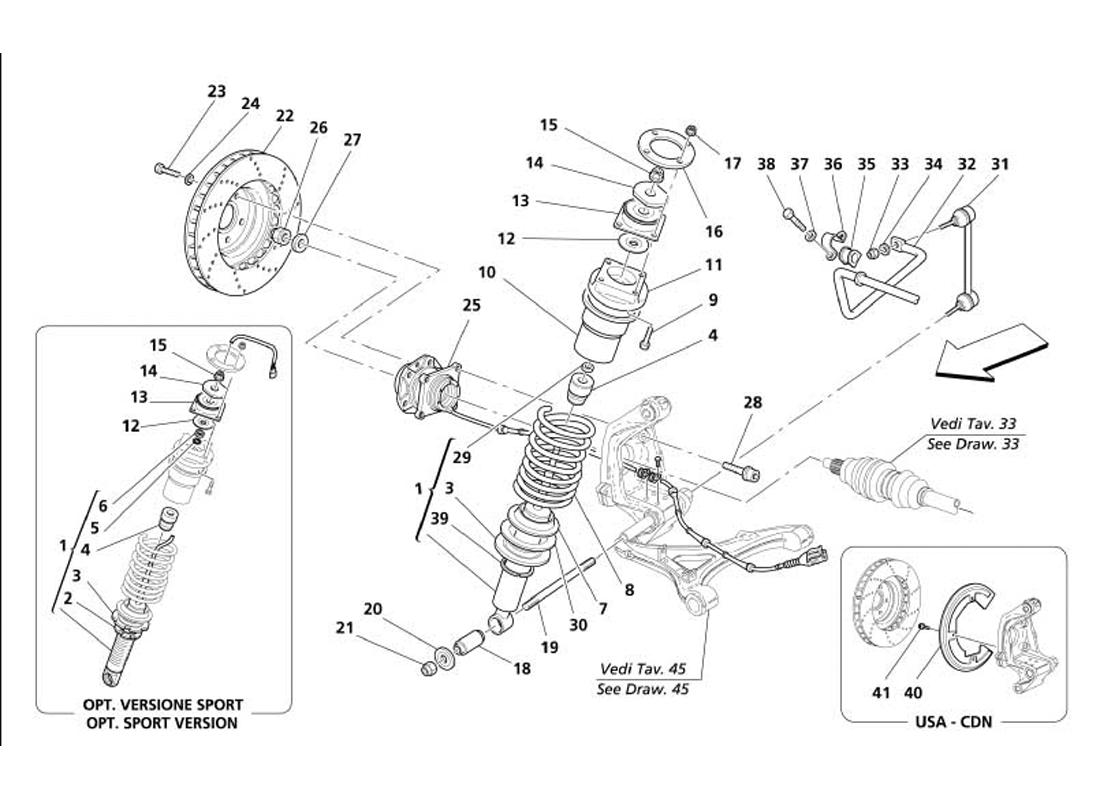

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 207825 *Qty: 2 REAR SHOCK ABSORBER
Standard
$398.59
Location: 1 Prev | Next Part: 197912 *Qty: 2 REAR SHOCK ABSORBER
Optional - Version sport
$1,214.75
Location: 2 Prev | Next Part: 174726 *Qty: 2 RING NUT
Optional - Version sport
Call
Location: 3 Prev | Next Part: 386601380 *Qty: 2 LOWER SPACER
Standard
$87.31
Location: 3 Prev | Next Part: 183020 *Qty: 2 LOWER SPACER
Optional - Version sport
$563.53
Location: 4 Prev | Next Part: 197897 *Qty: 2 SHOCK ABSORBER PAD
Optional - Version sport
$153.40
Location: 4 Prev | Next Part: 163599 *Qty: 2 SHOCK ABSORBER PAD
Standard
$88.97
Location: 5 Prev | Next Part: 183594 *Qty: 2 FLEXIBLE RING
Optional - Version sport
$29.51
Location: 6 Prev | Next Part: 183595 *Qty: 2 BUSHING
Optional - Version sport
$44.00
Location: 7 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $13.58
Location: 8 Prev | Next Part: 197896 *Qty: 2 SUSPENSION SPRING $106.29
Location: 9 Prev | Next Part: 16044324 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 188995 *Qty: 2 UPPER SPACER $10.78
Location: 11 Prev | Next Part: 198056 *Qty: 2 SPRING SUPPORT SPACER $13.20
Location: 12 Prev | Next Part: 193235 *Qty: 2 WASHER
Standard
$2.07
Location: 12 Prev | Next Part: 183016 *Qty: 2 WASHER
Optional - Version sport
$13.20
Location: 13 Prev | Next Part: 386600109 *Qty: 2 HYPERBLOCK
Standard
$72.47
Location: 13 Prev | Next Part: 183015 *Qty: 2 HYPERBLOCK
Optional - Version sport
$59.01
Location: 14 Prev | Next Part: 189110 *Qty: 2 WASHER
Optional - Version sport
$3.28
Location: 14 Prev | Next Part: 387000340 *Qty: 2 WASHER
Standard
$3.36
Location: 15 Prev | Next Part: 137826 *Qty: 2 NUT
Standard
$3.70
Location: 15 Prev | Next Part: 183417 *Qty: 2 NUT
Optional - Version sport
$2.33
Location: 16 Prev | Next Part: 198719 *Qty: 2 SPACER FOR SHOCK ABSORBER
Thickness mm. 4
$8.71
Location: 16 Prev | Next Part: 191055 *Qty: 2 SPACER FOR SHOCK ABSORBER
Thickness mm. 6
$35.89
Location: 17 Prev | Next Part: 14058521 *Qty: 8 NUT $2.07
Location: 18 Prev | Next Part: 194971 *Qty: 2 BALL JOINT $15.83
Location: 19 Prev | Next Part: 13531634 *Qty: 2 STUD $4.68
Location: 20 Prev | Next Part: 387000329 *Qty: 2 CUP $4.57
Location: 21 Prev | Next Part: 14048825 *Qty: 2 NUT $5.95
Location: 22 Prev | Next Part: 192996 *Qty: 2 REAR BRAKE DISC Call
Location: 23 Prev | Next Part: 16043421 *Qty: 4 SCREW Superseded
Location: 24 Prev | Next Part: 10571779 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 197064 *Qty: 2 BEARING FOR WHEEL $646.35
Location: 26 Prev | Next Part: 183320 *Qty: 2 NUT $5.61
Location: 27 Prev | Next Part: 196577 *Qty: 2 WASHER $4.45
Location: 28 Prev | Next Part: 190723 *Qty: 8 SCREW $10.86
Location: 29 Prev | Next Part: 386600329 *Qty: 2 SPACER FOR PAD SUPPORT
Standard
$24.67
Location: 30 Prev | Next Part: 386601397 *Qty: 1 THICKNESS
MM. 4 - Standard
$5.52
Location: 30 Prev | Next Part: 386601382 *Qty: 1 THICKNESS
MM. 2 - Standard
$3.02
Location: 31 Prev | Next Part: 193729 *Qty: 2 SMALL LINK $75.19
Location: 32 Prev | Next Part: 194049 *Qty: 1 REAR ANTI-ROLL BAR $659.34
Location: 33 Prev | Next Part: 12575621 *Qty: 2 NUT Superseded
Location: 34 Prev | Next Part: 13550421 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 195916 *Qty: 2 RUBBER PAD $11.56
Location: 36 Prev | Next Part: 397050368 *Qty: 2 RETAINER $3.45
Location: 37 Prev | Next Part: 10571779 *Qty: 4 WASHER $0.90
Location: 38 Prev | Next Part: 16043321 *Qty: 4 SCREW $0.90
Location: 39 Prev | Next Part: 386601381 *Qty: 2 SPACER STOP RING
Standard
$5.09
Location: 40 Prev | Next Part: 193732 *Qty: 1 L.H. REAR BRAKE DISC SHIELD
Valid for USA and CDN
$61.60
Location: 40 Prev | Next Part: 193733 *Qty: 1 R.H. REAR BRAKE DISC SHIELD
Valid for USA and CDN
$57.46
Location: 41 Prev | Next Part: 193737 *Qty: 6 SCREW
Valid for USA and CDN
Call

* Quantity shown indicates the number of pieces used in the diagram.
