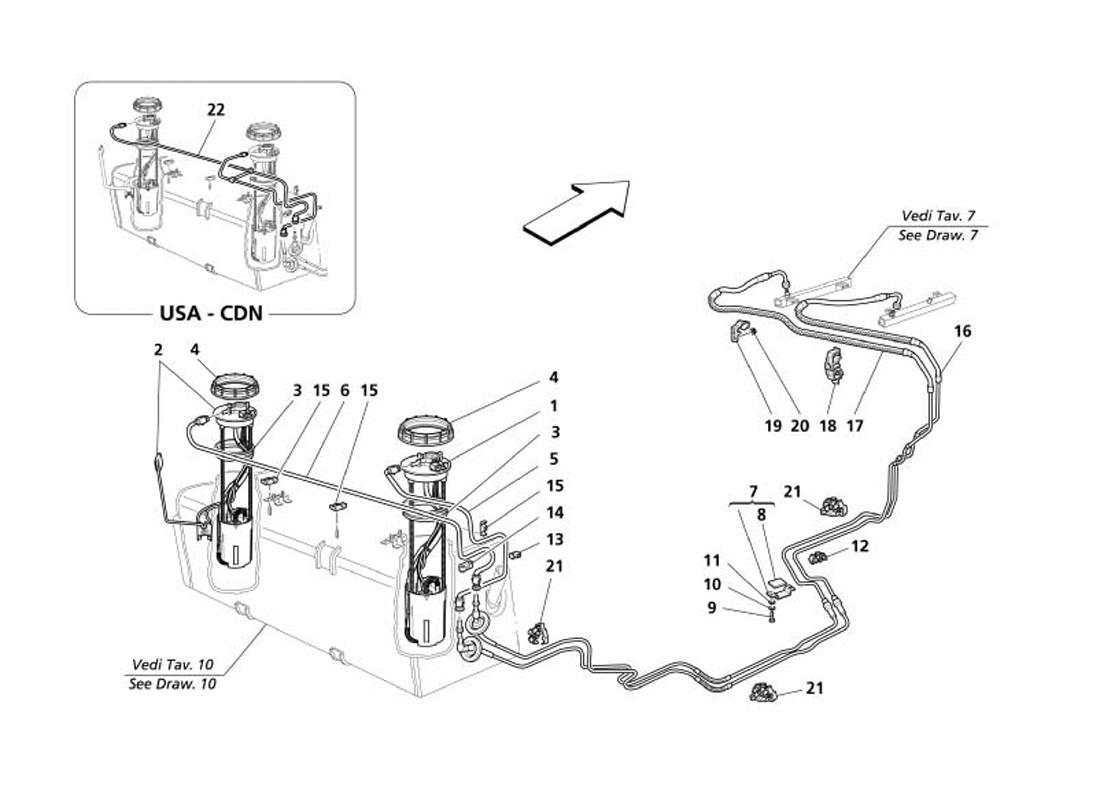

FUEL PUMP AND PIPES

Go to Split View

FUEL PUMP AND PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 181205 *Qty: 1 R.H. COMPLETE FUEL PUMP $351.47
Location: 2 Prev | Next Part: 181204 *Qty: 1 L.H. COMPLETE FUEL PUMP $378.95
Location: 3 Prev | Next Part: 181681 *Qty: 2 GASKET $18.81
Location: 4 Prev | Next Part: 181682 *Qty: 2 RING NUT $22.79
Location: 5 Prev | Next Part: 197655 *Qty: 1 R.H. FUEL DELIVERY TUBE
Not for USA and CDN
Call
Location: 6 Prev | Next Part: 197656 *Qty: 1 L.H. FUEL DELIVERY TUBE
Not for USA and CDN
Call
Location: 7 Prev | Next Part: 187464 *Qty: 1 PIPES PROTECTION BRACKET $11.99
Location: 8 Prev | Next Part: 387400402 *Qty: 1 GASKET $1.47
Location: 9 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 11181574 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 14447025 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 379200408 *Qty: 1 CLIP
(Quantity defined duringat assembly)
$1.04
Location: 13 Prev | Next Part: 389200406 *Qty: 1 CLIP $0.90
Location: 14 Prev | Next Part: 191047 *Qty: 1 CLIP $2.91
Location: 15 Prev | Next Part: 379200408 *Qty: 3 CLIP $1.04
Location: 16 Prev | Next Part: 194747 *Qty: 1 R.H. FUEL DELIVERY PIPE TO FLEXIBLE $115.88
Location: 17 Prev | Next Part: 194748 *Qty: 1 L.H. FUEL DELIVERY PIPE TO FLEXIBLE $105.07
Location: 18 Prev | Next Part: 195052 *Qty: 2 CLIP $1.12
Location: 19 Prev | Next Part: 159521 *Qty: 1 CLIP $2.04
Location: 20 Prev | Next Part: 14059111 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 190410 *Qty: 1 CLIP
(Quantity defined duringat assembly)
$2.59
Location: 22 Prev | Next Part: 193544 *Qty: 1 COMPLETE FUEL DELIVERY TUBE
Valid for USA and CDN
$454.72

* Quantity shown indicates the number of pieces used in the diagram.
