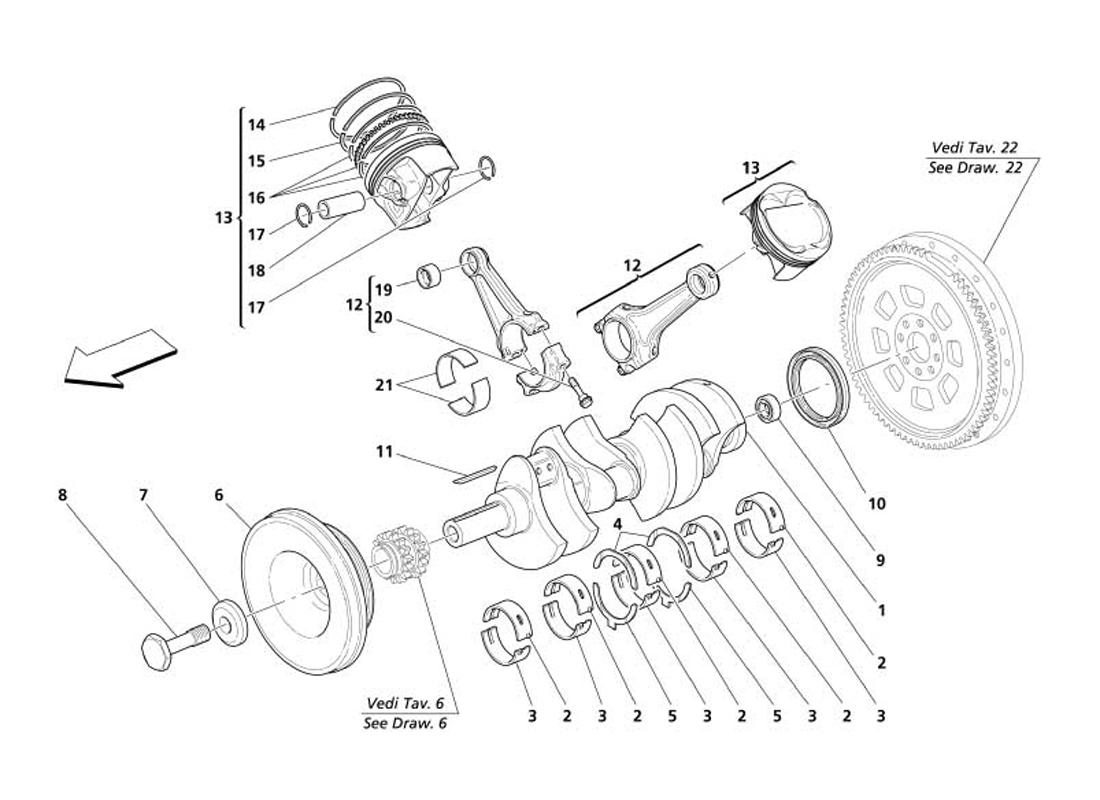

CRANKSHAFT CONRODS AND PISTONS

Go to Split View

CRANKSHAFT CONRODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 193169 *Qty: 1 CRANKSHAFT $2,809.52
Location: 1 Prev | Next Part: 193169 *Qty: 1 CRANKSHAFT $2,809.52
Location: 2 Prev | Next Part: 193000 *Qty: 5 UPPER HALF BEARING
Blue
Unavailable
Location: 2 Prev | Next Part: 193000 *Qty: 5 UPPER HALF BEARING
Blue
Unavailable
Location: 2 Prev | Next Part: 193001 *Qty: 5 UPPER HALF BEARING
Yellow
Unavailable
Location: 2 Prev | Next Part: 193001 *Qty: 5 UPPER HALF BEARING
Yellow
Unavailable
Location: 2 Prev | Next Part: 193002 *Qty: 5 UPPER HALF BEARING
Green - Standard
$23.55
Location: 2 Prev | Next Part: 193002 *Qty: 5 UPPER HALF BEARING
Green - Standard
$23.55
Location: 3 Prev | Next Part: 193003 *Qty: 5 LOWER HALF BEARING
Blue
Unavailable
Location: 3 Prev | Next Part: 193003 *Qty: 5 LOWER HALF BEARING
Blue
Unavailable
Location: 3 Prev | Next Part: 193004 *Qty: 5 LOWER HALF BEARING
Yellow
Unavailable
Location: 3 Prev | Next Part: 193004 *Qty: 5 LOWER HALF BEARING
Yellow
Unavailable
Location: 3 Prev | Next Part: 193005 *Qty: 5 LOWER HALF BEARING
Green - Standard
$18.03
Location: 3 Prev | Next Part: 193005 *Qty: 5 LOWER HALF BEARING
Green - Standard
$18.03
Location: 4 Prev | Next Part: 179541 *Qty: 2 UPPER SHIM
2nd Oversize
$74.37
Location: 4 Prev | Next Part: 179541 *Qty: 2 UPPER SHIM
2nd Oversize
$74.37
Location: 4 Prev | Next Part: 179540 *Qty: 2 UPPER SHIM
1st Oversize
$74.37
Location: 4 Prev | Next Part: 179540 *Qty: 2 UPPER SHIM
1st Oversize
$74.37
Location: 4 Prev | Next Part: 179539 *Qty: 2 UPPER SHIM
Standard
$306.24
Location: 4 Prev | Next Part: 179539 *Qty: 2 UPPER SHIM
Standard
$306.24
Location: 5 Prev | Next Part: 179538 *Qty: 2 LOWER SHIM
Standard
$38.82
Location: 5 Prev | Next Part: 179538 *Qty: 2 LOWER SHIM
Standard
$38.82
Location: 5 Prev | Next Part: 179537 *Qty: 2 LOWER SHIM
1st Oversize
$74.37
Location: 5 Prev | Next Part: 179537 *Qty: 2 LOWER SHIM
1st Oversize
$74.37
Location: 5 Prev | Next Part: 179536 *Qty: 2 LOWER SHIM
2nd Oversize
$74.37
Location: 5 Prev | Next Part: 179536 *Qty: 2 LOWER SHIM
2nd Oversize
$74.37
Location: 6 Prev | Next Part: 187469 *Qty: 1 TORSION DAMPER $2,955.68
Location: 6 Prev | Next Part: 187469 *Qty: 1 TORSION DAMPER $2,955.68
Location: 7 Prev | Next Part: 192106 *Qty: 1 WASHER $6.55
Location: 7 Prev | Next Part: 192106 *Qty: 1 WASHER $6.55
Location: 8 Prev | Next Part: 196216 *Qty: 1 SCREW FOR DAMPER FIXING $83.37
Location: 8 Prev | Next Part: 196216 *Qty: 1 SCREW FOR DAMPER FIXING $83.37
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING $29.75
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING $29.75
Location: 10 Prev | Next Part: 200323 *Qty: 1 SEAL RING
Supplied also in the crankcasegasket revision kit (cod. 980020004)
$46.81
Location: 10 Prev | Next Part: 200323 *Qty: 1 SEAL RING
Supplied also in the crankcasegasket revision kit (cod. 980020004)
$46.81
Location: 11 Prev | Next Part: 186201 *Qty: 1 KEY $1.08
Location: 11 Prev | Next Part: 186201 *Qty: 1 KEY $1.08
Location: 12 Prev | Next Part: 192402 *Qty: 8 COMPLETE CONNECTING ROD $433.61
Location: 12 Prev | Next Part: 192402 *Qty: 8 COMPLETE CONNECTING ROD $433.61
Location: 13 Prev | Next Part: 198412 *Qty: 4 LH PISTON WITH RINGS $326.42
Location: 13 Prev | Next Part: 198412 *Qty: 4 LH PISTON WITH RINGS $326.42
Location: 13 Prev | Next Part: 198410 *Qty: 4 RH PISTON WITH RINGS $326.42
Location: 13 Prev | Next Part: 198410 *Qty: 4 RH PISTON WITH RINGS $326.42
Location: 14 Prev | Next Part: 175612 *Qty: 8 SEAL RING
1st groove
$109.74
Location: 14 Prev | Next Part: 175612 *Qty: 8 SEAL RING
1st groove
$109.74
Location: 15 Prev | Next Part: 187201 *Qty: 8 SEAL RING
2nd groove
$31.23
Location: 15 Prev | Next Part: 187201 *Qty: 8 SEAL RING
2nd groove
$31.23
Location: 16 Prev | Next Part: 175614 *Qty: 8 OIL SCRAPING RING
3nd groove
$93.69
Location: 16 Prev | Next Part: 175614 *Qty: 8 OIL SCRAPING RING
3nd groove
$93.69
Location: 17 Prev | Next Part: 178890 *Qty: 16 STOP RING $5.35
Location: 17 Prev | Next Part: 178890 *Qty: 16 STOP RING $5.35
Location: 18 Prev | Next Part: 175367 *Qty: 8 PIN $67.40
Location: 18 Prev | Next Part: 175367 *Qty: 8 PIN $67.40
Location: 19 Prev | Next Part: 184909 *Qty: 8 BUSHING $37.94
Location: 19 Prev | Next Part: 184909 *Qty: 8 BUSHING $37.94
Location: 20 Prev | Next Part: 177159 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $49.39
Location: 20 Prev | Next Part: 177159 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $49.39
Location: 21 Prev | Next Part: 190265 *Qty: 16 CONNECTING ROD HALF BEARING
Yellow
$48.59
Location: 21 Prev | Next Part: 190265 *Qty: 16 CONNECTING ROD HALF BEARING
Yellow
$48.59
Location: 21 Prev | Next Part: 188520 *Qty: 16 CONNECTING ROD HALF BEARING
Brouwn
$7.63
Location: 21 Prev | Next Part: 188520 *Qty: 16 CONNECTING ROD HALF BEARING
Brouwn
$7.63
Location: 21 Prev | Next Part: 188521 *Qty: 16 CONNECTING ROD HALF BEARING
Green - Standard
$11.56
Location: 21 Prev | Next Part: 188521 *Qty: 16 CONNECTING ROD HALF BEARING
Green - Standard
$11.56

* Quantity shown indicates the number of pieces used in the diagram.
