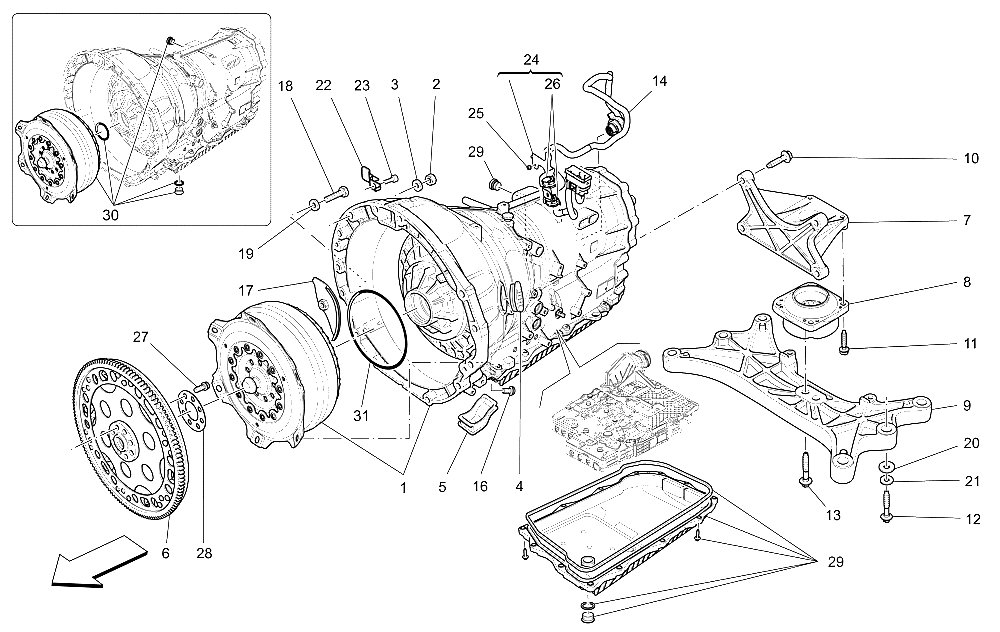

Gearbox Housings

Go to Split View

Gearbox Housings

Location Part # Quantity* Description Price Add To Cart
1 670031352 1 AUTOMATIC GEARBOX ASSEMBLY $14,000.91
2 14059421 10 NUT Unavailable
3 675000098 10 WASHER Unavailable
4 670003520 1 SIDE PLUG $5.35
5 670003521 1 LOWER PLUG $5.35
6 670003244 1 ENGINE FLYWHEEL ASSEMBLY $776.68
7 670001542 1 GEARBOX MOUNTING BRACKET $140.80
8 675000031 1 GEARBOX SIDE SUSPENSION BUSHING $17.95
9 670003953 1 GEARBOX MOUNTING CROSS MEMBER $207.87
10 675000120 4 SCREW $3.11
11 675000540 4 SCREW $2.33
13 675000145 2 SCREW $3.88
14 670007400 1 AUTOMATIC GEARBOX WIRING HARNESS $97.93
16 670005384 6 SCREW $2.33
17 670003684 1 CLOSURE PLATE $6.13
18 675000380 1 SCREW $1.55
19 675000378 1 WASHER Unavailable
20 675000247 6 WASHER $1.55
21 675000254 6 WASHER Unavailable
22 670005079 1 BRACKET $4.57
23 248334 1 SCREW $0.90
24 670005501 1 BRACKET ASSEMBLY $12.25
25 675000093 2 NUT Unavailable
26 675000500 2 CLIP Unavailable
27 670002932 8 SCREW $6.13
28 670002257 1 SHIM $4.57
29 673003178 1 OIL SUMP KIT $426.20
30 673003836 1 CONVERTER $2,890.72
31 980139948 1 O.R. GASKET $12.34

* Quantity shown indicates the number of pieces used in the diagram.
