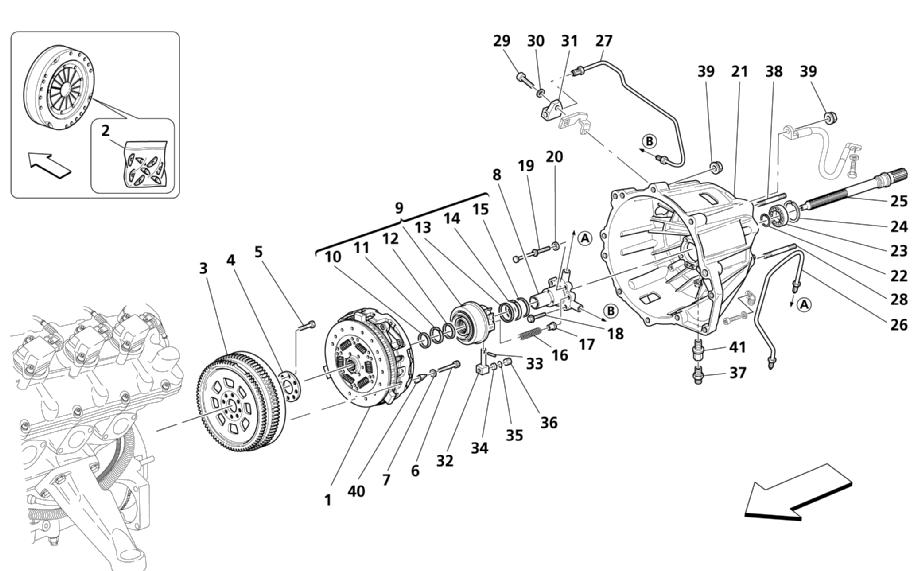

CLUTCH DISC AND HOUSING FOR F1 GEARBOX

Location Part # Quantity* Description Price Add To Cart
1 209824 1 COMPLETE CLUTCH (2006- LATER) Superseded
1 207700 1 COMPLETE CLUTCH (2005 ONLY) $2,243.15
2 980001166 1 CLUTCH BALANCING KIT Unavailable
3 230426 1 COMPLETE ENGINE FLYWHEEL $1,518.42
4 103876 1 FLYWHEEL FIXING WASHER $13.38
5 201755 8 SCREW -Valid after stock exhaustion of 103875- $1.46
5 103875 8 SCREW -Valid till stock exhaustion- Superseded
6 216771 9 SCREW $2.88
7 11194377 9 WASHER Unavailable
8 182952 1 BEARING SUPPORTING FLANGE $675.00
9 CRB360/430F1S 1 COMPLETE THRUST BEARING $693.00
10 181837 1 SCRAPER RING $25.86
11 170416 1 RING $3.27
12 181838 1 SEAL RING $25.86
13 181828 1 SEAL RING $31.04
14 170419 1 RING -As an alternative- $8.89
14 154507 1 RING $4.45
15 181836 1 SCRAPER RING $29.31
16 155207 2 PRELOAD SPRING $5.00
17 155206 2 SPACER FOR SPRING $4.24
18 16286224 2 SCREW $3.33
19 182955 2 STUD FOR END OF STROKE $34.49
20 12601274 2 WASHER $0.90
21 226170 1 CLUTCH HOUSING $2,985.12
22 144511 1 STOP RING Unavailable
23 174470 1 BEARING $57.83
24 182963 1 STOP RING Unavailable
25 182587 1 CLUTCH SHAFT $455.53
26 219574 1 CLUTCH OIL BLEED PIPE $145.51
27 219575 1 CLUTCH OIL DELIVERY TUBE $327.82
28 13547334 2 STUD $9.72
29 14305434 1 SCREW Unavailable
30 12604274 1 WASHER $0.90
31 139471 1 TWO-WAY UNION $48.29
32 166676 1 PIN $48.70
33 14158570 1 FLEXIBLE PIN $0.90
34 165676 1 MAGNET Superseded
35 165658 1 O.R. GASKET $10.80
36 167802 1 PLUG $57.83
37 121699 1 BLEEDER SCREW $59.36
38 13546334 6 STUD $1.20
39 156462 7 NUT $2.68
40 191337 0 BALANCING MASS -Grams 9- -As necessary- $80.39
40 191347 0 BALANCING MASS -Grams 19- -As necessary- $19.49
40 191336 0 BALANCING MASS -Grams 8- -As necessary- $101.50
40 191345 0 BALANCING MASS -Grams 17- -As necessary- $23.71
40 191334 0 BALANCING MASS -Grams 6- -As necessary- $36.54
40 191346 0 BALANCING MASS -Grams 18- -As necessary- $23.71
40 191333 0 BALANCING MASS -Grams 5- -As necessary- $18.51
40 191343 0 BALANCING MASS -Grams 15- -As necessary- $20.30
40 191335 0 BALANCING MASS -Grams 7- -As necessary- $43.20
40 191344 0 BALANCING MASS -Grams 16- -As necessary- $198.13
40 191331 0 BALANCING MASS -Grams 4- -As necessary- $65.93
40 191341 0 BALANCING MASS -Grams 13- -As necessary- $20.30
40 191330 0 BALANCING MASS -Grams 2- -As necessary- $70.16
40 191342 0 BALANCING MASS -Grams 14- -As necessary- $211.12
40 191329 0 BALANCING MASS -Grams 1- -As necessary- $55.05
40 191340 0 BALANCING MASS -Grams 12- -As necessary- $89.97
40 191338 0 BALANCING MASS $89.97
40 191395 0 BALANCING MASS -Grams 20- -As necessary- $198.13
40 191339 0 BALANCING MASS -Grams 11- -As necessary- $19.49
41 207451 1 UNION $269.58

* Quantity shown indicates the number of pieces used in the diagram.
