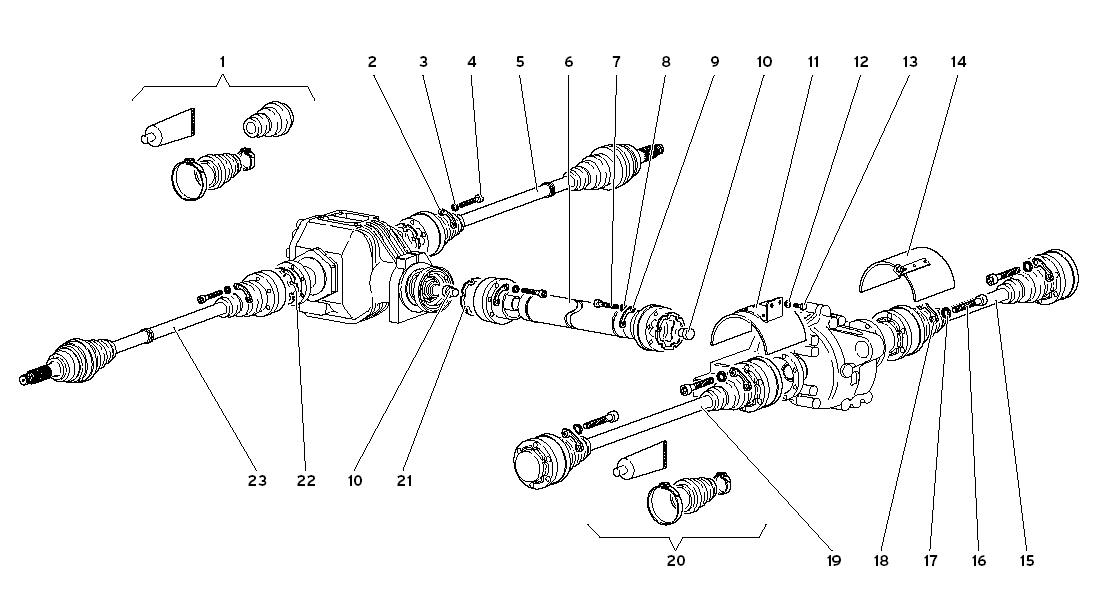

DRIVESHAFTS AND PROPELLER SHAFT A

Go to Split View

DRIVESHAFTS AND PROPELLER SHAFT A

Location Part # Quantity* Description Price Add To Cart
1 2534887 1 BOOT KIT (KIT CUFFIA) Unavailable
2 2534274 6 PLATE (PIASTRINA) Unavailable
3 8410810 12 WASHER (RONDELLA) Unavailable
4 8700802 12 SCREW (VITE) Unavailable
5 2534283 1 RIGHT HALF SHAFT (SEMIASSE DESTRO ANT.) Unavailable
6 2234277 1 PROPELLER SHAFT (ALBERO TRASMISSIONE) Unavailable
7 8700802 12 SCREW (VITE) Unavailable
8 8410810 12 WASHER (RONDELLA) Unavailable
9 2234273 6 PLATE (PIASTRINA) Unavailable
10 2334235 2 RUBBER PAD (TAMPONE GOMMA) Unavailable
11 2530901 1 SHIELD (PROTEZIONE) Unavailable
12 8410602 2 WASHER (RONDELLA) Unavailable
13 8700644 2 SCREW (VITE) Unavailable
14 2530896 1 SHIELD (PROTEZIONE) Unavailable
15 2534285 1 RIGHT HALF SHAFT (SEMIASSE DESTRO POST.) Unavailable
16 8701008 24 SCREW (VITE) Unavailable
17 8411011 24 WASHER (RONDELLA) Unavailable
18 2533290 12 PLATE (PIASTRINA) Unavailable
19 2534286 1 LEFT HALF SHAFT (SEMIASSE SINISTRO POST.) Unavailable
20 2537315 1 BOOT KIT (KIT CUFFIA) Unavailable
21 2234523 2 GASKET (GUARNIZIONE) Unavailable
22 2534666 2 GASKET (GUARNIZIONE) Unavailable
23 2534284 1 LEFT HALF SHAFT (SEMIASSE SINISTRO ANT.) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
