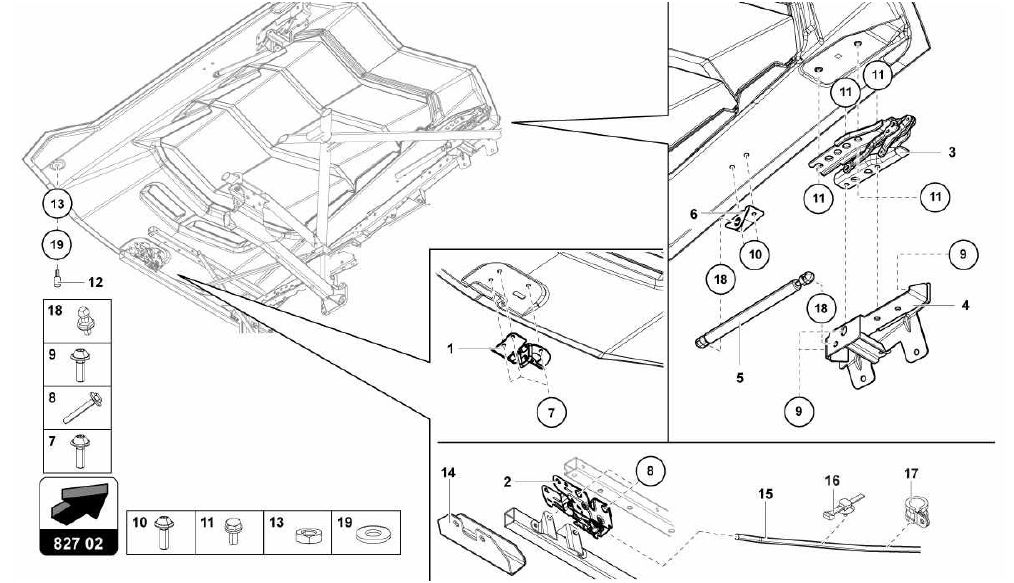

827.02.00-REAR HOOD

Go to Split View

827.02.00-REAR HOOD

Location Part # Quantity* Description Price Add To Cart
1 400827518B 1 CLOSURE PLATE Unavailable
2 1K1823509E 1 HOOD LOCK (WITH WIRING HARNESS) Unavailable
3 470827302A 1 HINGE, RH Unavailable
3 470827301A 1 HINGE, LH Unavailable
4 470827394C 1 RH BRACKET Unavailable
4 470827393D 1 LH BRACKET Unavailable
5 418827401 2 GAS FILLED SPRING Unavailable
6 470827524A 1 RH BRACKET Unavailable
6 470827523A 1 LH BRACKET Unavailable
7 N10558102 3 SCREW M6X18 Unavailable
8 N10553804 2 SCREW M6X45 Unavailable
9 N10558102 6 SCREW M6X18 Unavailable
10 N10558102 4 SCREW M6X18 Unavailable
11 N10049308 6 SCREW M8X20 Unavailable
12 400807333 2 PUFFER Unavailable
13 N01111611 2 NUT M6 Unavailable
14 470825099 1 PROTECTION Unavailable
15 470827222 1 HEATING PROTECTION SHEATH Unavailable
16 3W0971838 1 FASTENER Unavailable
17 5M0971838A 1 CLAMP Unavailable
18 6X0827439 4 JOURNAL Unavailable
19 N01152426 2 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
