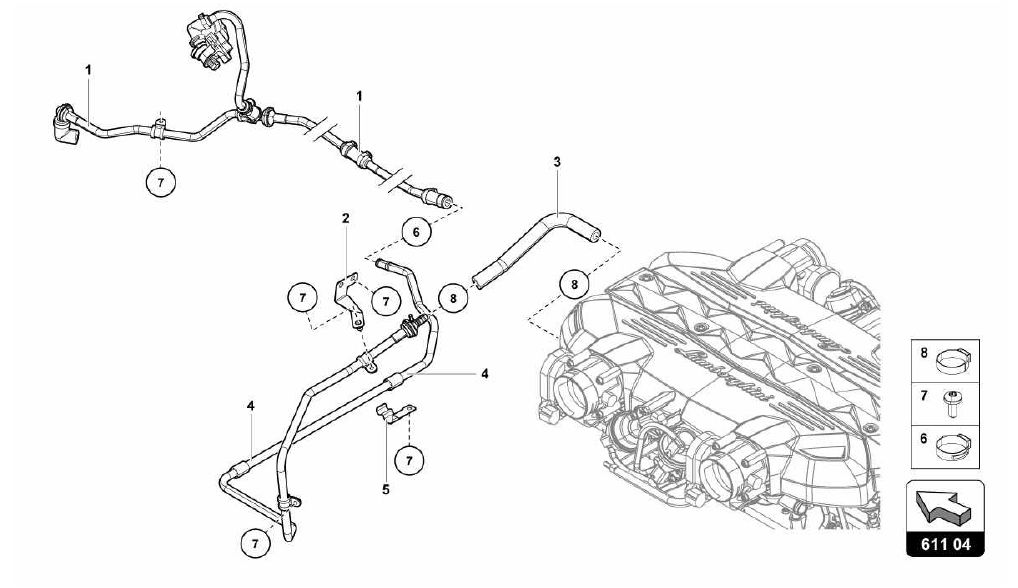

611.04.00-VACUUM HOSES FOR - BRAKE SERVO

Go to Split View

611.04.00-VACUUM HOSES FOR - BRAKE SERVO

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 471611931B *Qty: 1 PIPE $262.72
Location: 2 Prev | Next Part: 470810323C *Qty: 1 BRACKET $26.57
Location: 3 Prev | Next Part: 470611939A *Qty: 1 PIPE $33.06
Location: 4 Prev | Next Part: 470611938B *Qty: 1 PIPE $69.77
Location: 5 Prev | Next Part: 470813454 *Qty: 2 BRACKET $16.63
Location: 6 Prev | Next Part: N10201901 *Qty: 1 CLAMP $1.35
Location: 7 Prev | Next Part: N91096701 *Qty: 7 SCREW M6X16 $0.90
Location: 8 Prev | Next Part: N10255601 *Qty: 2 CLAMP $1.35

* Quantity shown indicates the number of pieces used in the diagram.
